3-44

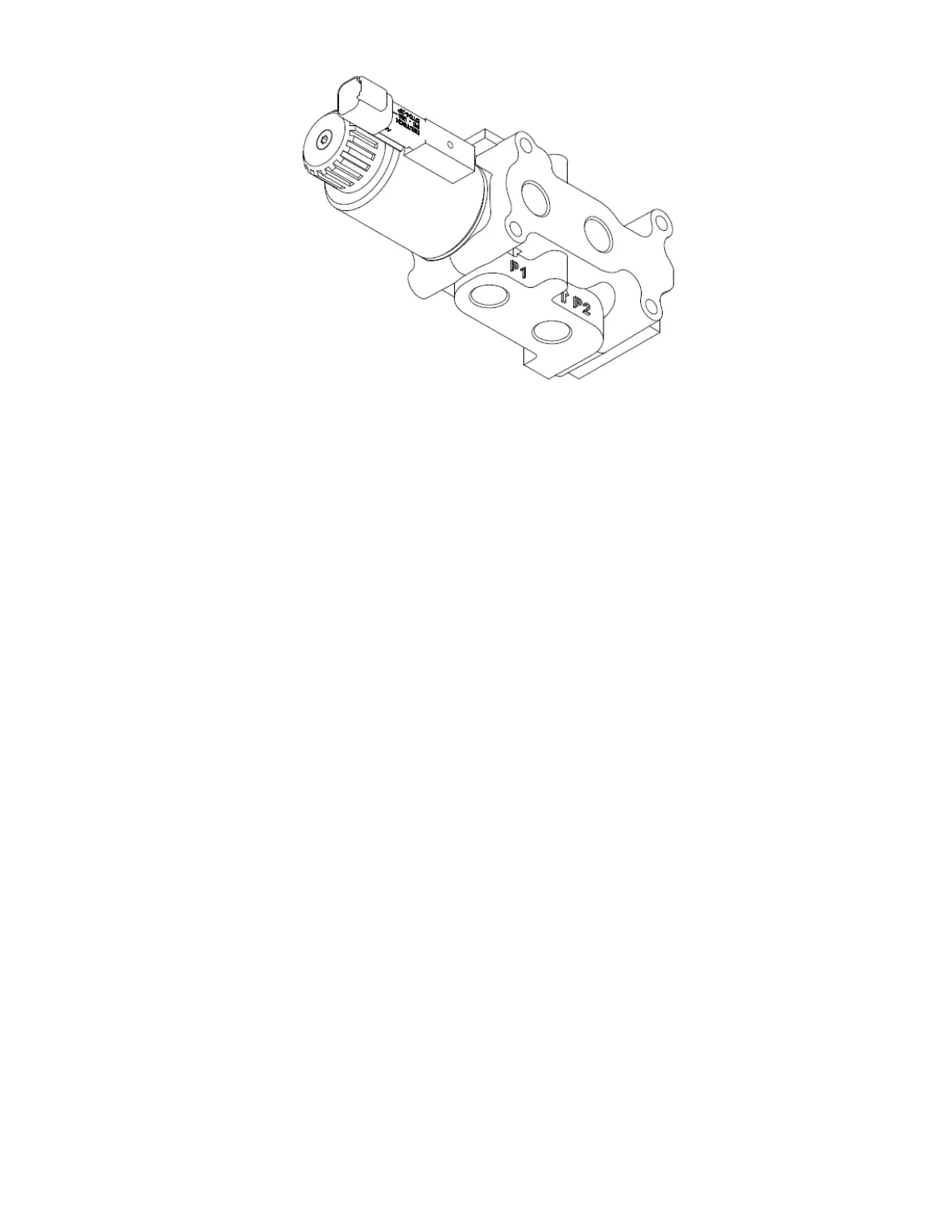

Diverter Valve
h. Disconnect the 2-pin electrical connector on a Diverter Valve. Apply 12V to the
pin with the white wire. Ground the pin with the black wire.
i. On the Lower Control Valve, locate the outrigger valve section that corresponds
to the Diverter Valve. From top to bottom, the valve sections control the right
rear, right front, left front, and left rear outriggers.
j. Start the crane.
k. On the cab-side of the Lower Control Valve, apply power and ground to the sole-
noid corresponding to the Diverter Valve. The outrigger beam should now retract.
Use extreme caution. The outrigger alarm will not sound.
l. Turn off the crane.
m. Repeat steps i – n for each outrigger beam.
