1-7

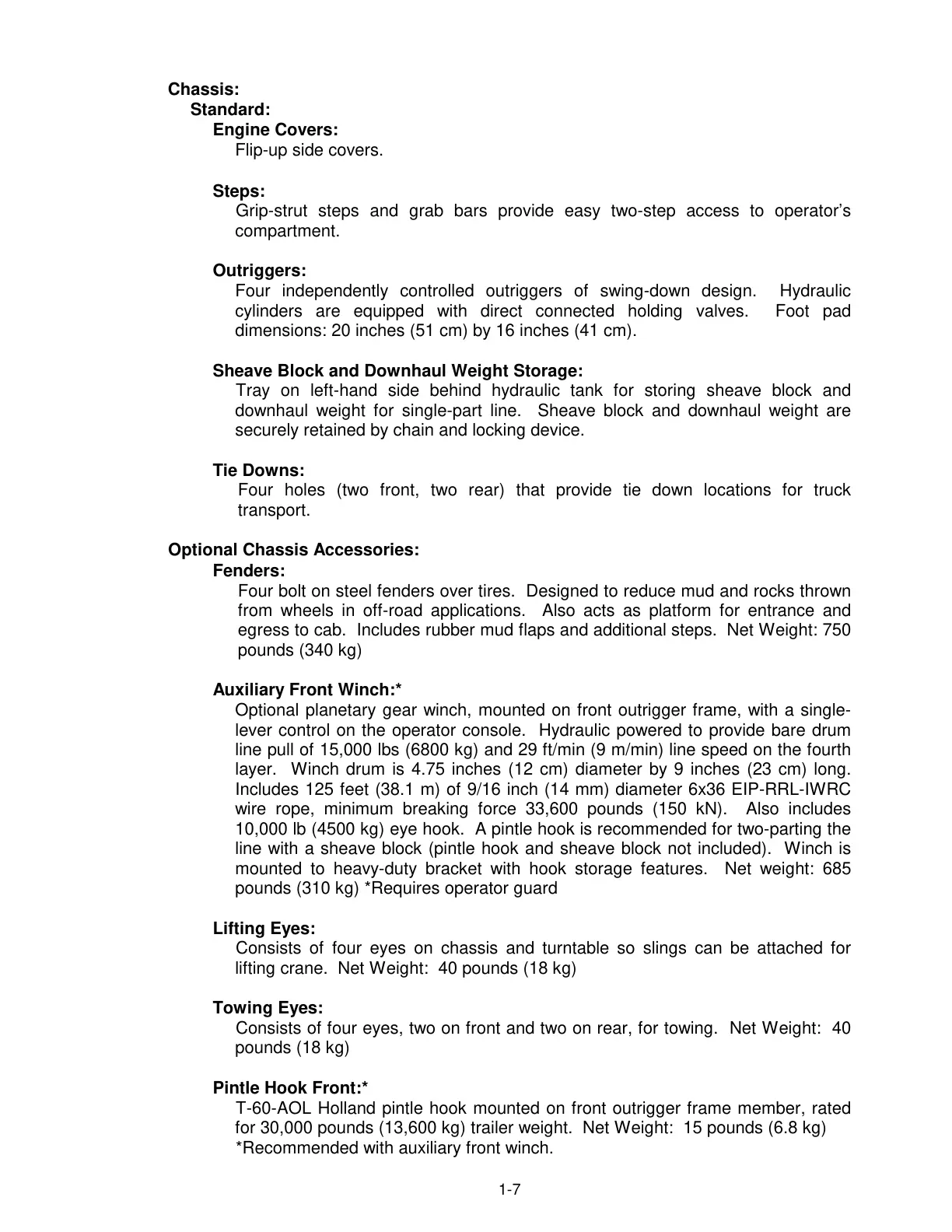

Chassis:
Standard:
Engine Covers:
Flip-up side covers.
Steps:
Grip-strut steps and grab bars provide easy two-step access to operator’s
compartment.
Outriggers:
Four independently controlled outriggers of swing-down design. Hydraulic
cylinders are equipped with direct connected holding valves. Foot pad
dimensions: 20 inches (51 cm) by 16 inches (41 cm).
Sheave Block and Downhaul Weight Storage:
Tray on left-hand side behind hydraulic tank for storing sheave block and
downhaul weight for single-part line. Sheave block and downhaul weight are
securely retained by chain and locking device.
Tie Downs:
Four holes (two front, two rear) that provide tie down locations for truck
transport.
Optional Chassis Accessories:
Fenders:
Four bolt on steel fenders over tires. Designed to reduce mud and rocks thrown
from wheels in off-road applications. Also acts as platform for entrance and
egress to cab. Includes rubber mud flaps and additional steps. Net Weight: 750
pounds (340 kg)
Auxiliary Front Winch:*
Optional planetary gear winch, mounted on front outrigger frame, with a single-
lever control on the operator console. Hydraulic powered to provide bare drum
line pull of 15,000 lbs (6800 kg) and 29 ft/min (9 m/min) line speed on the fourth
layer. Winch drum is 4.75 inches (12 cm) diameter by 9 inches (23 cm) long.
Includes 125 feet (38.1 m) of 9/16 inch (14 mm) diameter 6x36 EIP-RRL-IWRC
wire rope, minimum breaking force 33,600 pounds (150 kN). Also includes
10,000 lb (4500 kg) eye hook. A pintle hook is recommended for two-parting the
line with a sheave block (pintle hook and sheave block not included). Winch is
mounted to heavy-duty bracket with hook storage features. Net weight: 685
pounds (310 kg) *Requires operator guard
Lifting Eyes:
Consists of four eyes on chassis and turntable so slings can be attached for
lifting crane. Net Weight: 40 pounds (18 kg)
Towing Eyes:
Consists of four eyes, two on front and two on rear, for towing. Net Weight: 40
pounds (18 kg)
Pintle Hook Front:*
T-60-AOL Holland pintle hook mounted on front outrigger frame member, rated
for 30,000 pounds (13,600 kg) trailer weight. Net Weight: 15 pounds (6.8 kg)
*Recommended with auxiliary front winch.
