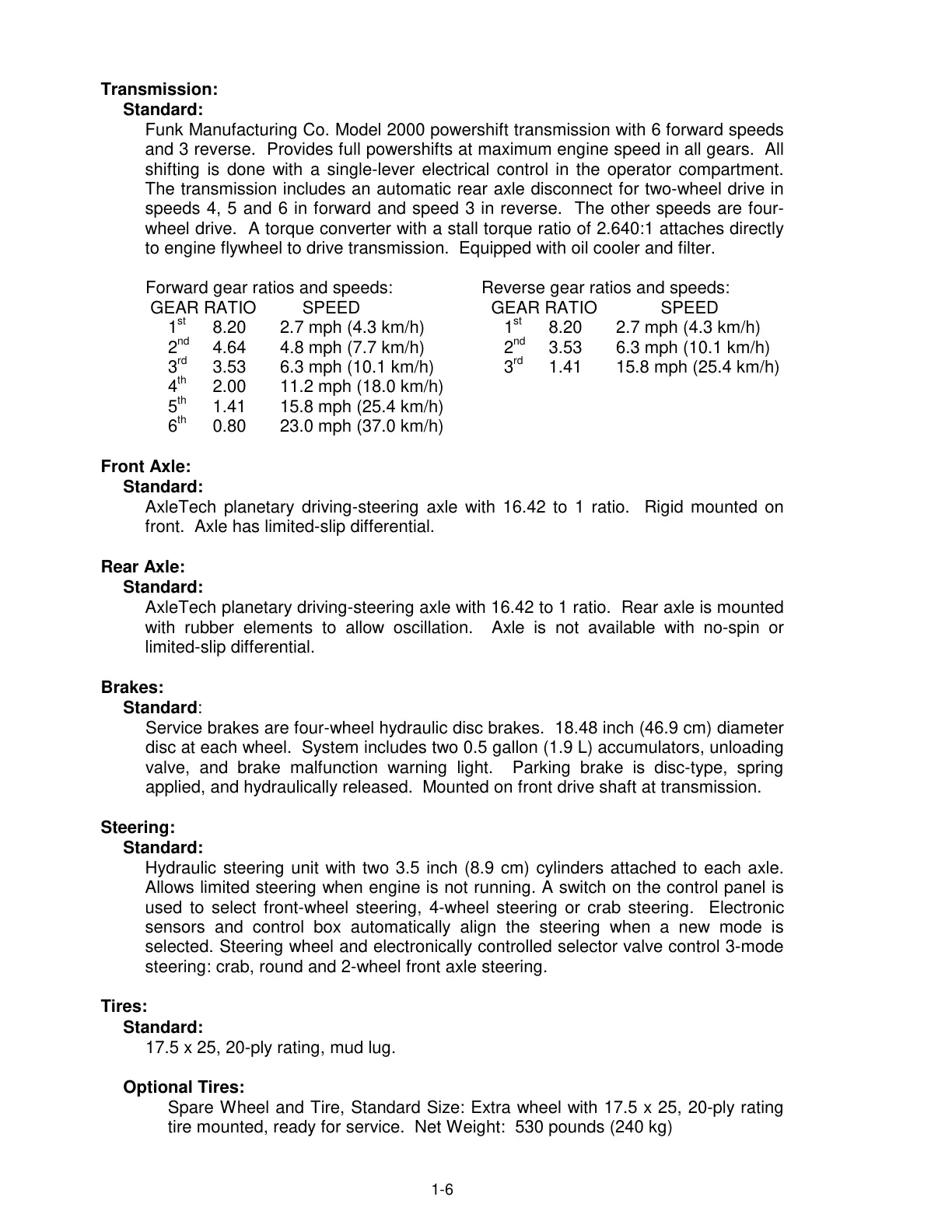

1-6
Transmission:
Standard:
Funk Manufacturing Co. Model 2000 powershift transmission with 6 forward speeds
and 3 reverse. Provides full powershifts at maximum engine speed in all gears. All
shifting is done with a single-lever electrical control in the operator compartment.
The transmission includes an automatic rear axle disconnect for two-wheel drive in
speeds 4, 5 and 6 in forward and speed 3 in reverse. The other speeds are four-
wheel drive. A torque converter with a stall torque ratio of 2.640:1 attaches directly
to engine flywheel to drive transmission. Equipped with oil cooler and filter.
Forward gear ratios and speeds: Reverse gear ratios and speeds:
GEAR RATIO SPEED GEAR RATIO SPEED
1
st
8.20 2.7 mph (4.3 km/h) 1
st
8.20 2.7 mph (4.3 km/h)
2
nd
4.64 4.8 mph (7.7 km/h) 2
nd
3.53 6.3 mph (10.1 km/h)
3
rd
3.53 6.3 mph (10.1 km/h) 3
rd
1.41 15.8 mph (25.4 km/h)
4
th
2.00 11.2 mph (18.0 km/h)
5
th
1.41 15.8 mph (25.4 km/h)
6
th
0.80 23.0 mph (37.0 km/h)
Front Axle:
Standard:
AxleTech planetary driving-steering axle with 16.42 to 1 ratio. Rigid mounted on
front. Axle has limited-slip differential.
Rear Axle:
Standard:
AxleTech planetary driving-steering axle with 16.42 to 1 ratio. Rear axle is mounted
with rubber elements to allow oscillation. Axle is not available with no-spin or
limited-slip differential.
Brakes:
Standard:
Service brakes are four-wheel hydraulic disc brakes. 18.48 inch (46.9 cm) diameter
disc at each wheel. System includes two 0.5 gallon (1.9 L) accumulators, unloading
valve, and brake malfunction warning light. Parking brake is disc-type, spring
applied, and hydraulically released. Mounted on front drive shaft at transmission.
Steering:
Standard:
Hydraulic steering unit with two 3.5 inch (8.9 cm) cylinders attached to each axle.
Allows limited steering when engine is not running. A switch on the control panel is
used to select front-wheel steering, 4-wheel steering or crab steering. Electronic
sensors and control box automatically align the steering when a new mode is
selected. Steering wheel and electronically controlled selector valve control 3-mode
steering: crab, round and 2-wheel front axle steering.
Tires:
Standard:
17.5 x 25, 20-ply rating, mud lug.
Optional Tires:
Spare Wheel and Tire, Standard Size: Extra wheel with 17.5 x 25, 20-ply rating
tire mounted, ready for service. Net Weight: 530 pounds (240 kg)
