MULTI-PART LINE REEVING

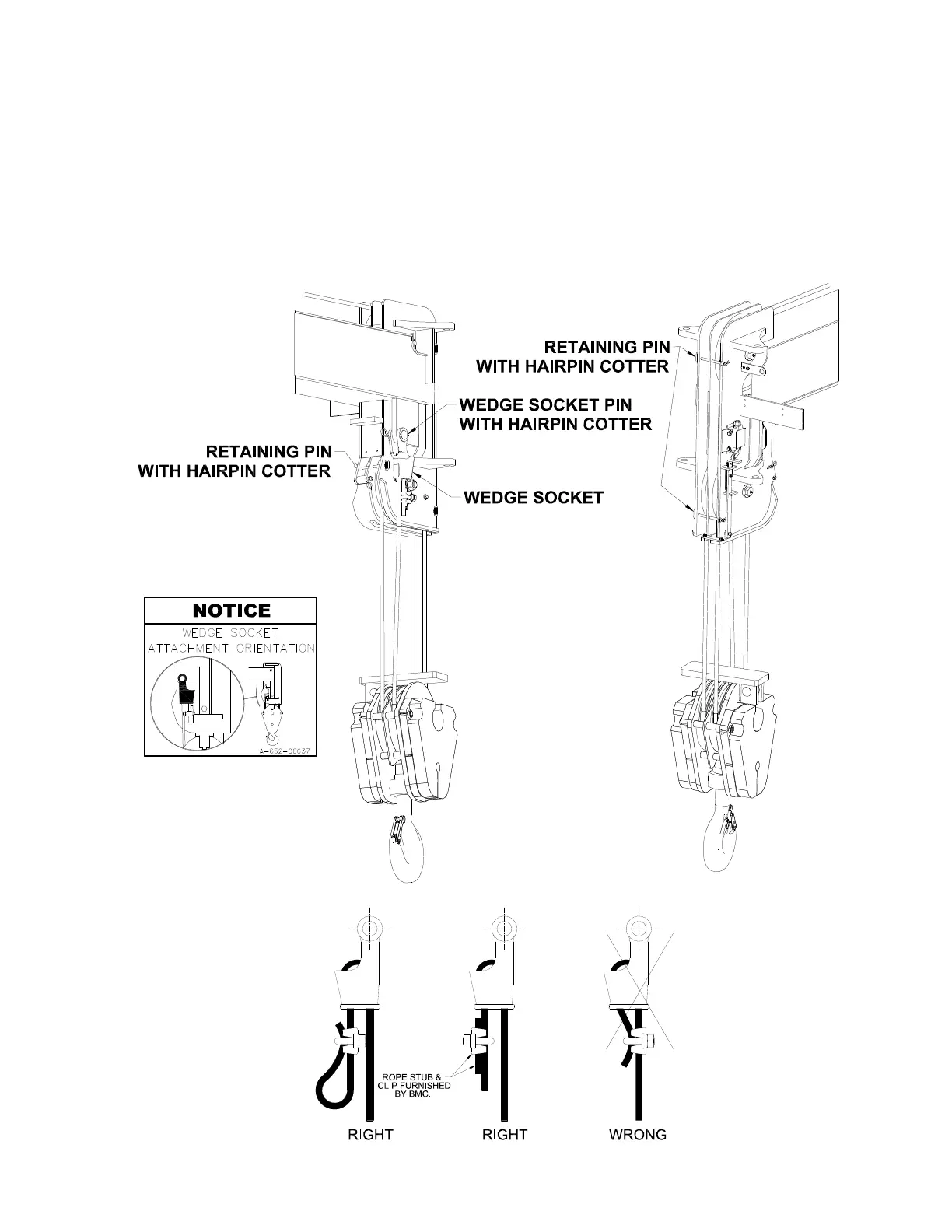

For loads above 10,000 pounds (4500kg) the sheave block must be used. The 4-part-line
sheave block can be used for loads up to 40,000 pounds (18100 kg). The wedge socket
should be pinned to the wedge socket anchor at the boom tip, as shown in the figure. The
dead end of the rope in the wedge socket should be clamped, as shown in the figure below.
The clamp must not be used on the live part of the rope. This will seriously weaken the
rope. The sheave block should hang straight, and the top of the block should meet the boom
sheave plates squarely when pulled up snug.
