SWITCH AND INDICATOR SYMBOLS ON BMC CRANES

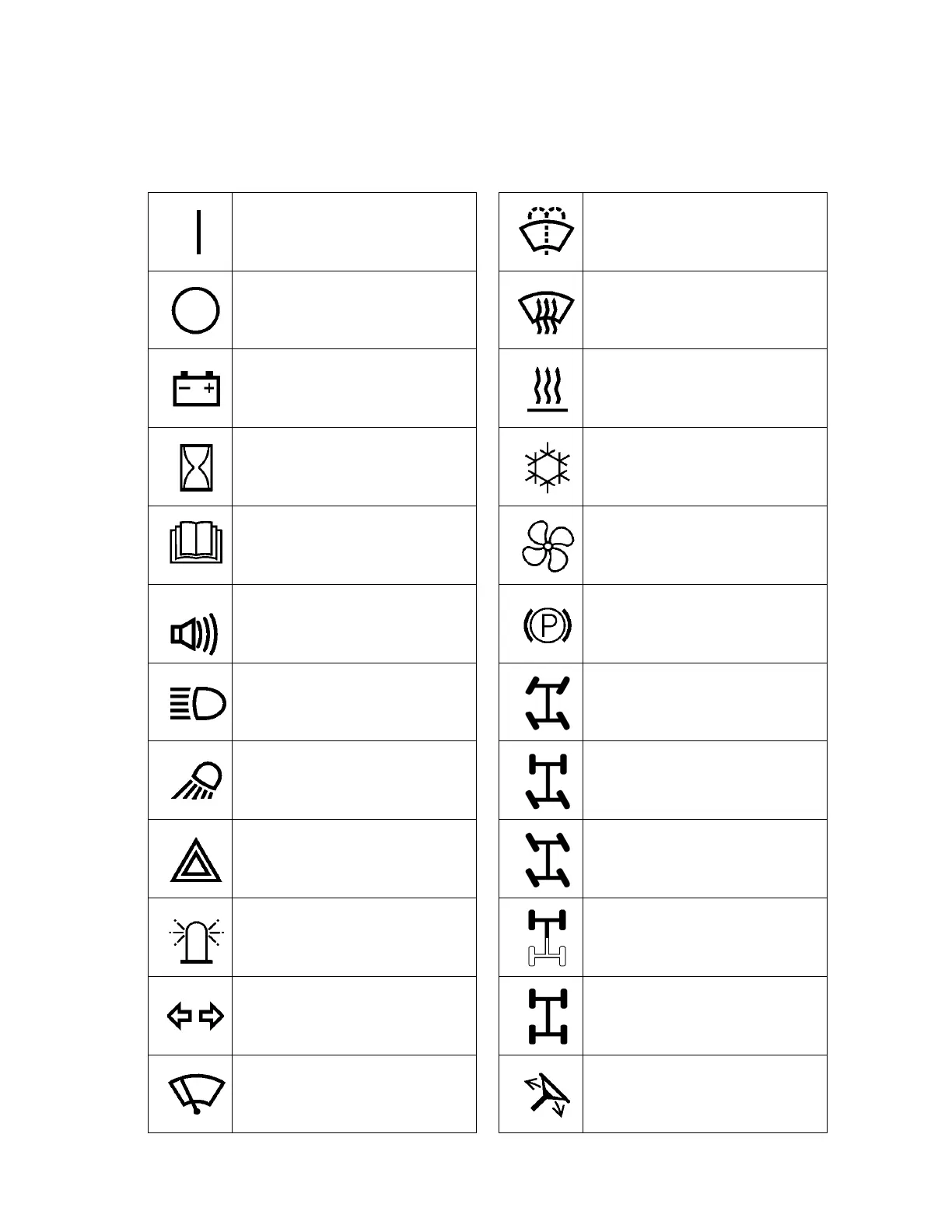

The following list shows the symbols used to label switches and indicators on
BMC cranes. Most symbols are derived from the ISO 3767-1:1998(E)
standard. Not all symbols will be included on your BMC crane.
On/Start
Windshield washer switch
Off/Stop
Windshield defroster switch
Battery not charging
Heater switch
Hour meter
Air conditioner switch
Read operator's manual
Ventilation fan switch
Sound level notification
Parking brake is set
Headlights (main/high
beam)
4-wheel (round) steer
Work light
Rear-wheel steer
Hazard lights
Crab steer
Rotating beacon or strobe
lights
2-wheel drive
Turn signals left/right
4-wheel drive
Windshield wiper switch
Steering wheel tilt
