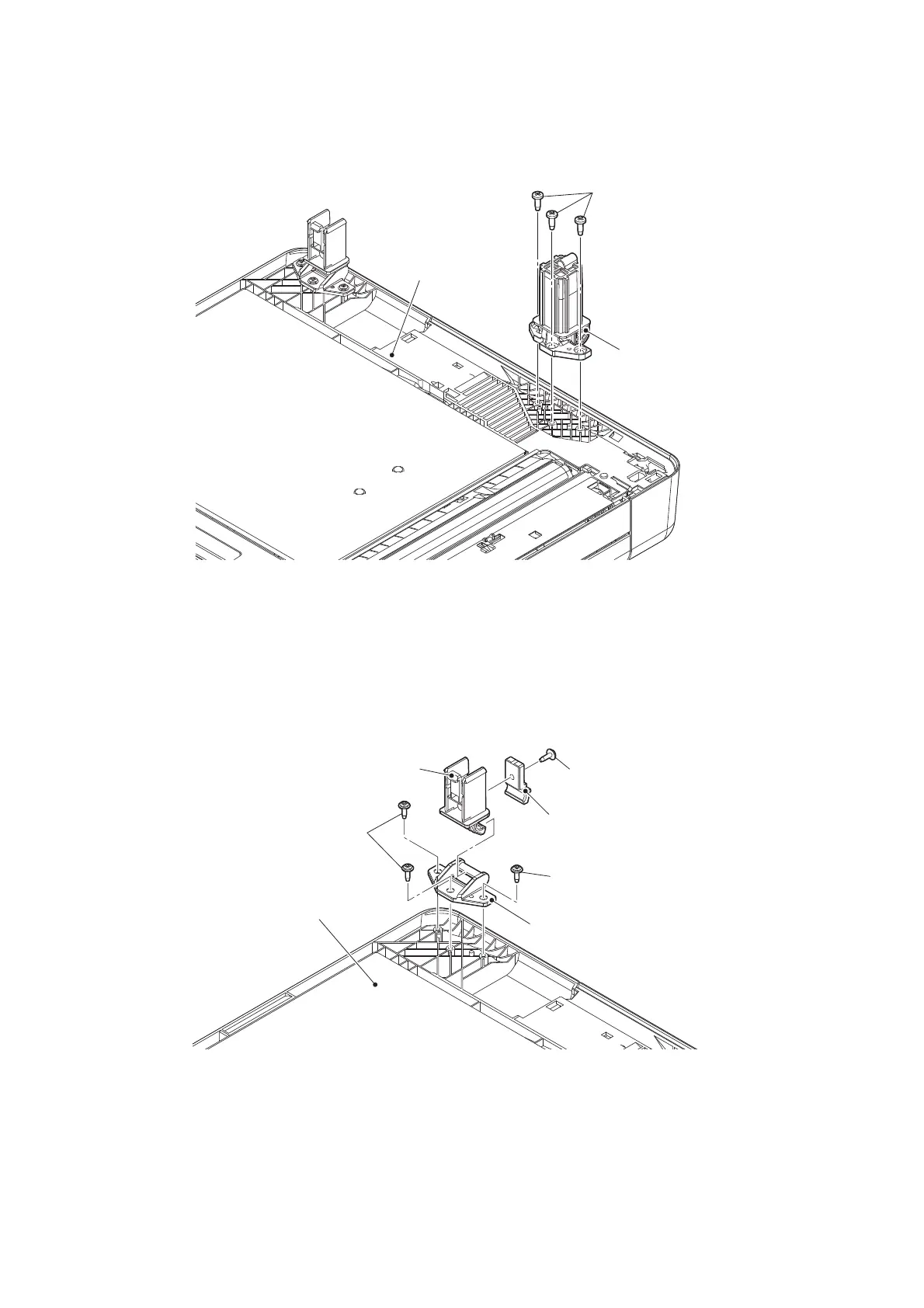

(6) Remove the three Taptite bind B M4x12 screws to remove the Hinge ASSY L from the ADF
unit.
Fig. 3-32
(7) Remove the Taptite cup B M3x10 screw to remove the Hinge R support and the Hinge R
from the Hinge arm R.
(8) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm R from the ADF
unit.
Fig. 3-33
Hinge ASSY L
Taptite bind B M4x12
ADF unit
Hinge R
Taptite cup B M3x10
Taptite cup B M3x10
Hinge R support
Taptite cup B M3x10
Hinge arm R
ADF unit

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
