Brother DCP-L2512D User Manual

3-64
Confidential
(5) Remove the First side CIS flat cable from the back of the CIS carriage.
(6) Remove the First side CIS flat cable from the Document scanner bottom cover ASSY.

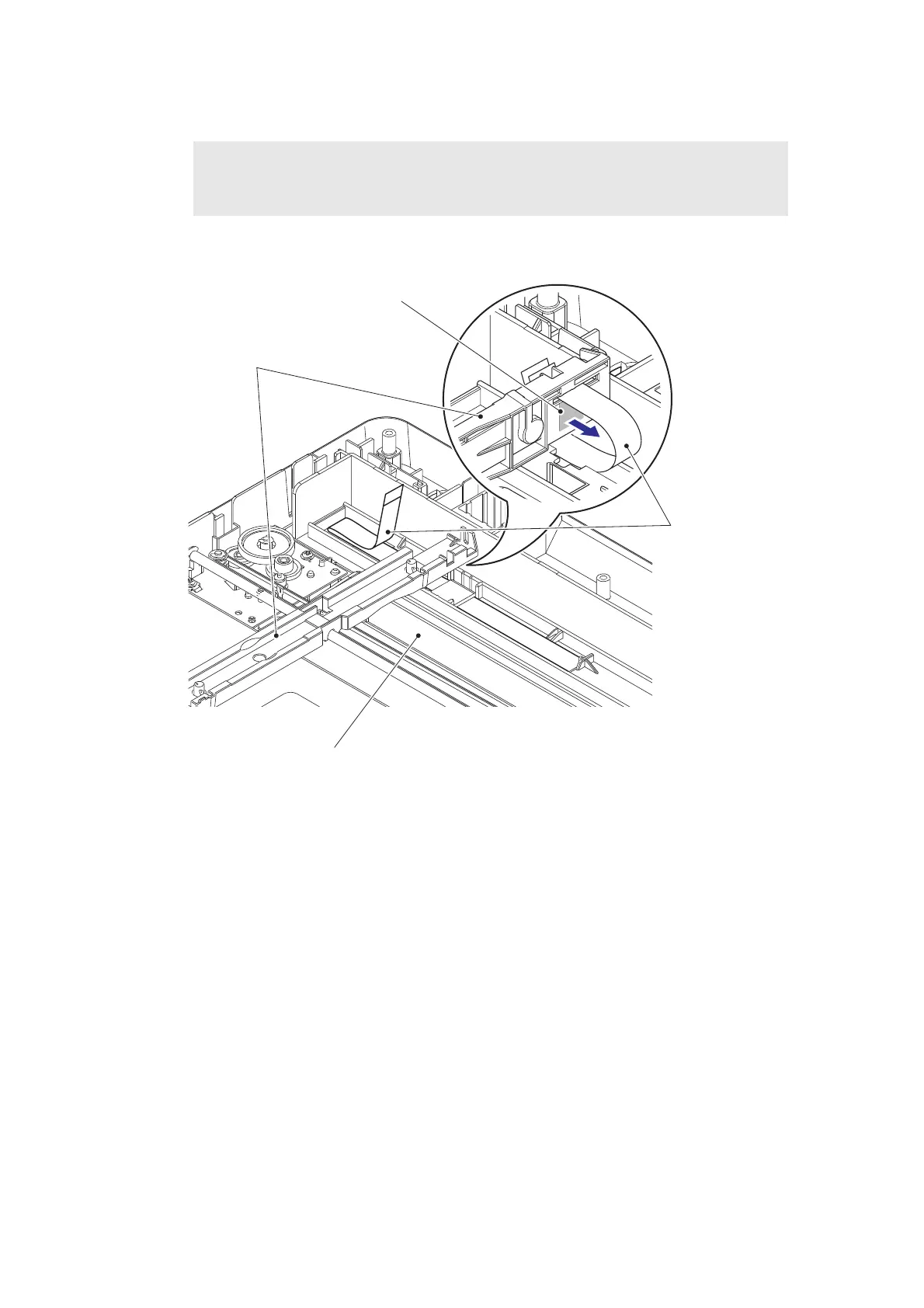

Fig. 3-56
Harness routing: Refer to “6. First side CIS unit, Panel”.
Note:
• Be sure to replace the Double-sided tape with a new one, after taking off the
Double-sided tape from the CIS carriage.
First side CIS
flat cable
CIS carriage
Double-sided tape
Document scanner bottom cover ASSY
