2) Attach the two pieces of Double-sided tape to the Document scanner bottom cover
ASSY at the positions shown in the figure below. (If the old Double-sided tape remains
attached, replace it with a new one.)

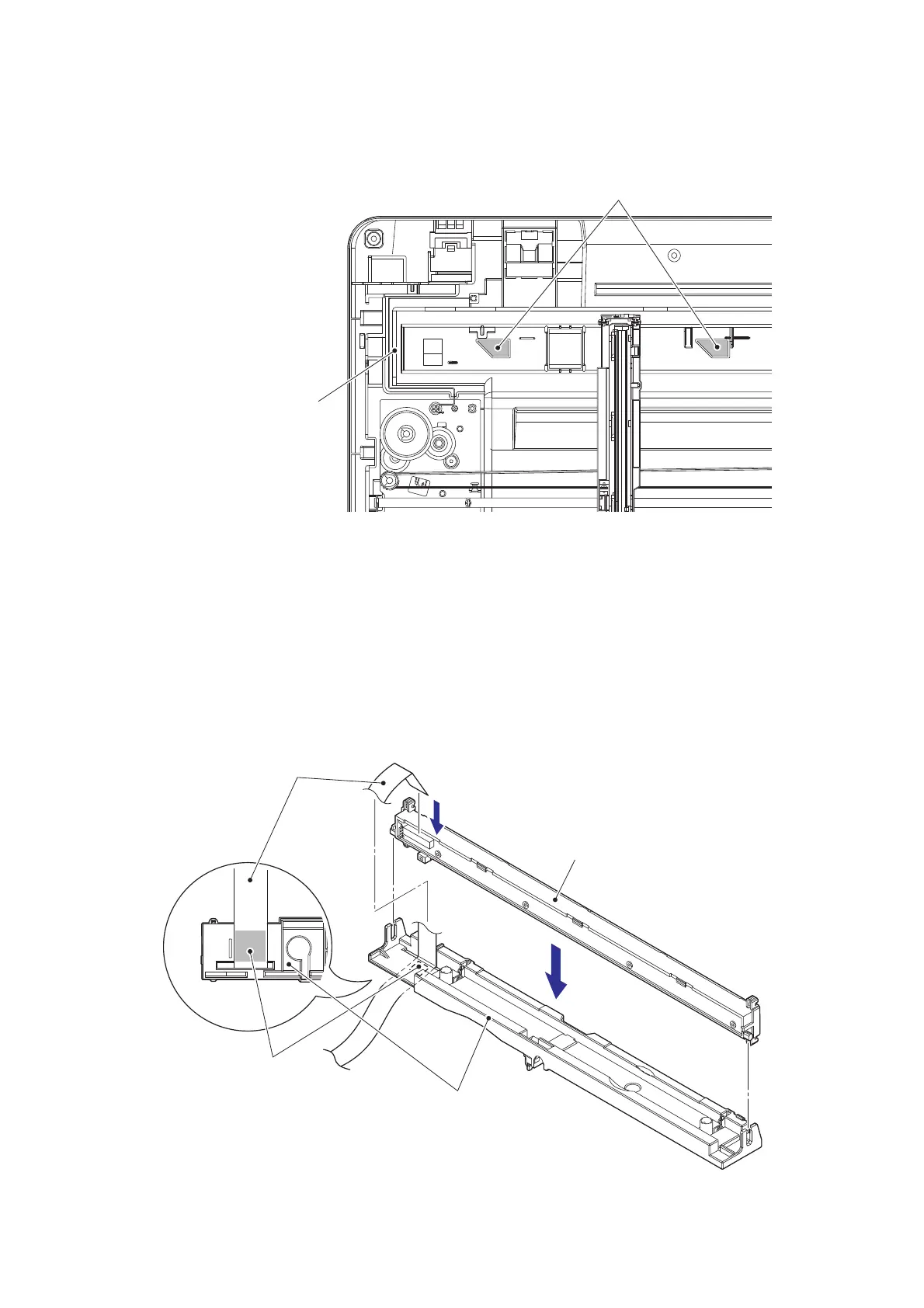

Fig. 3-58
3) Attach the 9 mm x 9 mm Double-sided tape to the CIS carriage at the position shown in
the figure below. (If the old Double-sided tape remains attached, replace it with a new
one.)
4) Connect the First side CIS flat cable to the First side CIS unit.
5) Attach the First side CIS unit to the CIS carriage.
6) Peel the release liner of the Double-sided tape attached to the CIS carriage, and secure
the First side CIS flat cable with the tape as shown in the figure below.
Fig. 3-59
Double-sided tapes
Document scanner
bottom cover ASSY
First side CIS unit
First side CIS flat cable
CIS carriage
Double-sided tape

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
