7) Pass the First side CIS flat cable through the Flat core.
8) Peel the release liner of the two pieces of Double-sided tape attached to the Document
scanner bottom cover ASSY, and secure the First side CIS flat cable with the tapes as
shown in the figure below.

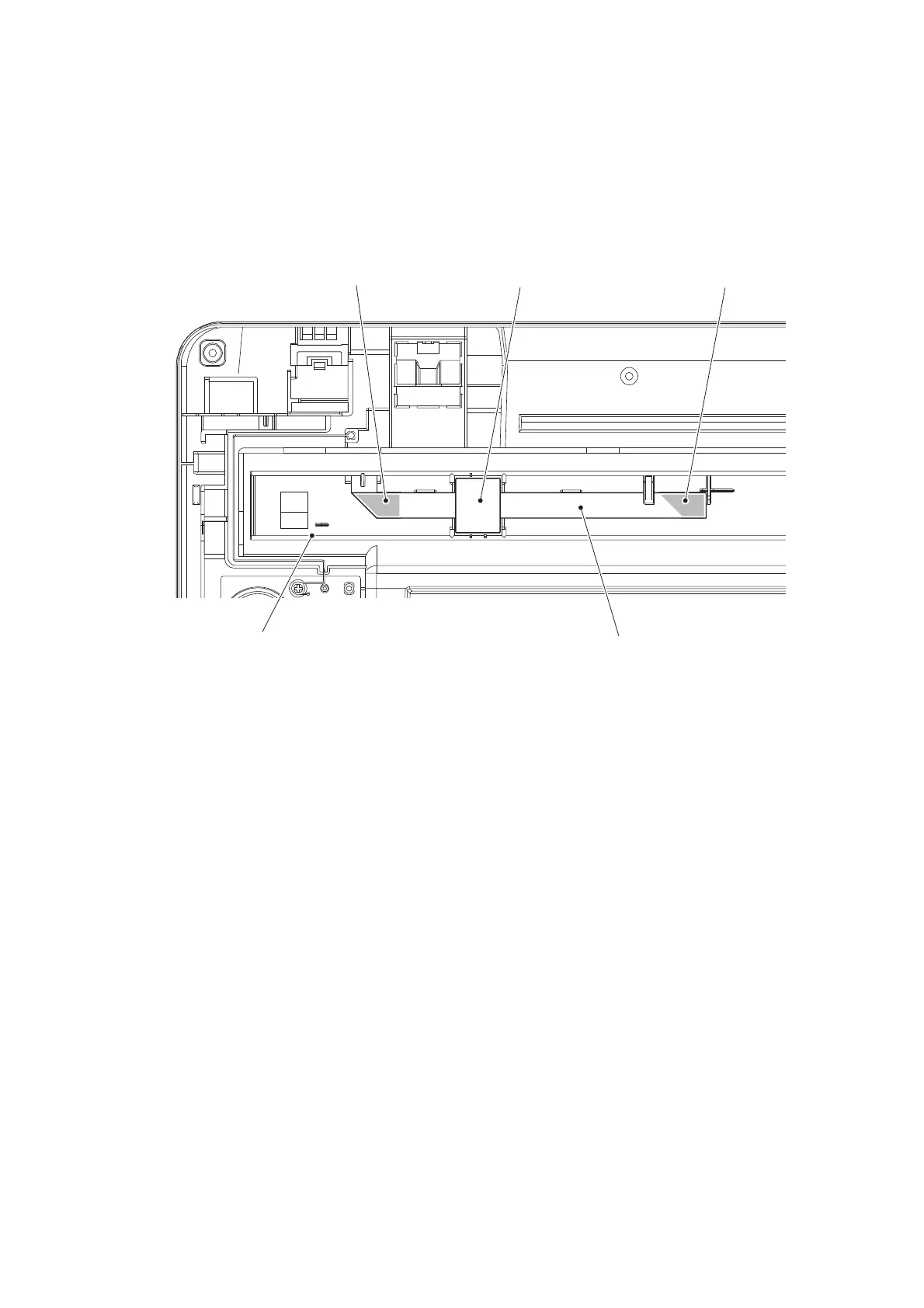

Fig. 3-60
Harness routing: Refer to “6. First side CIS unit, Panel”.
Flat core
First side CIS flat cable
Double-sided tape
Document scanner bottom cover ASSY
Double-sided tape

Brother DCP-L2512D Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Automatic
Scanner Type	Flatbed
Copy Resolution	Up to 600 x 600 dpi
Interface	USB 2.0
Processor	600 MHz
Memory	64 MB
Print Speed	Up to 30 ppm
Print Resolution	2400 x 600 dpi
Paper Input	250 sheets
Paper Output	100 sheets
Scan Resolution	1200 x 1200 dpi
Copy Speed	Up to 30 cpm
