Home > Introduction to Your Brother Machine > Control Panel Overview

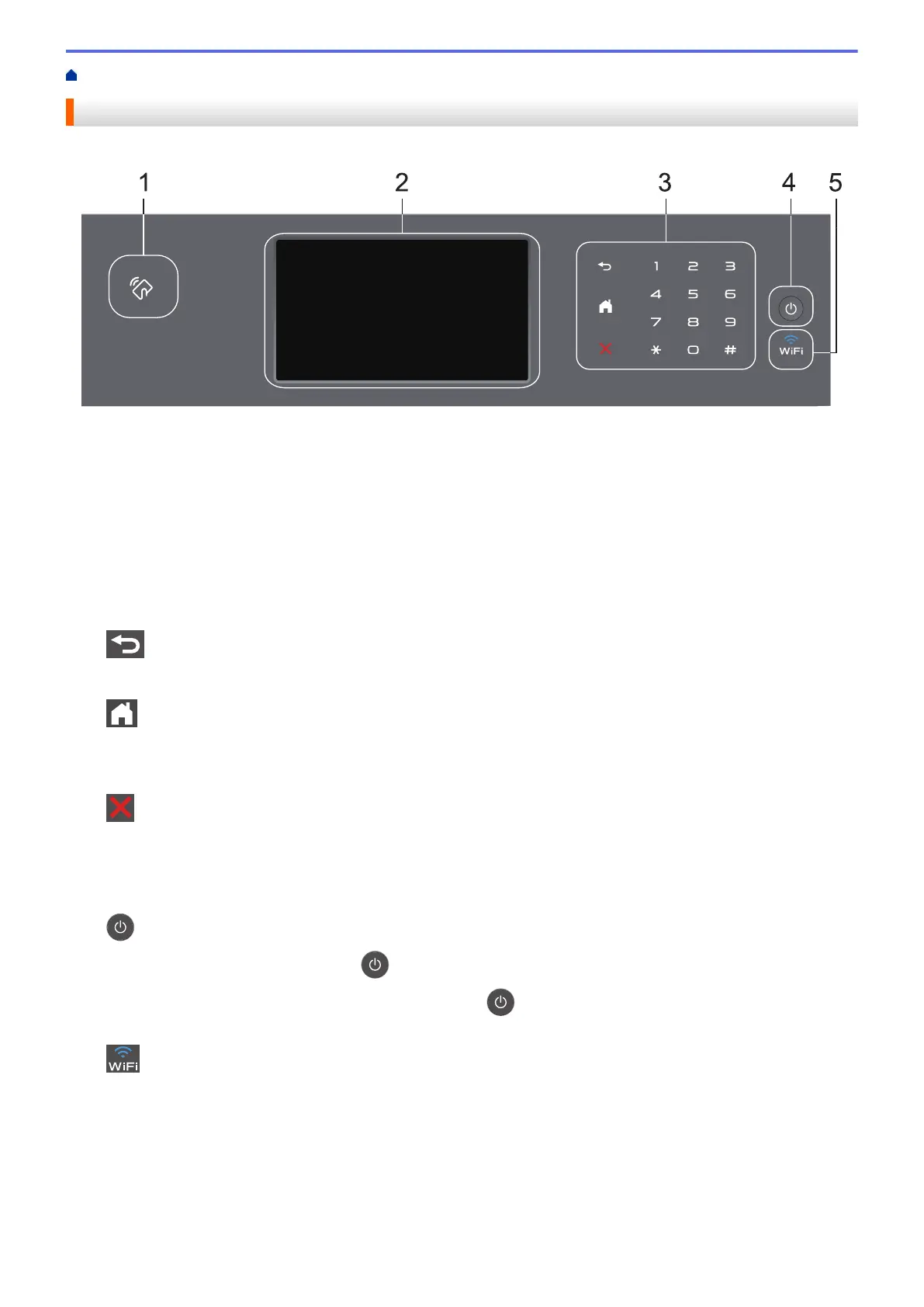

Control Panel Overview
1. Near Field Communication (NFC) Reader (available only for certain models)
You can use card authentication by touching the IC card to the NFC Reader on the control panel.
If your Android
™
device supports the NFC feature, you can print from your device or scan documents to your
device in the same way.
2. Touchscreen Liquid Crystal Display (LCD)
Access menus and options by pressing them on the touchscreen.
3. Touchpanel
(Back)
Press to go back to the previous menu.
(Home)
• Press to return to the Home screen.
• While the machine is in Sleep Mode, the Home icon blinks.
(Cancel)
Press to cancel an operation (available when lit).
Dial Pad (Numerical buttons)
Press the numbers on the touchpanel to dial telephone or fax numbers and to enter the number of copies.
4.
Power On/Off
• Turn on the machine by pressing
.
• Turn off the machine by pressing and holding down . The LCD displays [Shutting Down] for a few
seconds before going off. If you have an external telephone or TAD connected, it is always available.
5.
(WiFi)
(For infrastructure mode)
When the WiFi light is on, your Brother machine is connected to a wireless access point. When the WiFi light
blinks, the wireless connection is down, or your machine is in the process of connecting to a wireless access
point.
(For Ad-Hoc mode)
The WiFi LED is always off.
9
