Brother FAX-2840 Service Manual

2-74
Confidential

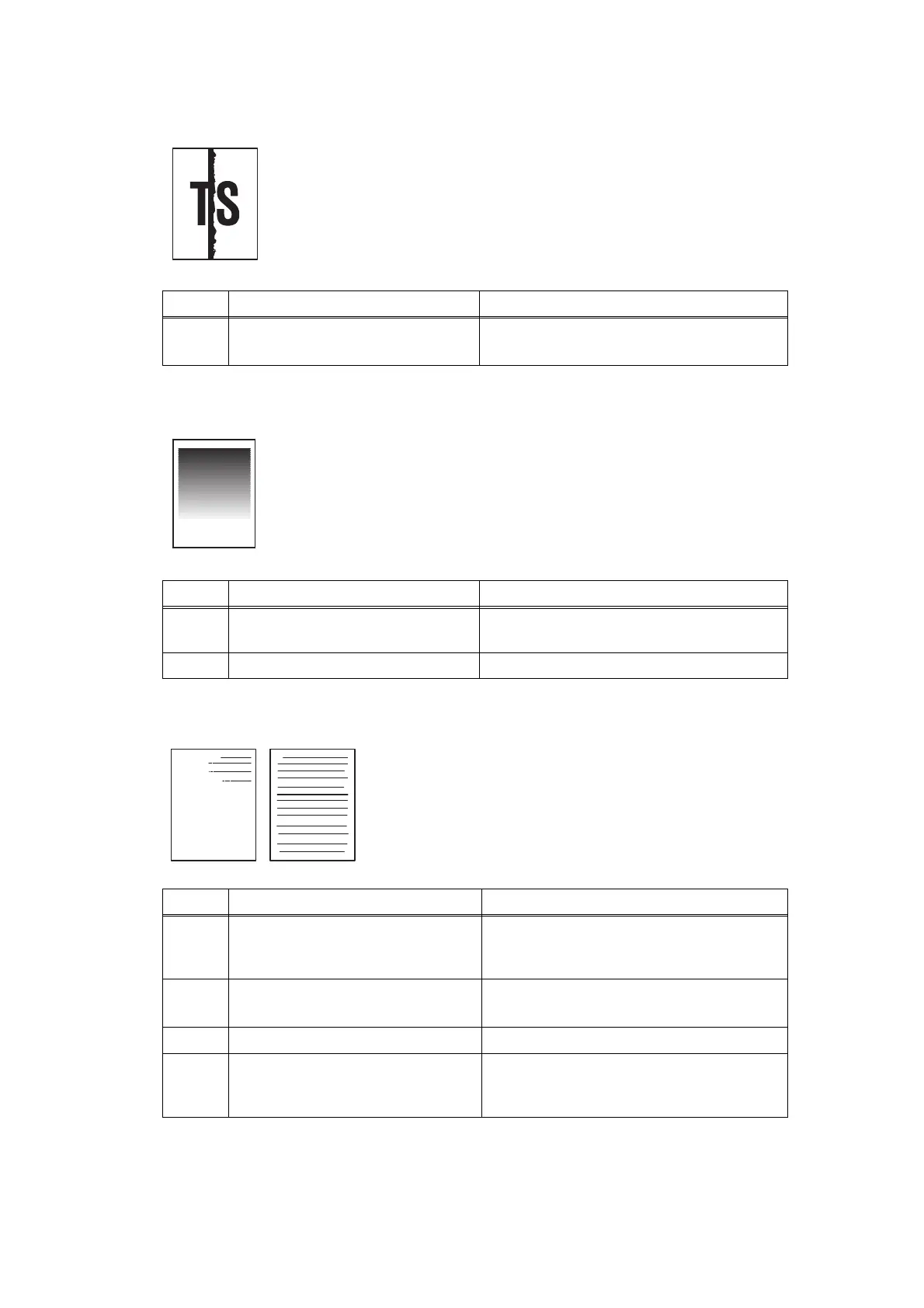

 Black band
 Downward fogging of solid color
 Horizontal lines
<User Check>
- Clean inside the machine and the corona wire of the drum unit. If the
same problem occurs after cleaning, replace the drum unit with a
new one.
- The paper tray earth spring on the machine side may be dirty. Clean
it with a dry cloth.
Step Cause Remedy
1
Bend of tray earth spring (1) Correct bending of the tray earth spring.
(2) Replace the paper tray.
<User Check>
- Replace the toner cartridge with a new one.
Step Cause Remedy
1
High voltage power supply PCB
failure
Replace the high voltage power supply PCB
ASSY.
2 Main PCB failure Replace the main PCB ASSY.
<User Check>
- The paper tray earth spring on the machine side may be
dirty. Clean it with a dry cloth.
- Replace the drum unit with a new one.
- Replace the toner cartridge with a new one.
Step Cause Remedy
1
Dirt on electrodes of the drum unit
and those of the machine
Clean the electrodes of the drum unit and
those of the machine.
(Refer to Fig. 2-10 and
Fig. 2-11.)
2
Bend of tray earth spring (1)
Correct bending of the tray earth spring.
(2) Replace the paper tray.
3 Laser unit failure Replace the laser unit.
4
Scratch and dirt on the heat roller
(horizontal lines at intervals of 53.4
mm)
Replace the fuser unit.
