Brother FAX-2840 Service Manual

2-3
Confidential
1.2 Initial Check
Check the following items before attempting to repair the machine.
 Operating environment
(1) The machine is placed on a flat, stable surface.
(2) The machine is used in a clean environment where the temperature is between 10°C
(50°F) and 32.5°C (90.5°F) and the relative humidity is maintained between 20% and
80%.
(3) The machine is not exposed to direct sunlight, excessive heat, moisture, or dust.

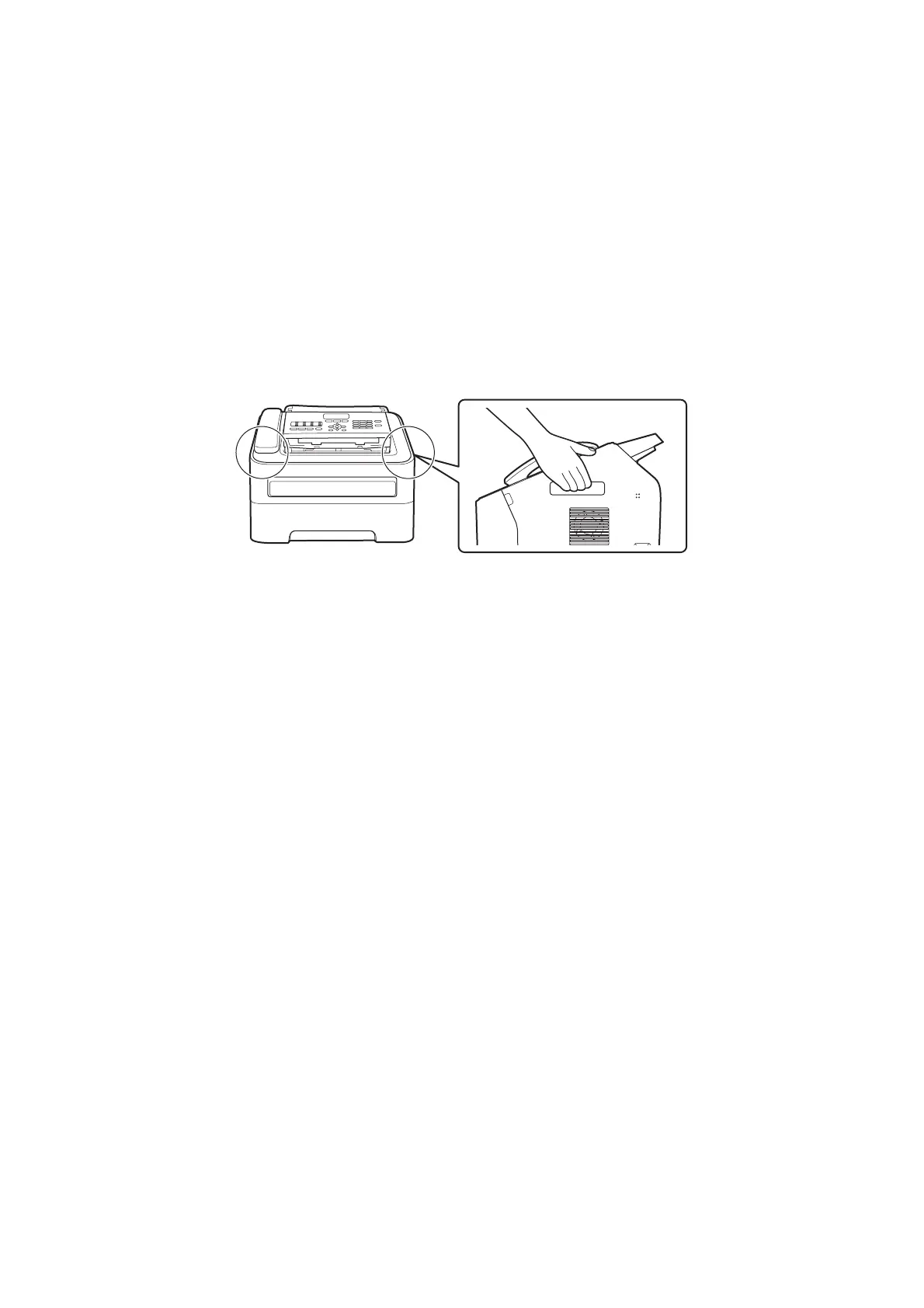

(4) When you move the machine, grasp the handholds on both sides of the machine.
DO NOT carry the machine by holding it at the bottom.
(5) The machine should be installed 10 cm or more from a wall or other objects to avoid the
ventilation port of the fan being blocked.
 Power supply
(1) Power described on the rating label attached on the machine is supplied. Power
fluctuation should be within ±10% of the rated voltage.
(2) The AC input power supply is within the regulated value.
(3) The cables and harnesses are connected correctly.
(4) The fuses are not blown.
 Paper
(1) The recommended type of paper is being used. (Refer to the User's Guide.)
(2) The paper is not damp.
(3) Short-grained paper or acid paper is not used.
 Consumable parts
(1) The drum unit (including the toner cartridge) is installed correctly.

Brother FAX-2840 Specifications

General

Group dial	8
Modem speed	33.6 Kbit/s
Color faxing	No
One-touch dials	22
Print technology	Laser
Fax compatibility	ITU-T G3
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax resolution modes	Fine, Photo, Standard, Super Fine
Fax transmission speed	2.5 sec/page
Out-of-paper reception	400 pages
Error Correction Mode (ECM)	Yes
Fax speed dialing (max numbers)	200
Copier resize	25 - 400 %
Grayscale levels	256
Maximum copy resolution	300 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	20 cpm
Standard input capacity	250 sheets
Standard output capacity	100 sheets
Auto document feeder (ADF) input capacity	20 sheets
Supported media weight(s)	60 - 105 g/m²
Maximum standard media size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6
Display number of lines	2 lines
Display number of characters	16
Processor family	ARM9
Processor frequency	200 MHz
Maximum internal memory	16 MB
Product color	Black, Grey
Sustainability certificates	ENERGY STAR
Noise level	53 dB
Noise level (idle)	30 dB
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	55 W
Power consumption (typical)	365 W
Power consumption (PowerSave)	1.5 W
Package weight	12900 g

Weight and Dimensions

Weight	9000 g
Dimensions (WxDxH)	368 x 360 x 311 mm
