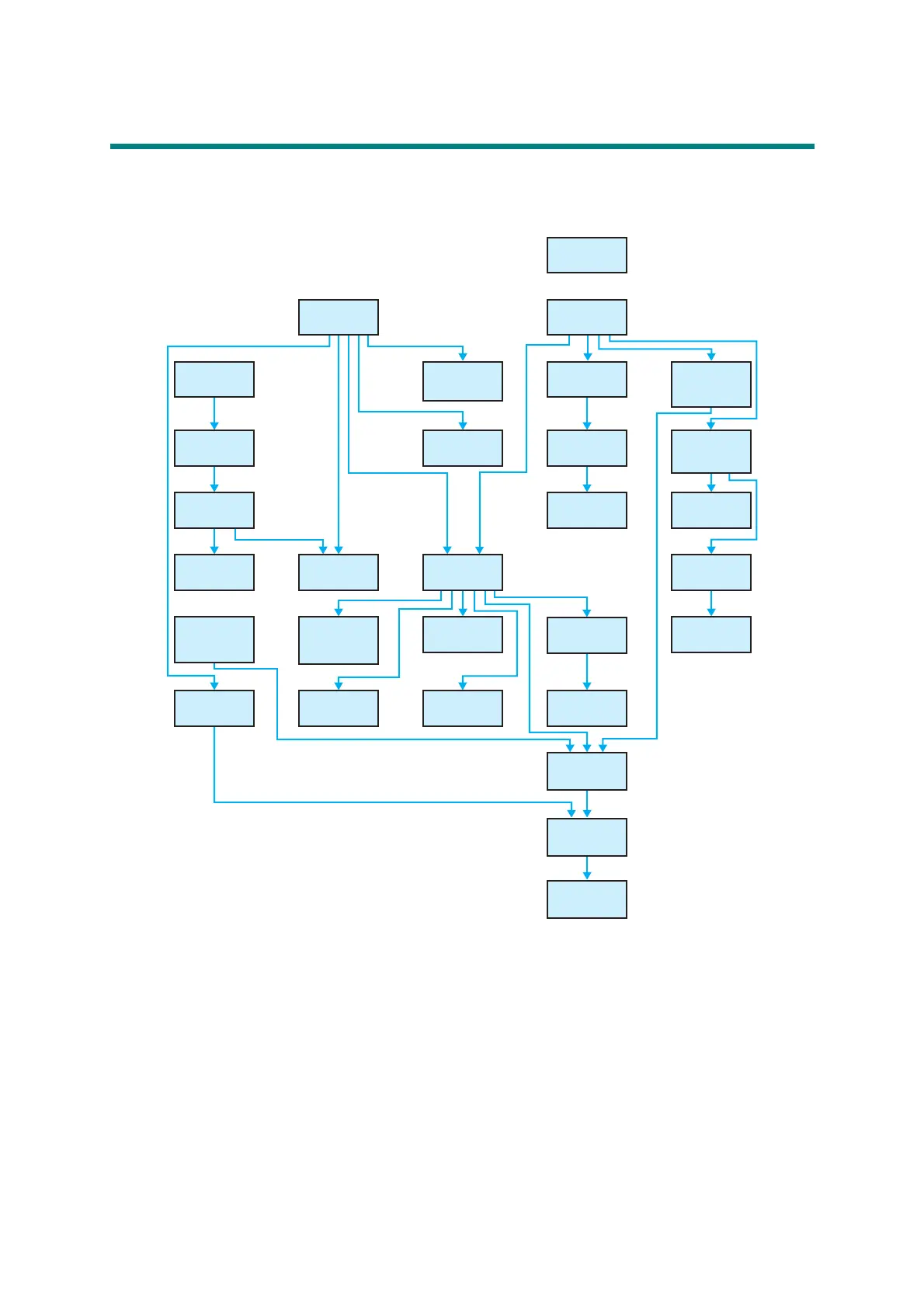

8. DISASSEMBLY FLOW CHART
Disassembly / Reassembly (second)
9.2 Back cover
5/5
9.6 Fuser cover
5/5
9.7 Inner chute ASSY
10/20
9.22 Frame L unit
55/70
*5
60/80
*2
9.9 Panel PCB ASSY
5/5
9.20 Main PCB ASSY
30/40
9.14 Fan
5/5
9.9 Top cover ASSY
20/20
9.17 Filter
5/5
9.10 Fuser unit
15/35
9.5 Side cover R
10/10
9.3 Outer chute ASSY
5/5
9.11 Low-voltage power
supply PCB ASSY
20/30
9.19 Roller holder
ASSY
5/5
9.4 Front cover ASSY /
Support flap
10/10
*5
15/15
*2
9.15 Relay PCB ASSY
*1 *2
/
Toner box new PCB
ASSY
*1
15/30
9.13 HVPS flat cable /
High-voltage power
supply PCB ASSY
10/25
9.12 New toner sensor
PCB ASSY
5/5
9.16 Laser unit flat
cable / Laser unit
15/30
9.8 Side cover L
10/10
9.27 Eject sensor PCB
ASSY
25/30
9.9 Panel flat cable / LCD
ASSY / NFC PCB ASSY
*4
10/10
9.28 Registration
front/rear actuator
holder ASSY
50/60
9.29 Paper feed roller
ASSY / Paper feed
sensor PCB ASSY
25/30
9.24 Fuser gear
64R/36R
5/5
9.25 Toner sensor PCB
ASSY
*1
25/35
9.23 Paper feed motor /
Paper feed motor flat
cable
45/55
9.21 T1 clutch /
Registration clutch
10/20
*5
25/40
*2
9.18 Wireless LAN
PCB
*3
5/5
9.26 Front cover sensor
25/30
*1
For models with Toner box
*2
For MP models
*3
Only for wireless network models
*4
Only for models with NFC
*5
For manual feed models
