9.28 Registration front/rear actuator holder ASSY
(1) Release the Hook part of the Under R FG wire from the LVPS shield plate.
(2) Raise the Laser R FG plate slightly to remove it from the Pin.
(3) Remove the Taptite cup S M3x8 SR screw and the Taptite bind B M4x12 screw, pull out the
right side of the LVPS shield plate in the direction of the arrow A to remove it from the Pin.
And then pull it out in the direction of the arrow B to remove it from the machine.

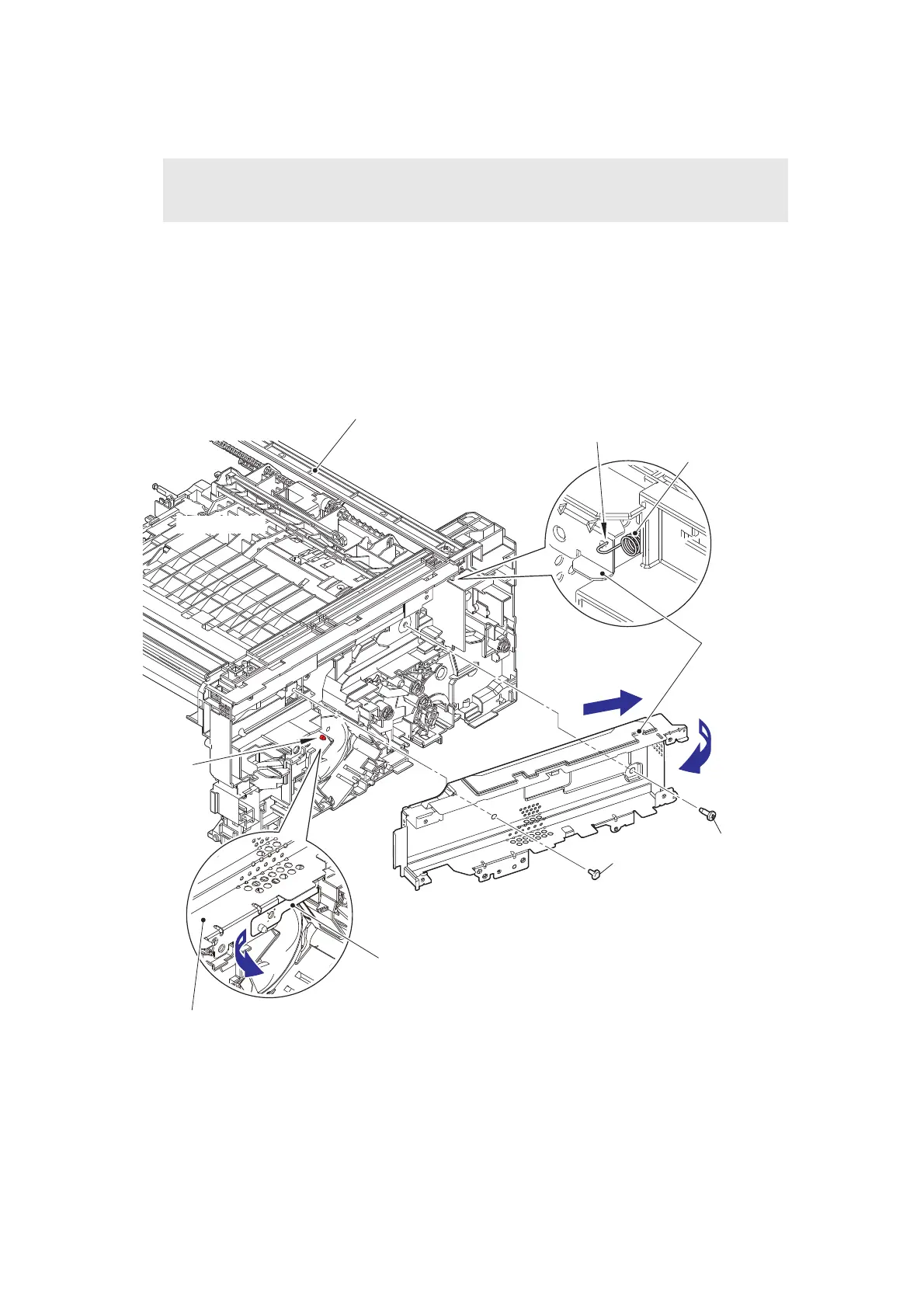

Fig. 3-59
Note:
• As the Under bar is easy to bend, be careful to handle it.
Under R FG wire
Taptite cup S
M3x8 SR
LVPS shield
plate
Taptite bind B
M4x12
Laser R FG plate
Hook part
<Back side>
<Rear view of
Frame R>
A
B
Under bar
<Bottom side>
Pin
LVPS shield plate
