3-24

Confidential

9.6 Fuser cover

(1) Hold the Knobs on the Fuser cover, and pull the Fuser cover down.

(2) Pull the Fuser cover in the direction of the arrow to remove it from the Bosses, and remove

the Fuser cover.

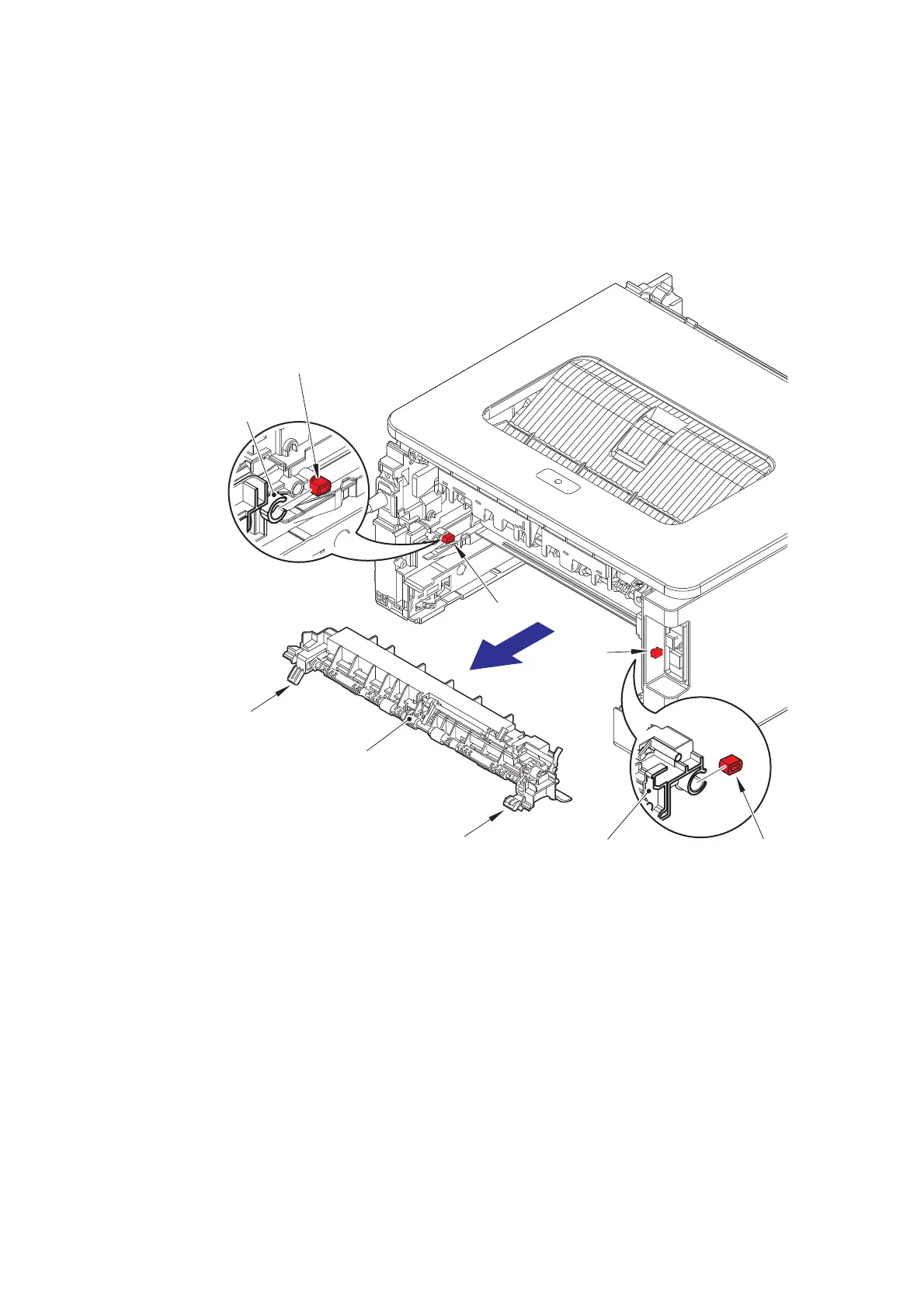

Fig. 3-16

Boss

Fuser cover

Knob

Fuser cover

Knob

Fuser cover

Boss
