3-19

Confidential

9.3 Outer chute ASSY

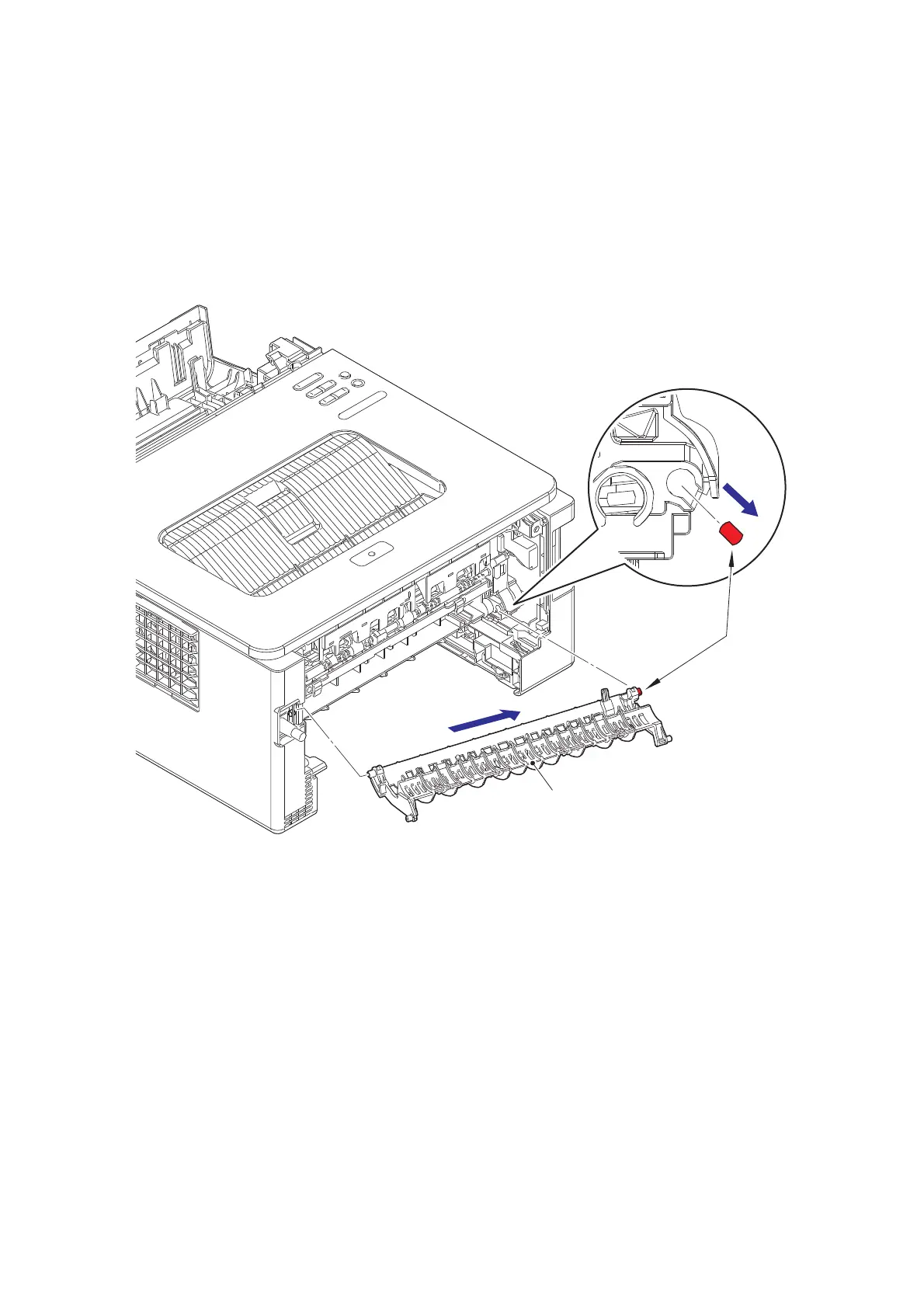

(1) Pull out the right side of the Outer chute ASSY in the direction of the arrow A to remove the

Boss of the Outer chute ASSY, and remove the Outer chute ASSY in the direction of the

arrow B.

Fig. 3-10

Boss

Outer chute ASSY
