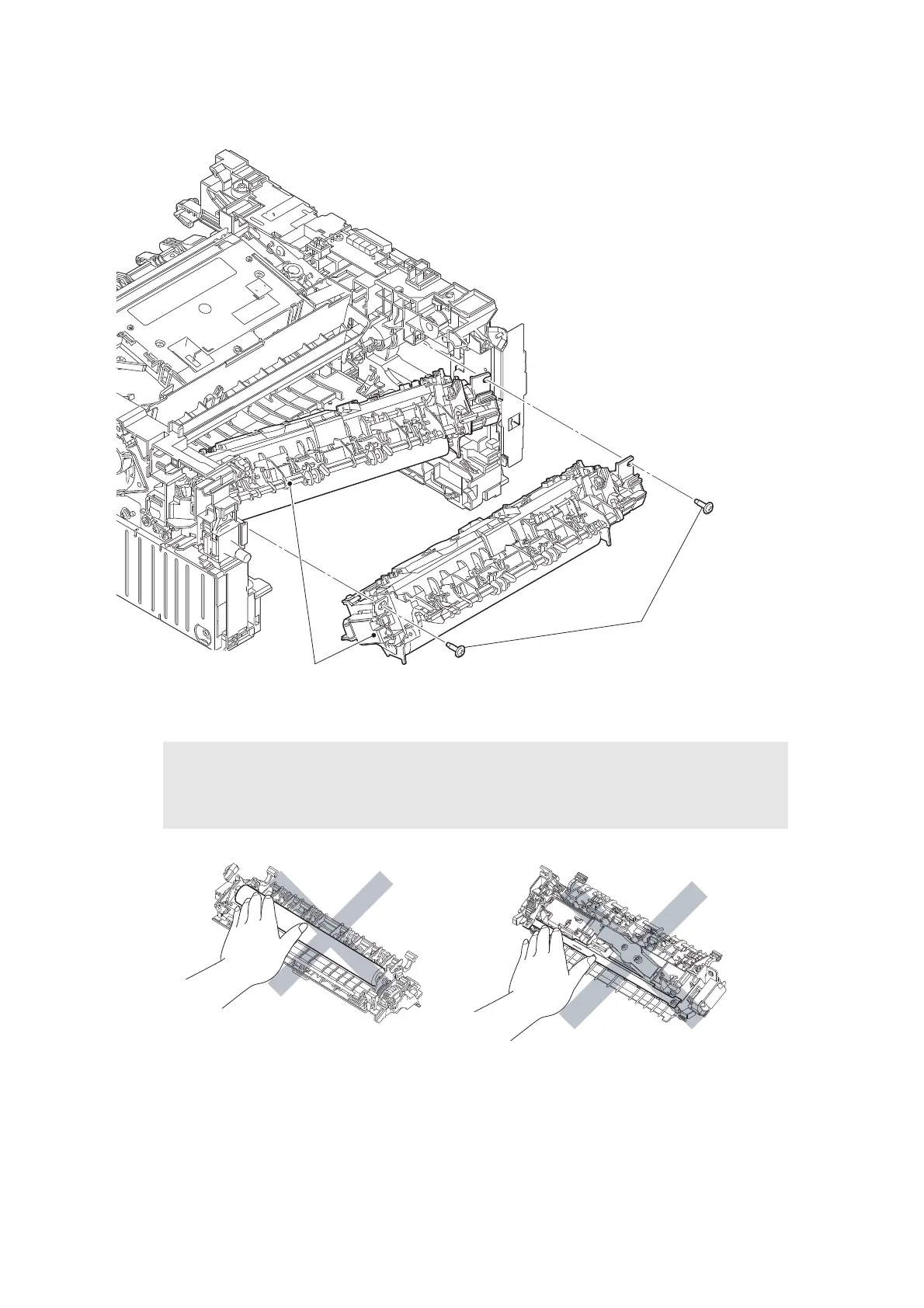

(4) Remove the two Taptite pan B M4x14 screws, and remove the Fuser unit.

Fig. 3-25

Fig. 3-26

Note:

• DO NOT apply a physical impact or vibration to the Fuser unit.

• DO NOT touch the roller and the electrodes to prevent breakage of the Fuser unit.

Taptite pan B M4x14

Fuser unit
