3-49

Confidential

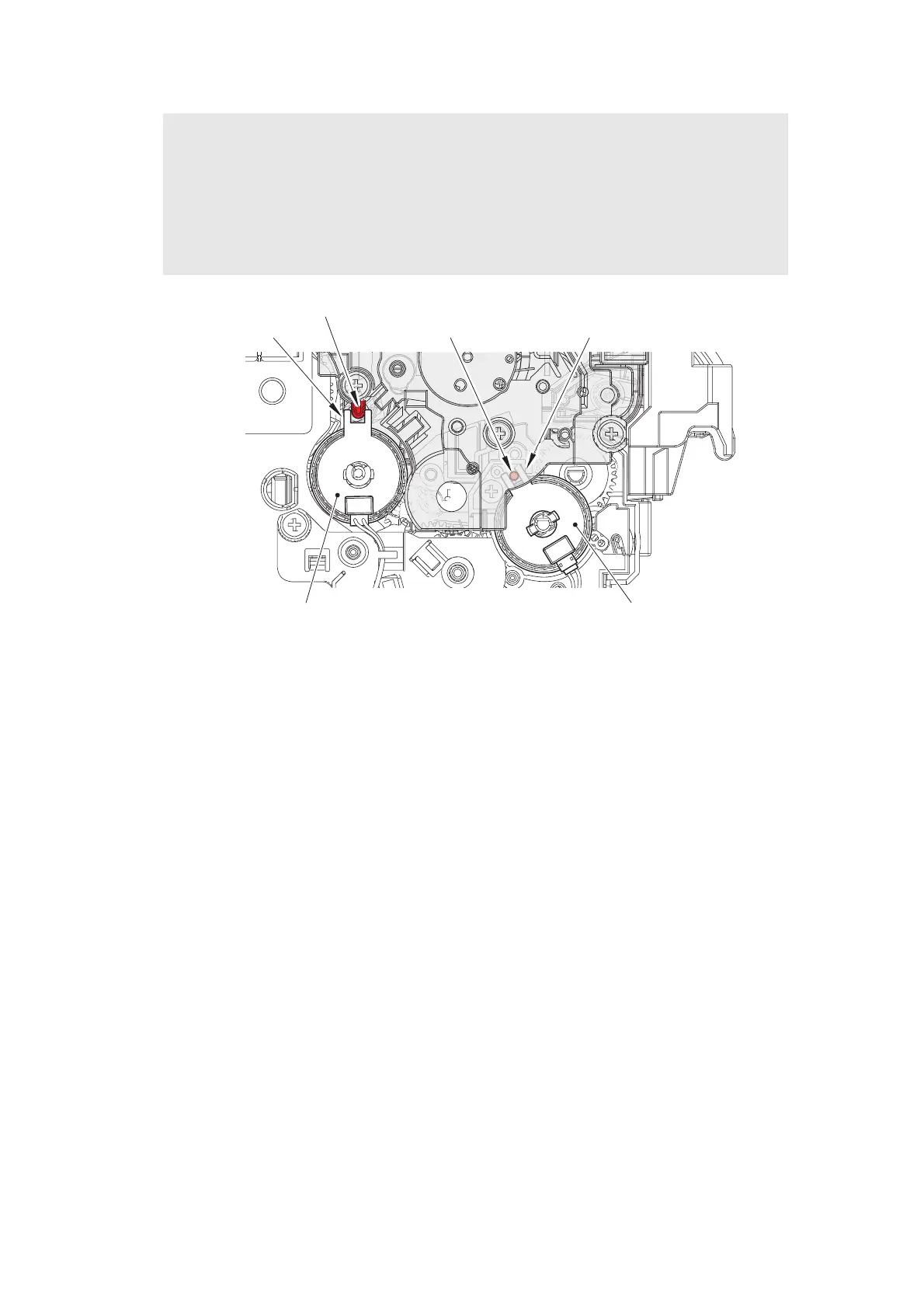

Fig. 3-47

Assembling Note:

• When securing the T1 clutch harness and the Registration clutch harness, check that

there is no harness slack.

• Attach the Rotation stopper of the T1 clutch by engaging it with the Pin of the machine

as shown in the figure below.

• Attach the Rotation stopper of the Registration clutch by engaging it with the Protruding

part of the machine as shown in the figure below.

Registration clutch

T1 clutch

Rotation stopper

Protruding part
