9.9 Top cover ASSY
(1) Disconnect the Panel flat cable and the NFC flat cable (only for models with NFC) from the
Main PCB ASSY.
(2) Remove the three Taptite bind B M4x12 screws.
(3) Release the Hooks on the Top cover ASSY in order of the Hook A to D, and remove the
Top cover ASSY in the direction of the arrow.
(4) Remove the Paper stopper from the Top cover ASSY.

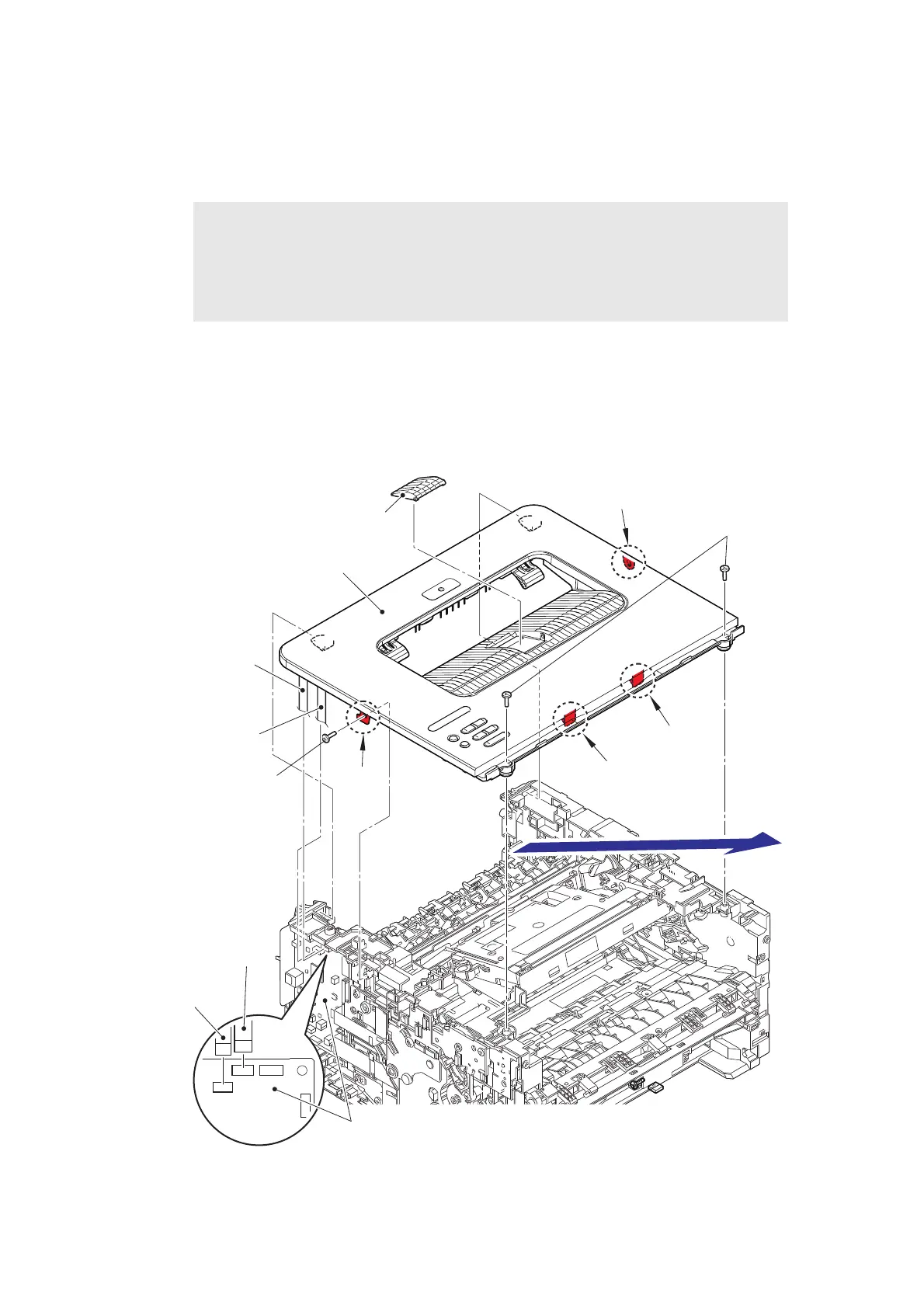

Fig. 3-19
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Top cover ASSY
Hook A
Panel flat cable
Taptite bind
B M4x12
Main PCB ASSY
Hook C
Hook D
Hook B
Panel flat
cable
Taptite bind
B M4x12
Paper stopper
NFC flat cable
(Only for models
with NFC)
NFC flat cable
(Only for models
with NFC)
