2-1
Confidential
CHAPTER 2 ERROR INDICATIONS AND
TROUBLESHOOTING
1. INTRODUCTION
Troubleshooting is the countermeasure procedures that the service personnel should follow if
an error or malfunction occurs with the machine. It is impossible to anticipate all of the possible
troubles which may occur in future and determine the troubleshooting procedures, so this
chapter covers some sample troubles. However, those samples will help the service personnel
pinpoint and repair other defective elements.
1.1 Precautions
Be sure to observe and follow all the precautions to prevent any secondary problems from
happening during troubleshooting.
(1) Always turn OFF the power and unplug the power cable before removing any covers or
PCBs, adjusting the machine and so on. If you need to take voltage measurements with the
power switched on, take the greatest of care not to receive an electric shock.
(2) When connecting or disconnecting cable connectors, make sure that you hold the
connector body and not the cables.
(3) Static electricity charged in your body may damage electronic parts. Before handling the
PCBs, touch a metal portion of the machine to discharge static electricity charged in your
body. When transporting PCBs, be sure to wrap them in conductive sheets.
When replacing the PCBs, put on a grounding wrist band and perform the job on an
antistatic mat. Also take care not to touch the conductor sections on the flat cables.
(4) Follow the warning by all means.

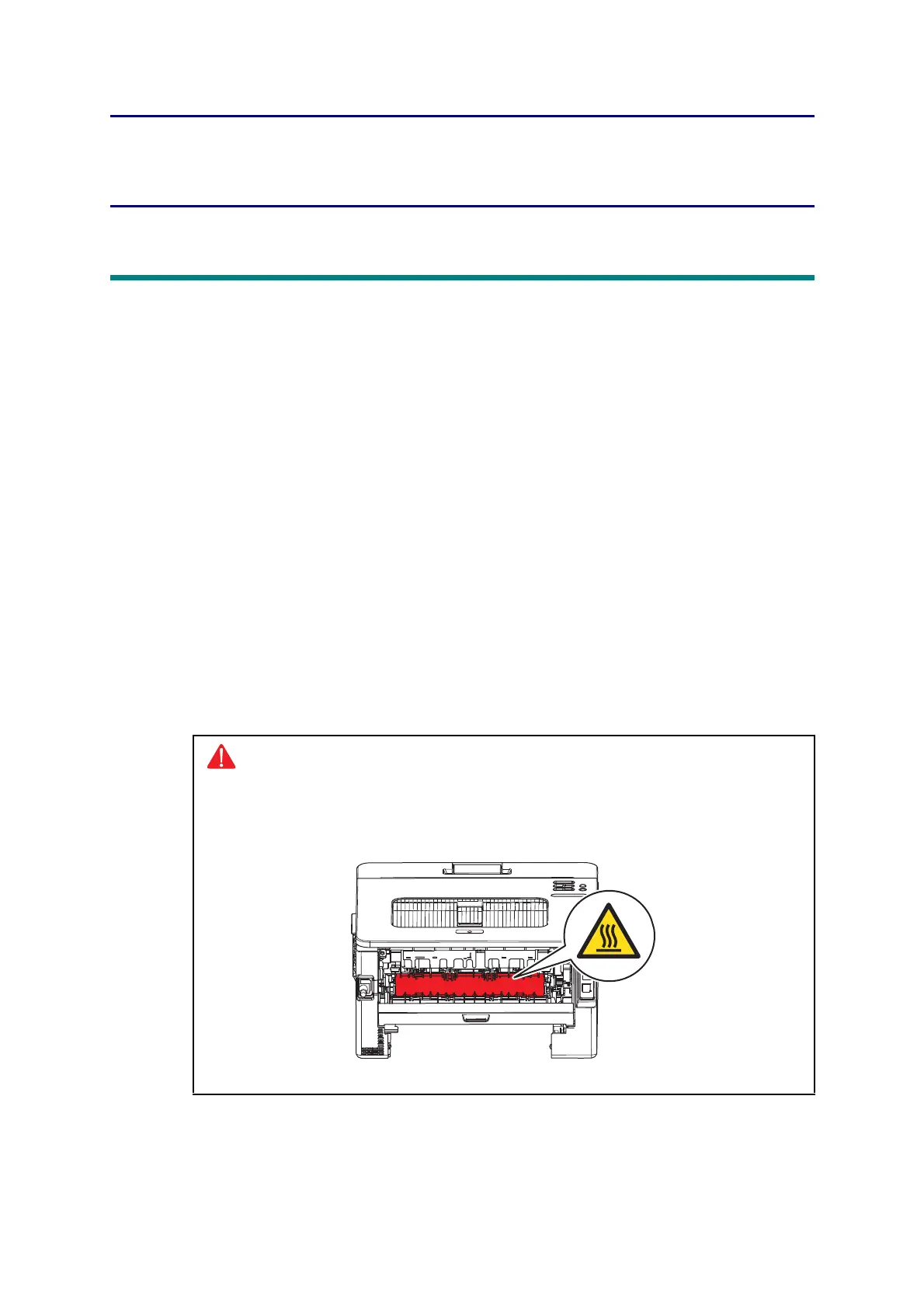

Warning
Hazard labels as shown below are attached to the machine. Fully understand the
descriptions on the hazard labels and observe them during troubleshooting.
Take extreme care not to remove or damage the hazard labels.

Brother HL-L2372DN Specifications

General

Color	No
N-up printing	2, 4, 6, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Warm-up time (from sleep mode)	9 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Sustainability certificates	Blue Angel, ENERGY STAR
Display	LCD
Certification	Nordic Swan, GS Mark
Product color	Black
Market positioning	Home & office
Display number of lines	1 lines
Internal memory	64 MB
Noise level (ready)	30 dB
Maximum internal memory	- MB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Power consumption (off)	0.03 W
Power consumption (ready)	48 W
Power consumption (standby)	6 W
Power consumption (printing)	510 W
Energy Star Typical Electricity Consumption (TEC)	1.227 kWh/week
Printer fonts	Barcode, Bitmap, PCL, Scalable
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Page description languages	PCL 6
Quantity per pack	1 pc(s)
Package depth	360 mm
Package width	356 mm
Package height	183 mm
Package weight	7200 g
Cables included	AC
Included cartridge capacity (black)	700 pages
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	1
Multi-Purpose tray input capacity	1 sheets

Weight and Dimensions

Depth	283 mm
Width	438 mm
Height	519 mm
