9.22 Frame L unit
 Manual feed models
(1) Remove the two Taptite bind B M4x12 screws and the Screw pan (S/P washer) M3x12DB
screw, and remove the Front chute ASSY.
(2) Release the LVPS harness, the Cartridge sensor harness (only for models without Toner
box) and the Paper feed sensor harness from the securing fixtures.
(3) Remove the Regist FG spring from the Motor drive sub ASSY and the Conductive bushing 5.
(4) Use a flat-blade screwdriver or similar tool to release the Hook from the Hole, and remove
the Conductive bushing 5.
(5) Release the Hook, and remove the Feeder gear 34.

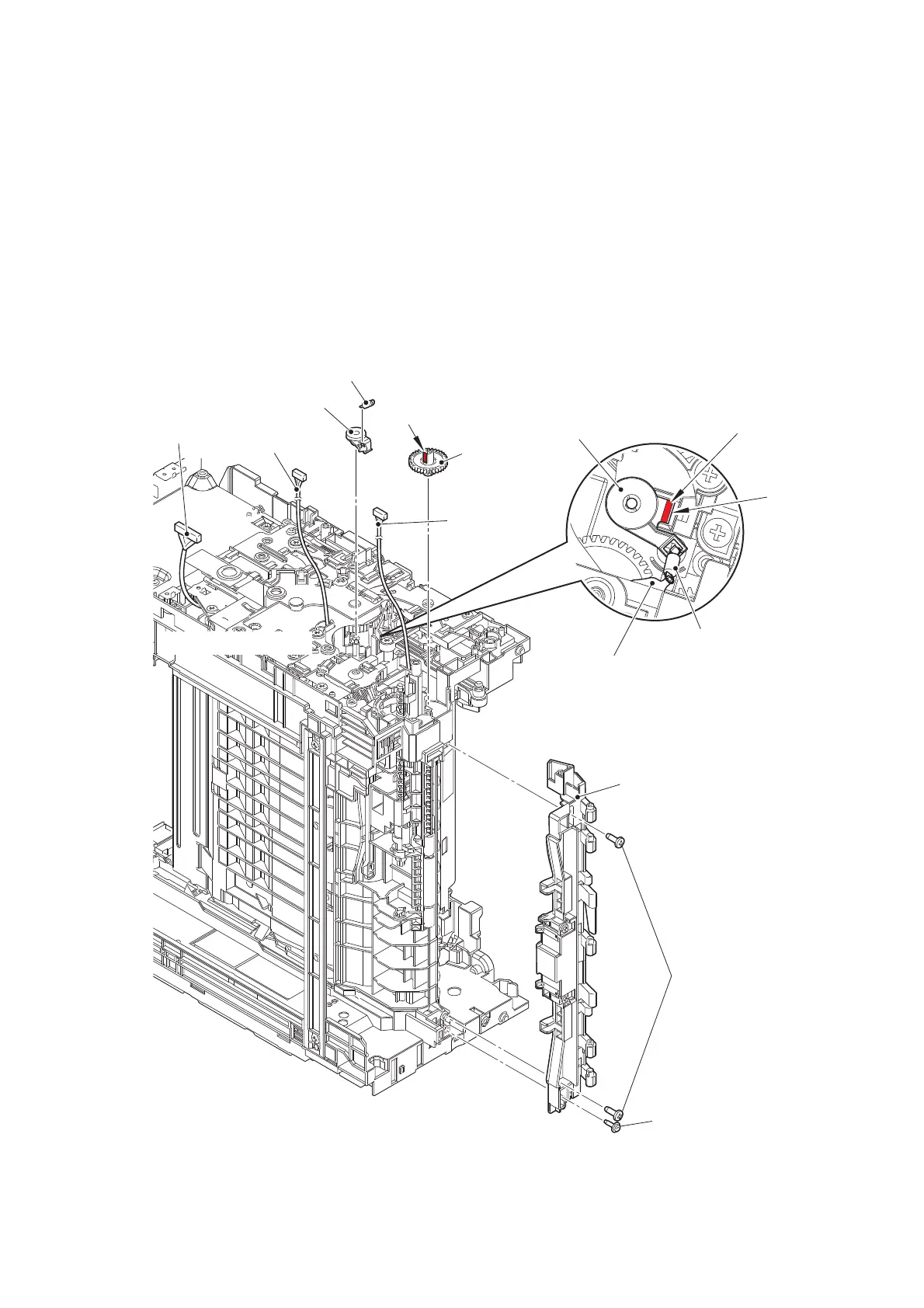

Fig. 3-48
Harness routing: Refer to “4. Frame L unit (Manual feed models)”.
Taptite bind B M4x12
Front chute ASSY
Hook
Regist FG spring
Conductive bushing 5
Conductive bushing 5
Feeder gear 34
<Front side>
Hook
Screw pan (S/P washer)
M3x12DB
Motor drive sub ASSY
Regist FG spring
LVPS
harness
Paper feed
sensor harness
<Upper side of Frame L>
Hole
Cartridge sensor
harness (Only for models
without Toner box)

Brother HL-L2372DN Specifications

General

Color	No
N-up printing	2, 4, 6, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Warm-up time (from sleep mode)	9 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Sustainability certificates	Blue Angel, ENERGY STAR
Display	LCD
Certification	Nordic Swan, GS Mark
Product color	Black
Market positioning	Home & office
Display number of lines	1 lines
Internal memory	64 MB
Noise level (ready)	30 dB
Maximum internal memory	- MB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Power consumption (off)	0.03 W
Power consumption (ready)	48 W
Power consumption (standby)	6 W
Power consumption (printing)	510 W
Energy Star Typical Electricity Consumption (TEC)	1.227 kWh/week
Printer fonts	Barcode, Bitmap, PCL, Scalable
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Page description languages	PCL 6
Quantity per pack	1 pc(s)
Package depth	360 mm
Package width	356 mm
Package height	183 mm
Package weight	7200 g
Cables included	AC
Included cartridge capacity (black)	700 pages
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	1
Multi-Purpose tray input capacity	1 sheets

Weight and Dimensions

Depth	283 mm
Width	438 mm
Height	519 mm
