9.23 Paper feed motor / Paper feed motor flat cable
(1) Release the Paper feed motor flat cable and the Front cover sensor harness from the
securing fixtures.
(2) Remove the Taptite bind B M4x12 screw. Release the Hook, and slide the Flat cable guide
in the direction of the arrow to remove it from the Motor drive sub ASSY.
(3) Remove the Screw pan (S/P washer) M3x12DB, and remove the Laser L FG plate from the
Motor drive sub ASSY.
(4) Remove the three Taptite bind B M4x12 screws and the Taptite cup S M3x8 SR screw, and
remove the Motor drive sub ASSY from the Frame L unit.

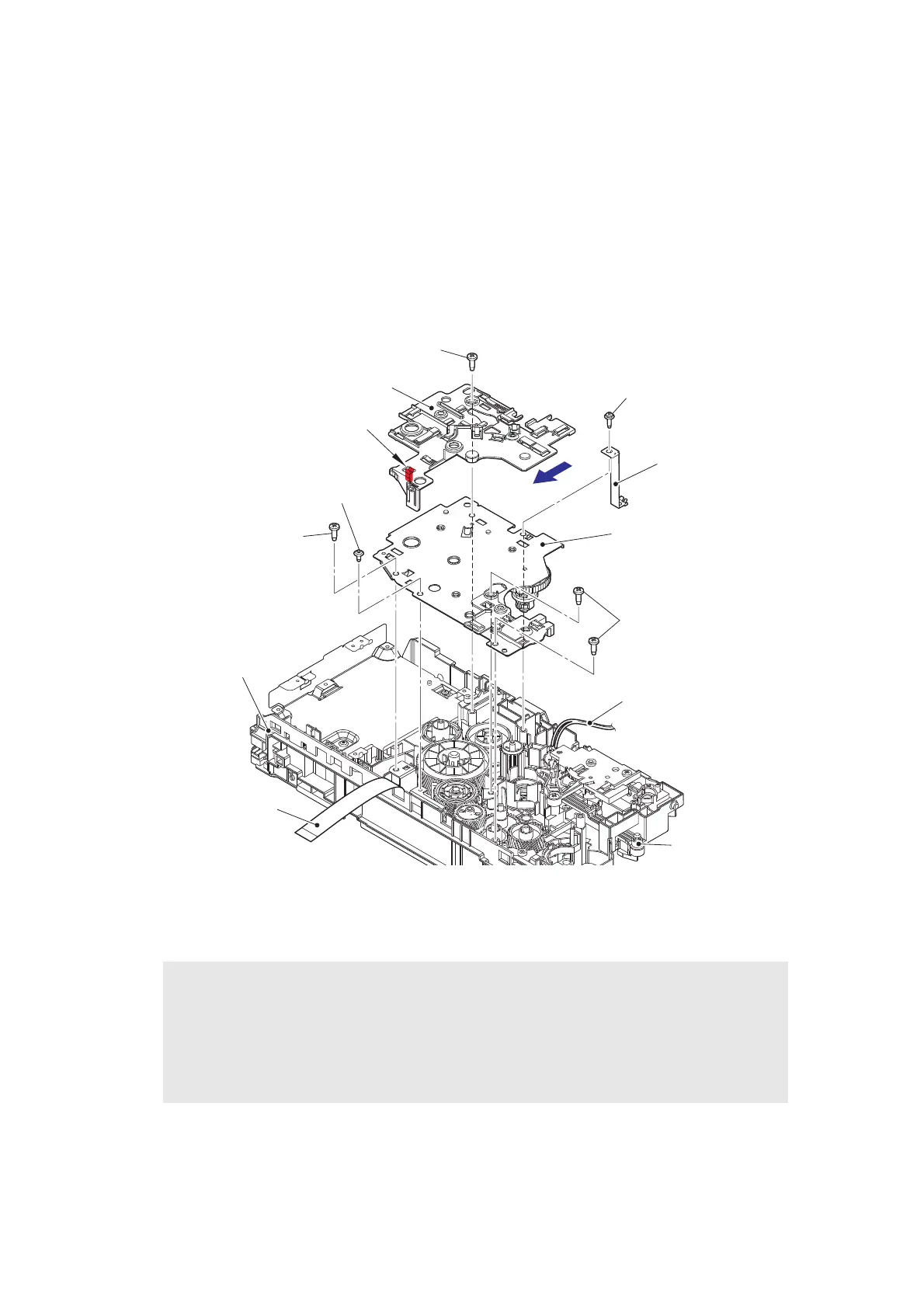

Fig. 3-51
Harness routing: Refer to “4. Frame L unit (Manual feed models)”.
Assembling Note:
• Be careful not to bend the Laser L FG plate.
• Attach the Motor drive sub ASSY to the Frame L unit while the Develop joint link is
pushed. Pull the Develop joint link back before tightening the screws for the Motor drive
sub ASSY. Failure to follow the procedure above may get the Develop joint link caught
and jammed.
Screw pan (S/P washer)
M3x12DB
Flat cable guide
Laser L FG plate
Taptite bind B M4x12
Motor drive sub ASSY
Hook
Taptite bind B M4x12
Taptite bind B M4x12
Frame L unit
Develop joint link
Taptite cup S M3x8 SR
Front cover sensor harness
Paper feed motor flat cable

Brother HL-L2372DN Specifications

General

Color	No
N-up printing	2, 4, 6, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Warm-up time (from sleep mode)	9 s
Print speed (black, normal quality, A4/US Letter)	34 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Sustainability certificates	Blue Angel, ENERGY STAR
Display	LCD
Certification	Nordic Swan, GS Mark
Product color	Black
Market positioning	Home & office
Display number of lines	1 lines
Internal memory	64 MB
Noise level (ready)	30 dB
Maximum internal memory	- MB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
Power consumption (off)	0.03 W
Power consumption (ready)	48 W
Power consumption (standby)	6 W
Power consumption (printing)	510 W
Energy Star Typical Electricity Consumption (TEC)	1.227 kWh/week
Printer fonts	Barcode, Bitmap, PCL, Scalable
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Page description languages	PCL 6
Quantity per pack	1 pc(s)
Package depth	360 mm
Package width	356 mm
Package height	183 mm
Package weight	7200 g
Cables included	AC
Included cartridge capacity (black)	700 pages
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	1
Multi-Purpose tray input capacity	1 sheets

Weight and Dimensions

Depth	283 mm
Width	438 mm
Height	519 mm
