(7) Release the Hook to remove the ADF FFC holder while opening the Document scanner

unit.

(8) Open the Document scanner unit approximately 30 degrees, and remove it by lifting it up.

Pull out the Document scanner motor harness and the ADF sensor harness unit from each

Hole on the Joint cover.

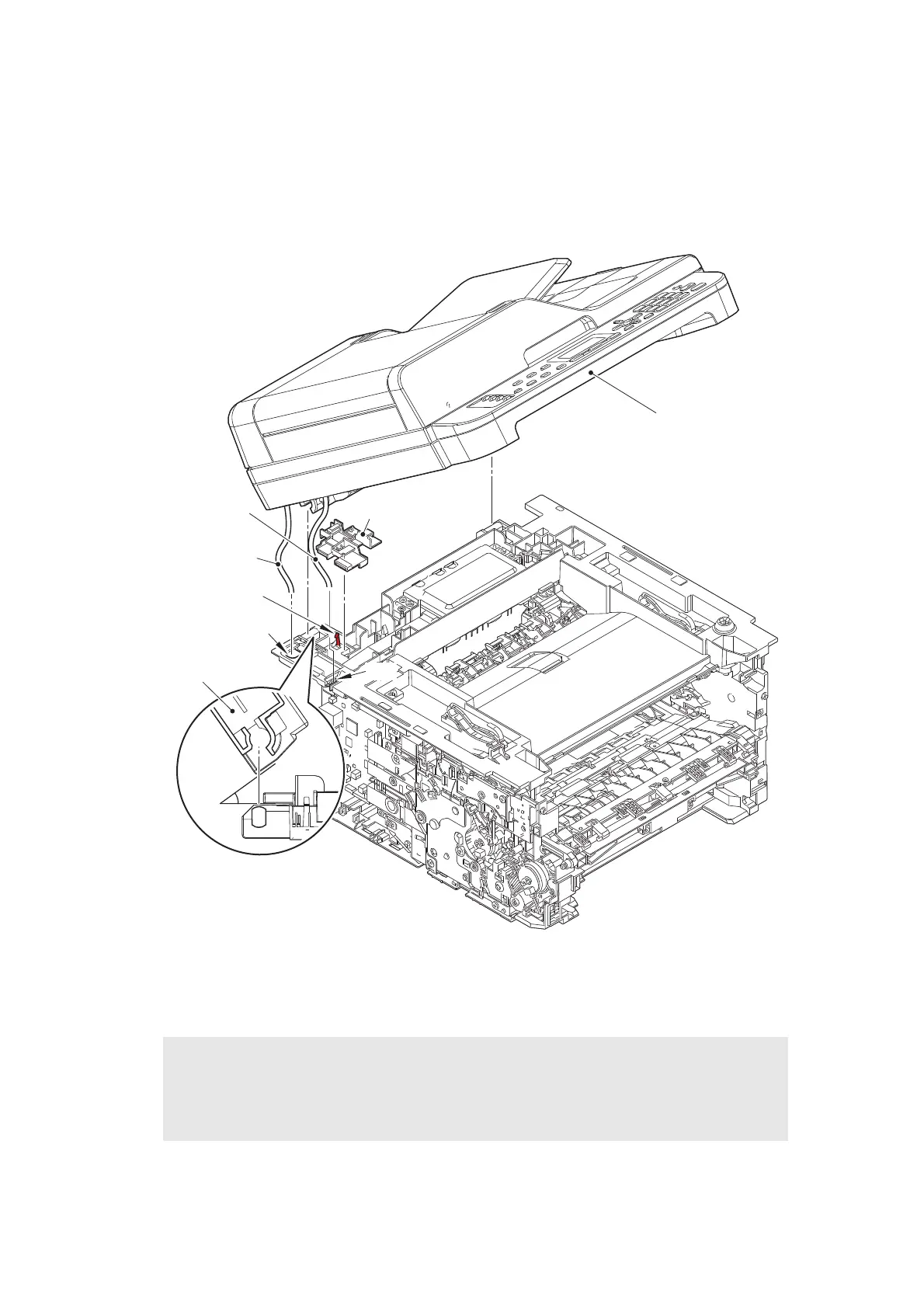

Fig. 3-27

Harness routing: Refer to “2. ADF unit”, “3. Document scanner unit”.

Assembling Note:

• If you replaced the Document scanner unit, refer to “5. IF YOU REPLACE THE ADF

UNIT, FIRST SIDE CIS UNIT, SECOND SIDE CIS UNIT OR DOCUMENT SCANNER

UNIT” in Chapter 4 to configure settings.

Hook

ADF FFC holder

30°

Document scanner unit

Document

scanner unit

Document scanner

motor harness

ADF sensor

harness unit

Hole
