3-49
Confidential
(2) Remove the Screw cup M3x6 (black) screw to remove the ADF ground harness and the
Ground spring from the Lower document chute.
(3) Release the ADF sensor harness unit from the securing fixtures, and pull it out from the
Hole of the Document cover.
(4) Remove the Lower document chute from the Document cover, and pull out the Second
side CIS flat cable from the Hole of the Document cover.

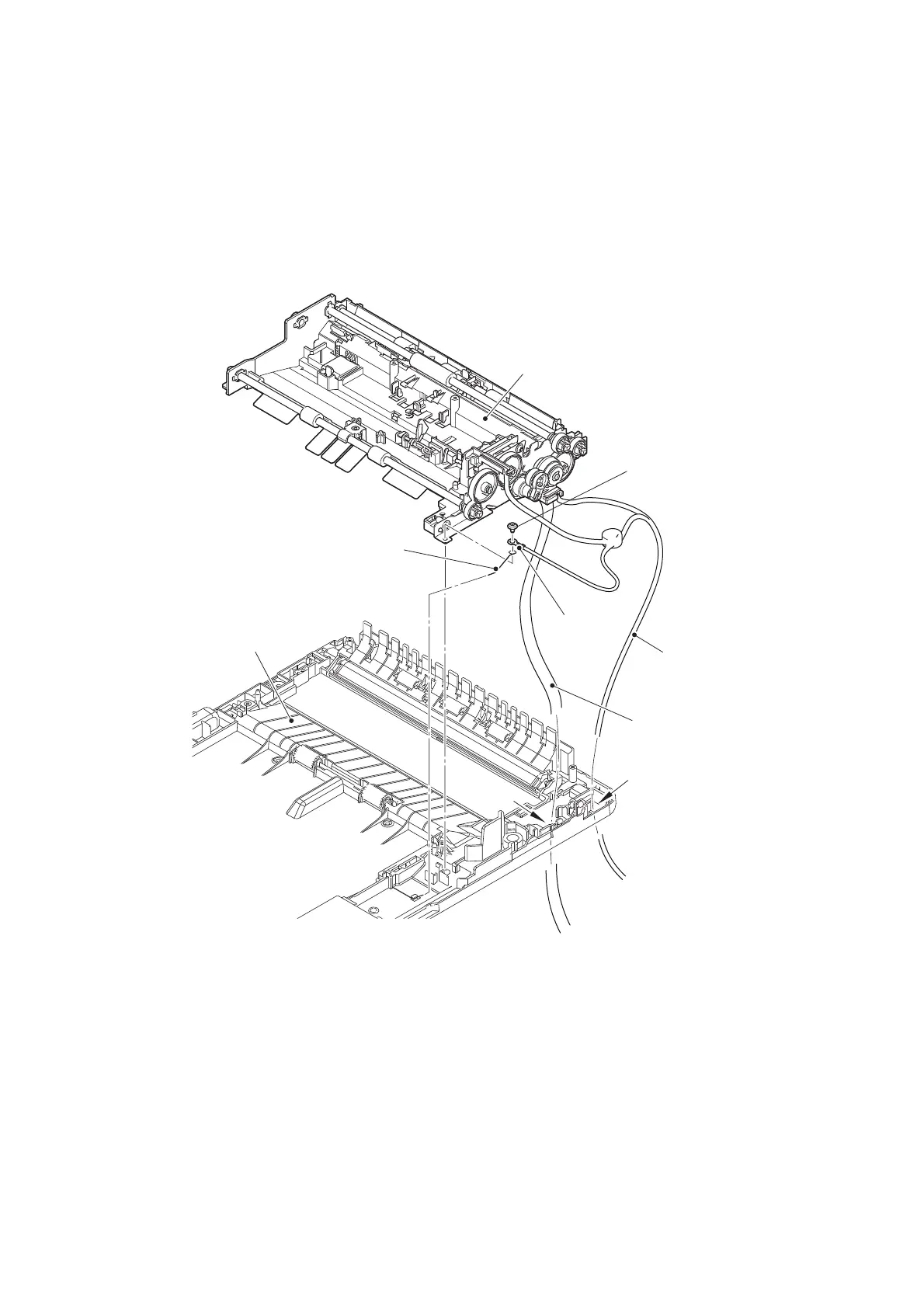

Fig. 3-40
Harness routing: Refer to “2. ADF unit”.
Lower document chute
Document cover
Ground spring
Screw cup
M3x6 (black)
ADF ground
harness
ADF sensor
harness unit
Second side
CIS flat cable
Hole
Hole
To Next Page
