3-50

Confidential

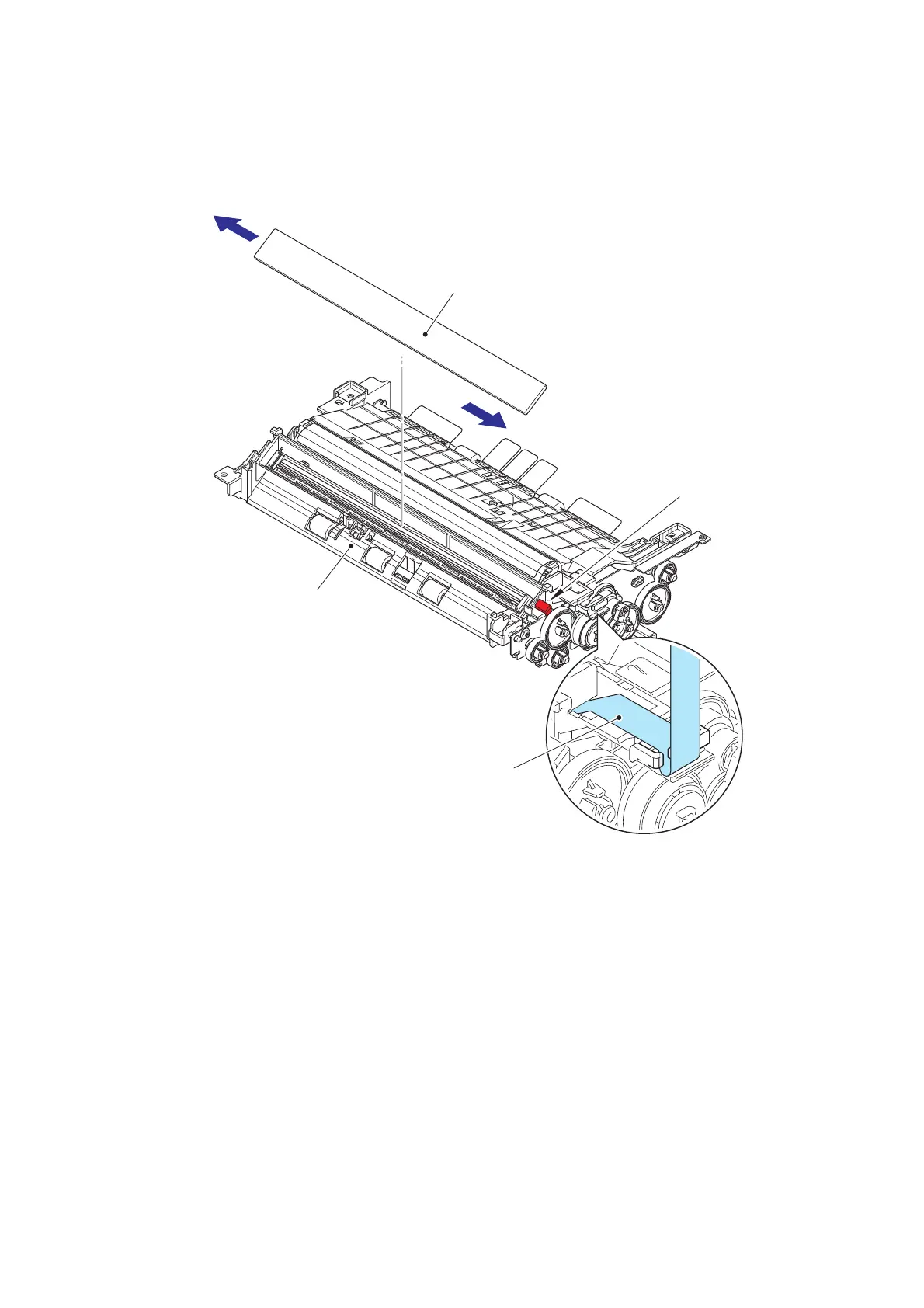

(5) Release the Second side CIS flat cable from the securing fixtures.

(6) Lift the Hook and slide the Second side scanner glass strip in the direction of the arrow 6a.

Lift the left end of the Second side scanner glass strip to remove it in the direction of the

arrow 6b.

Fig. 3-41

Second side scanner glass strip

Hook

Second side CIS flat cable

Lower document chute
