3-62

Confidential

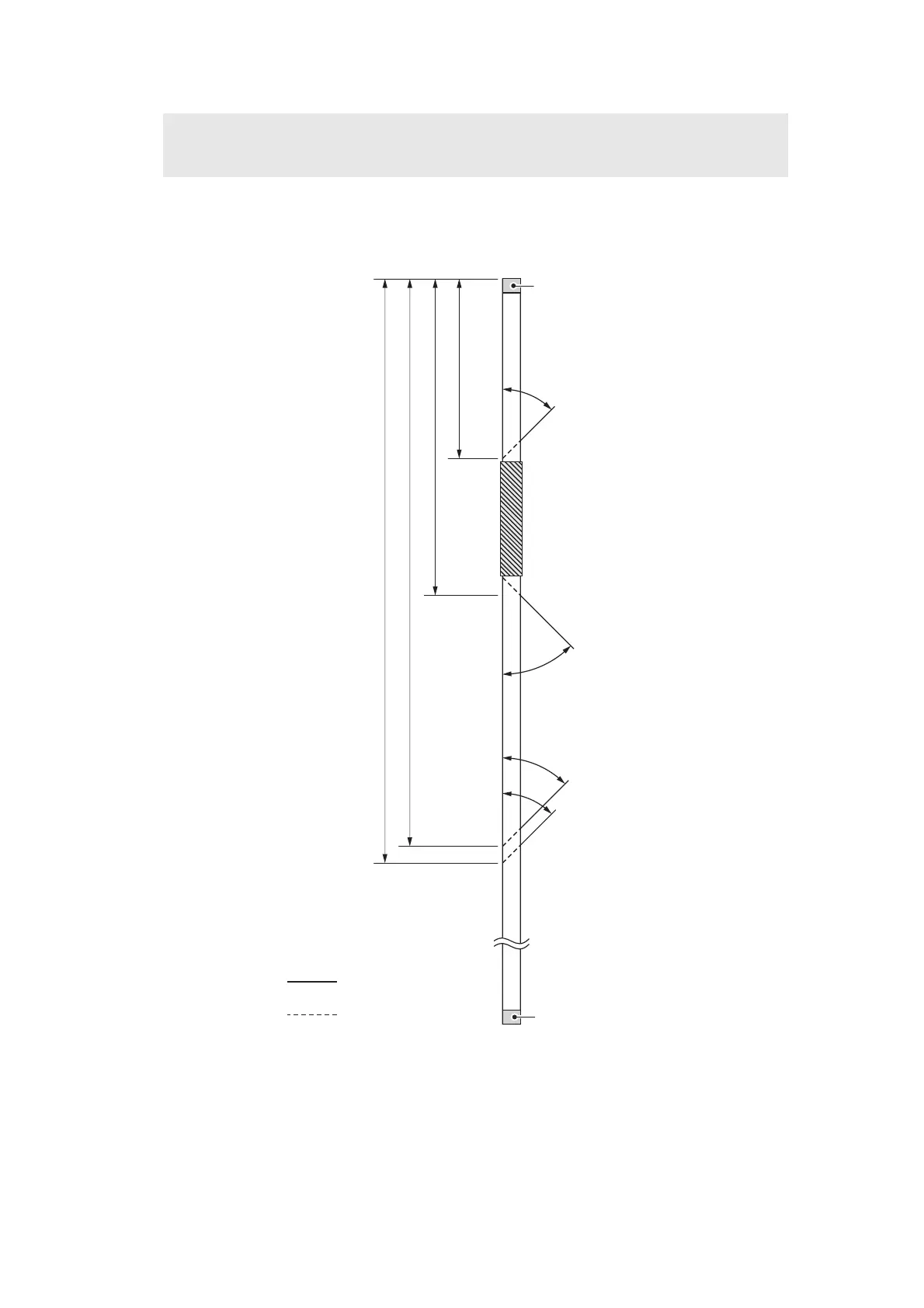

Fig. 3-54

Assembling Note:

• Fold the Panel flat cable at the positions described below.

45°

127±1

45°

45°

45°

223±1

401±2

413±2

<Panel side>

Mountain fold

Valley fold

Reinforcing plate

Reinforcing plate

<Main PCB side>
