(5) Remove the First side CIS flat cable from the back of the CIS carriage.

(6) Remove the First side CIS flat cable from the Document scanner bottom cover ASSY.

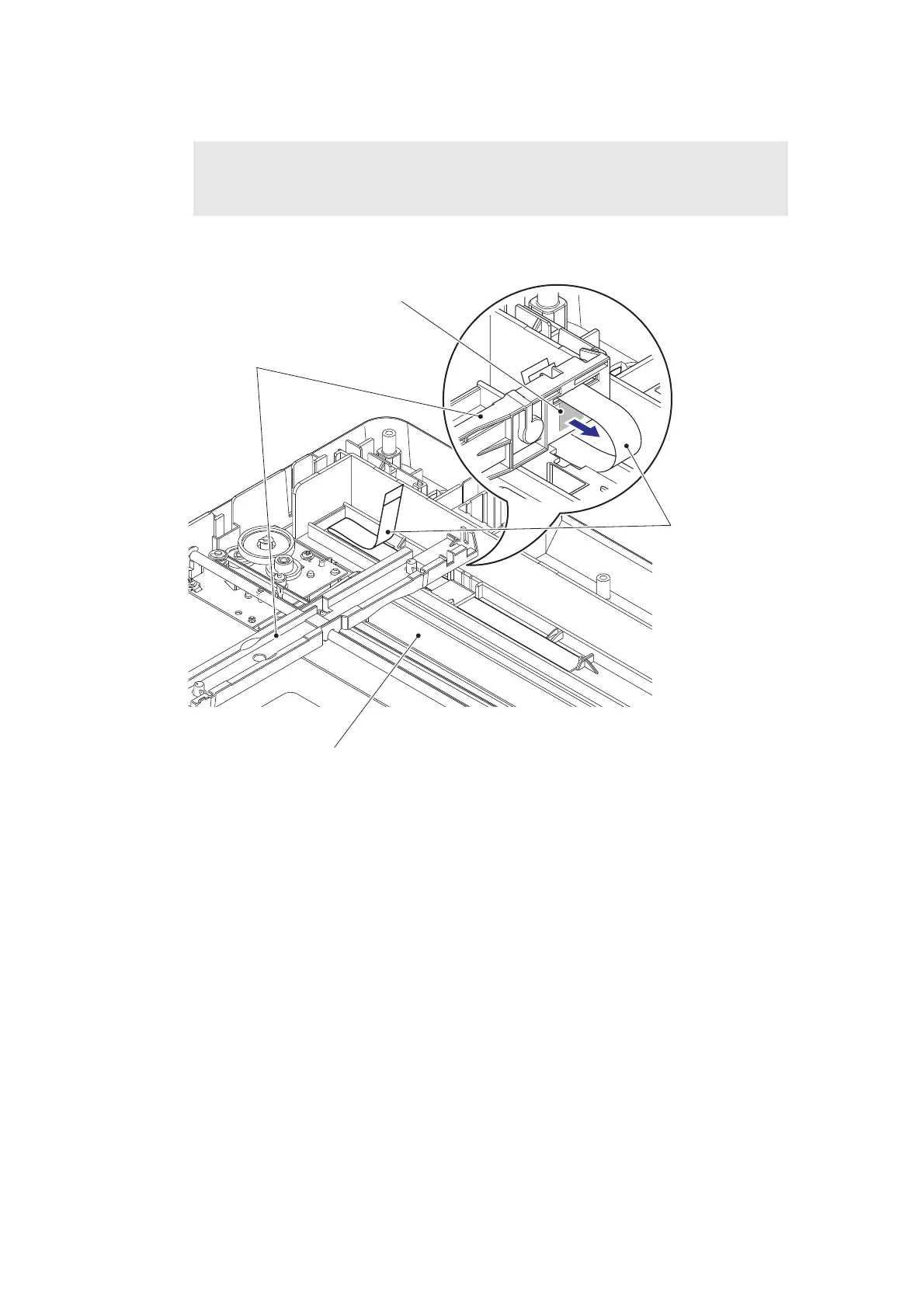

Fig. 3-56

Harness routing: Refer to “6. First side CIS unit, Panel”.

Note:

• Be sure to replace the Double-sided tape with a new one, after taking off the

Double-sided tape from the CIS carriage.

First side CIS

flat cable

CIS carriage

Double-sided tape

Document scanner bottom cover ASSY
