Brother MFC 6890CDW User Manual

Chapter 1
6

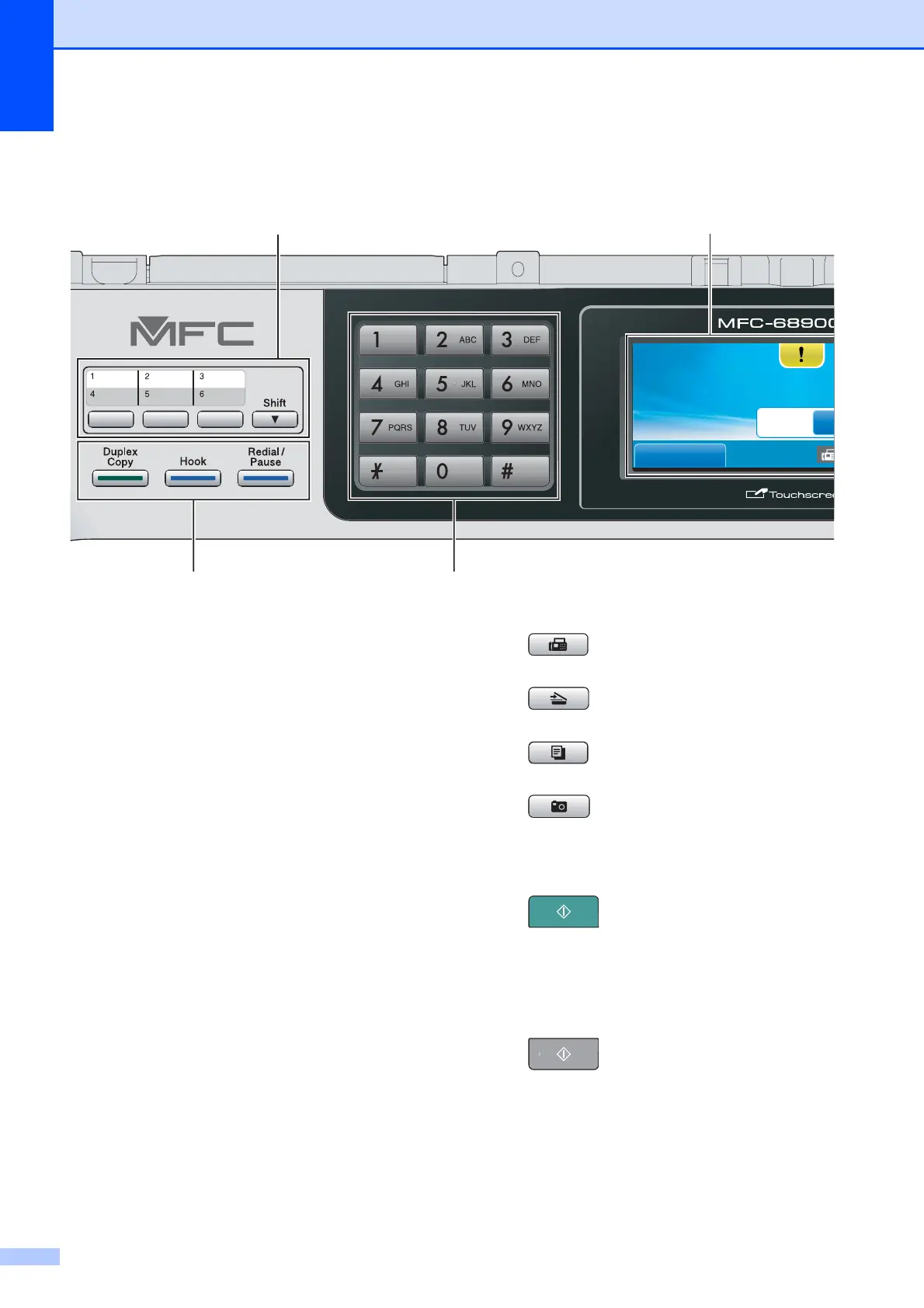

Control panel overview 1
1 Fax and telephone keys:
 Duplex Copy
Press this key to copy on both sides of the
paper.
 Hook
Press before dialing if you want to make
sure a fax machine will answer, and then
press Mono Start or Colour Start.
Also, press this key after picking up the
handset of an external telephone during the
F/T pseudo/double-ring.
 Redial/Pause
Redials one of the last 30 numbers called.
It also inserts a pause when dialling.
2Dial Pad
Use these keys to dial telephone and fax
numbers and as a keyboard for entering
information into the machine.
This function transfers to the touchscreen
during some operations.
The # key lets you temporarily switch the
dialling mode during a telephone call from
Pulse to Tone. (Not Available in New Zealand)
3 Mode keys:
 Fax
Lets you access Fax mode.
 Scan
Lets you access Scan mode.
 Copy
Lets you access Copy mode.
 Photo Capture
Lets you access PhotoCapture Center™
mode.
4 Start keys:
 Colour Start
Lets you start sending faxes or making
copies in full colour. Also lets you start a
scanning operation (in colour or mono,
depending on the scanning setting in the
ControlCenter software).
 Mono Start
Lets you start sending faxes or making
copies in monochrome. Also lets you start a
scanning operation (in colour or mono
depending on the scanning setting in the
ControlCenter software).
History
New FaxNew Fax
0101
F
a
Pre
v
Mem.
06:11
06:11
01.01.2009
27.01.2009
21
7
8

Brother MFC 6890CDW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Digital sender	No
Number of print cartridges	4
Scan to	E-mail, FTP, USB
Duplex scanning	Yes
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, PNG
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	33.6 Kbit/s
Total input capacity	350 sheets
Total output capacity	50 sheets
Display diagonal	4.2 \
Market positioning	Home & office
Processor family	RISC
Sound pressure level (printing)	50 dB
Media weight (tray 1)	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5
Borderless printing media sizes	A3, A4, A6
Maximum ISO A-series paper size	A3
Scan speed	4.49 sec/page
Dimensions (WxDxH)	540 x 488 x 323 mm
Power requirements	AC 220 -240V, 50/60Hz
Networking features	10/100 Base-TX
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition/Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. Mac OS X 10.2 & later Linux: for CUPS printing system (x86, x64 environment) Printer & scanner driver
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS Resolver, mDNS, FTP Server, TELNET, SNMPv1, TFTP, Scanner Port, LLTD, responder, Web Services, SMTP Client, POP before SMTP, SMTP-AUTH, POP3, APOP, FTP Client, LDAP
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	6.4 W
Power consumption (PowerSave)	4.5 W
Power consumption (average operating)	29 W
Operating relative humidity (H-H)	20 - 80 %
Package weight	22100 g
Bundled software	Brother MFL-pro suite in Windows: BrotherControlCentre 3 Scansoft Paperport 11SE + OCR, Macintosh:BrotherControlCentre 2 Newsoft Presto! Page manager 7
