Brother MFC-7360N Service Manual

3-1
Confidential
1. SAFETY PRECAUTIONS
To avoid creating secondary problems by mishandling, follow the warnings and precautions
below during maintenance work.
• Be careful not to lose screws, washers, or other parts removed.
• Be sure to apply grease to the gears and applicable positions specified in this chapter.
• When using soldering irons or other heat-generating tools, take care not to accidentally
damage parts such as wires, PCBs and covers.
• Static electricity charged in your body may damage electronic parts. When transporting
PCBs, be sure to wrap them in conductive sheets.
• When replacing the PCB and all the other related parts, put on a grounding wrist band and
perform the job on a static mat. Also take care not to touch the conductor sections on the
flat cables or on the wire harness.
• After disconnecting flat cables, check that each cable is not damaged at its end or
shortcircuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check that the
cable are not at an angle.
• When connecting or disconnecting cable connectors, hold the connector body, not the
cables. If the connector has a lock, release the connector lock first to release it.
• After a repair, check not only the repaired portion but also all connectors. Also check that
other related portions are functioning properly before operational checks.
• Violently closing the joint cover without mounting the toner cartridge and the drum unit can
damage this product.

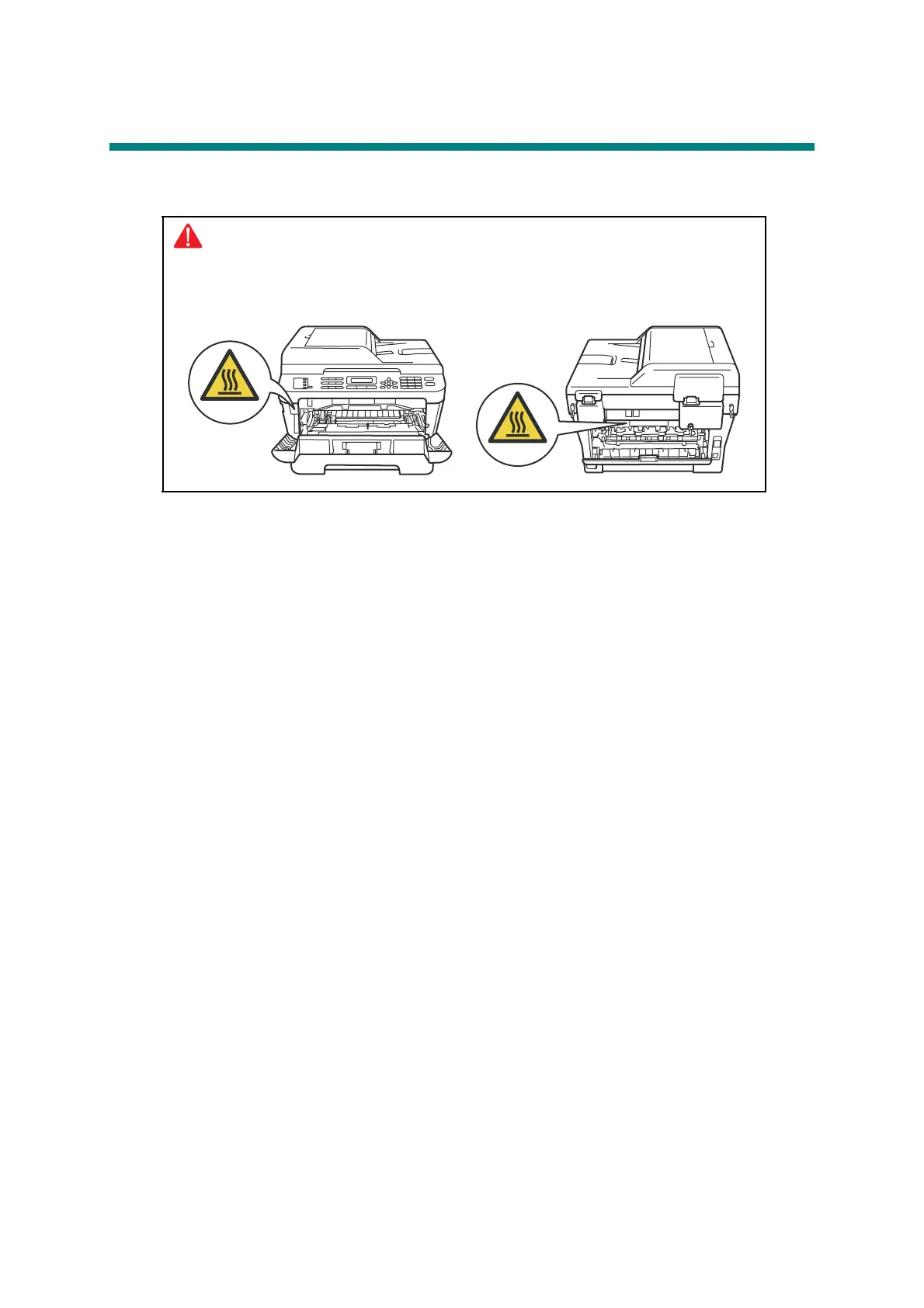

WARNING
Some parts inside the machine are extremely hot immediately after the machine is used.
When opening the front cover or back cover to access any parts inside the machine,
never touch the shaded parts shown in the following figures.

Brother MFC-7360N Specifications

General

Duplex printing	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Scan to	E-mail, File, Image, OCR
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
PC free copying	Yes
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	11 s
Copy speed (black, normal quality, A4)	24 cpm
Dimensions (WxDxH)	405 x 399 x 316 mm
All-in-one functions	Copy, Fax, Print, Scan
Compatible operating systems	Linux Mac OS X 10.4.11, 10.5.x, 10.6x Windows 7, Vista, XP, 2000
Faxing	Mono faxing
Fax memory	400 pages
Modem speed	14.4 Kbit/s
Fax speed dialing (max numbers)	208
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	35 sheets
Internal memory	32 MB
Processor family	ARM
Compatible memory cards	Not supported
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105g/m2
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP (IPv4 & IPv6)
Direct printing	-
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (standby)	0.9 W
Power consumption (PowerSave)	65 W
Power consumption (average operating)	495 W
Package weight	14800 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	10000 pages per month
