Brother MFC-7860DW

3-58
Confidential
(3) Remove the three taptite cup B M3x10 screws, and remove the drive frame ASSY SX.
(4) Release the hook to remove the gear 43.
(5) Remove the screw pan (S/P washer) M3x6 screw, and remove the ADF motor.

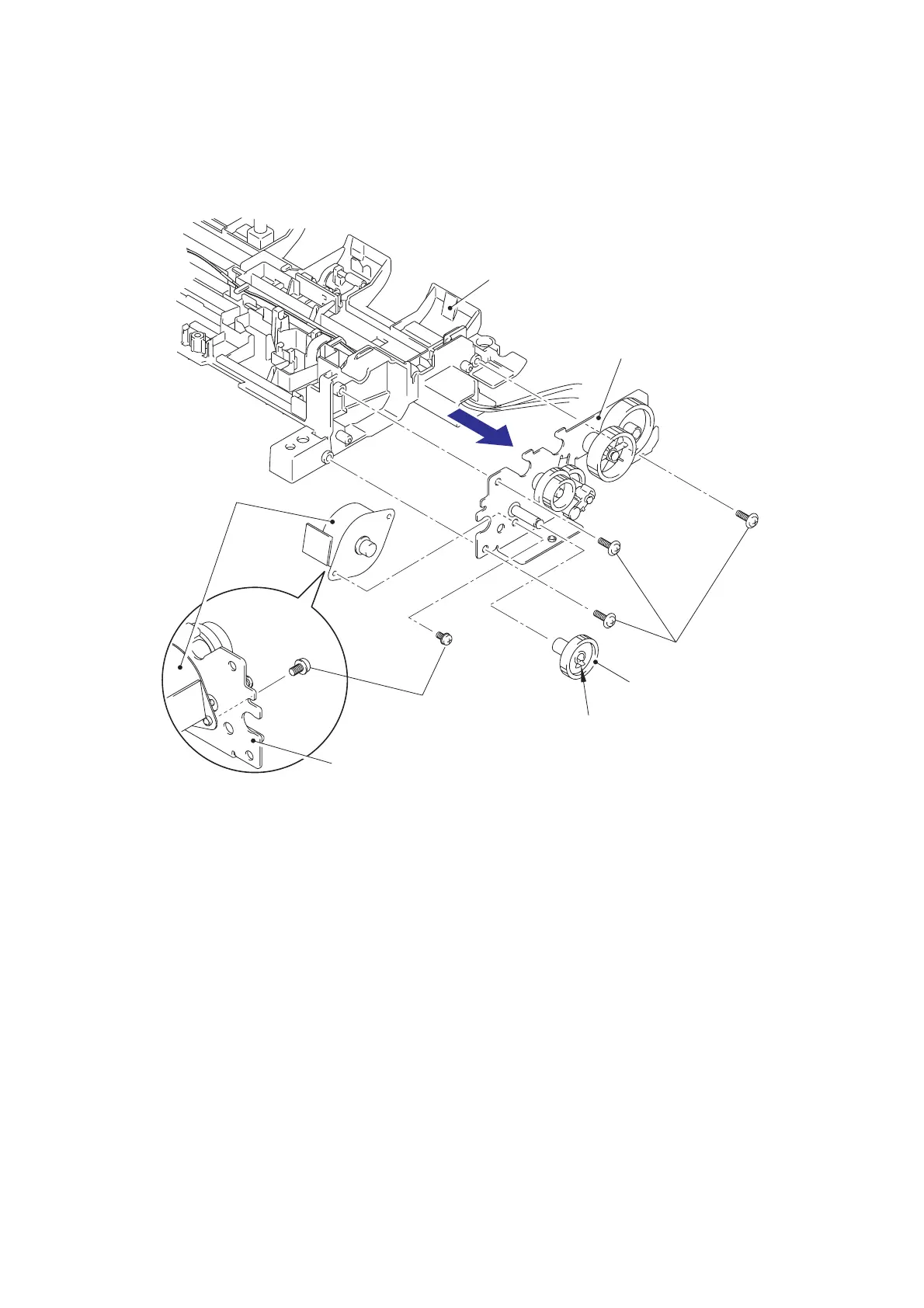

Fig. 3-43
Ejection roller bushing
Drive frame ASSY SX
Drive frame ASSY SX
Gear 43
Taptite cup B M3x10
Screw pan (S/P washer) M3x6
ADF motor
Hook
