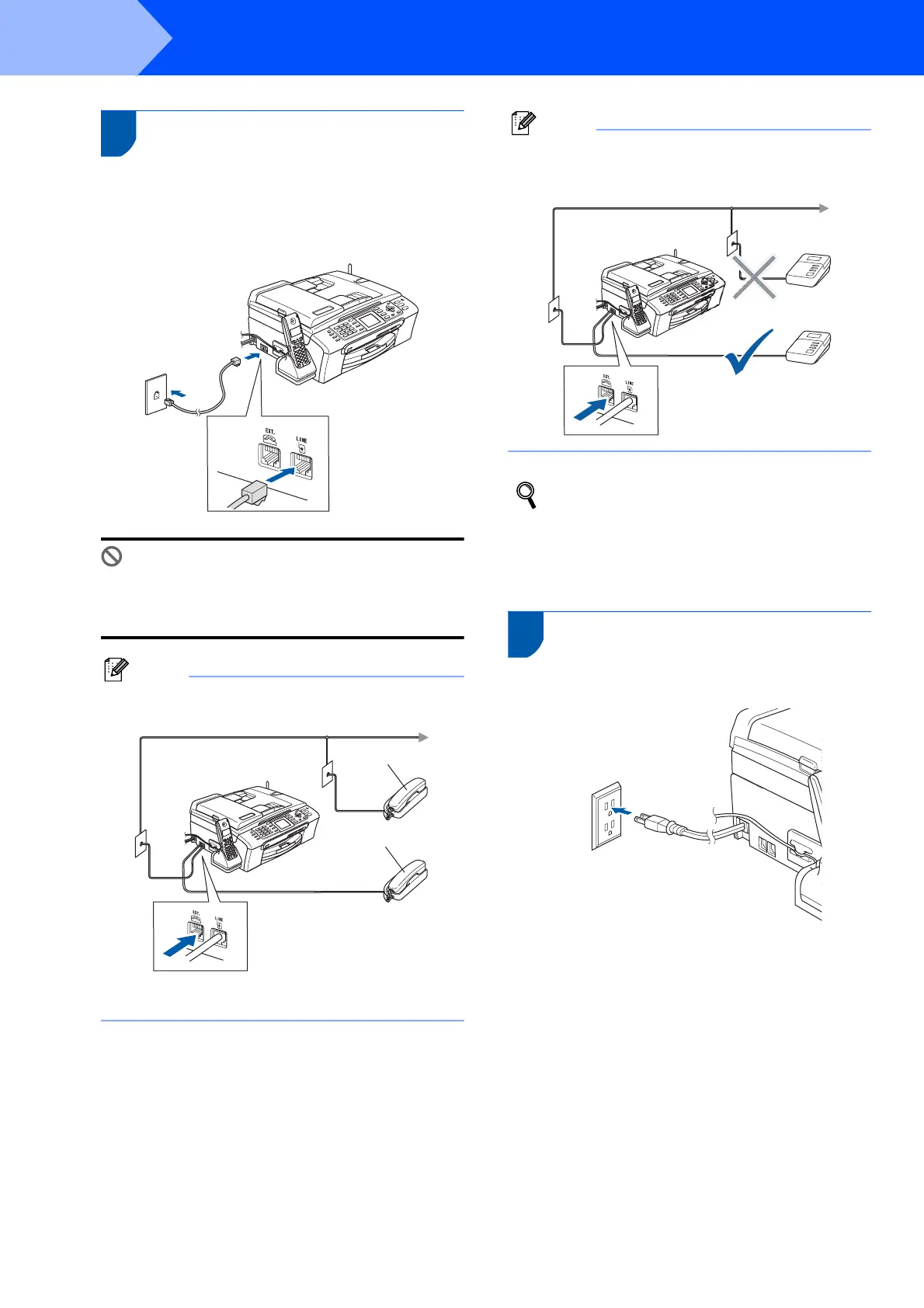

Setting Up the Machine
8
STEP1
8 Connecting the phone line
1 Connect the telephone line cord. Connect one
end of the telephone line cord to the jack on the
machine marked LINE and the other end to a
modular wall jack.
Improper Setup
DO NOT connect the interface cable.
Connecting the interface cable is done during
the software installation process.
Note
If you are sharing one phone line with an external
telephone, connect it as shown below.
1 Extension telephone
2 External telephone
Note
If you are sharing one phone line with an external
telephone answering machine, connect it as
shown below.
Set the receive mode to ‘Manual’ if you have
an external answering machine. For details,
see Connecting an external TAD (telephone
answering device) in Chapter 7 of the User’s
Guide.
9 Connecting the power cord
1 Connect the power cord.
2
1
To Next Page
