3-63
Confidential

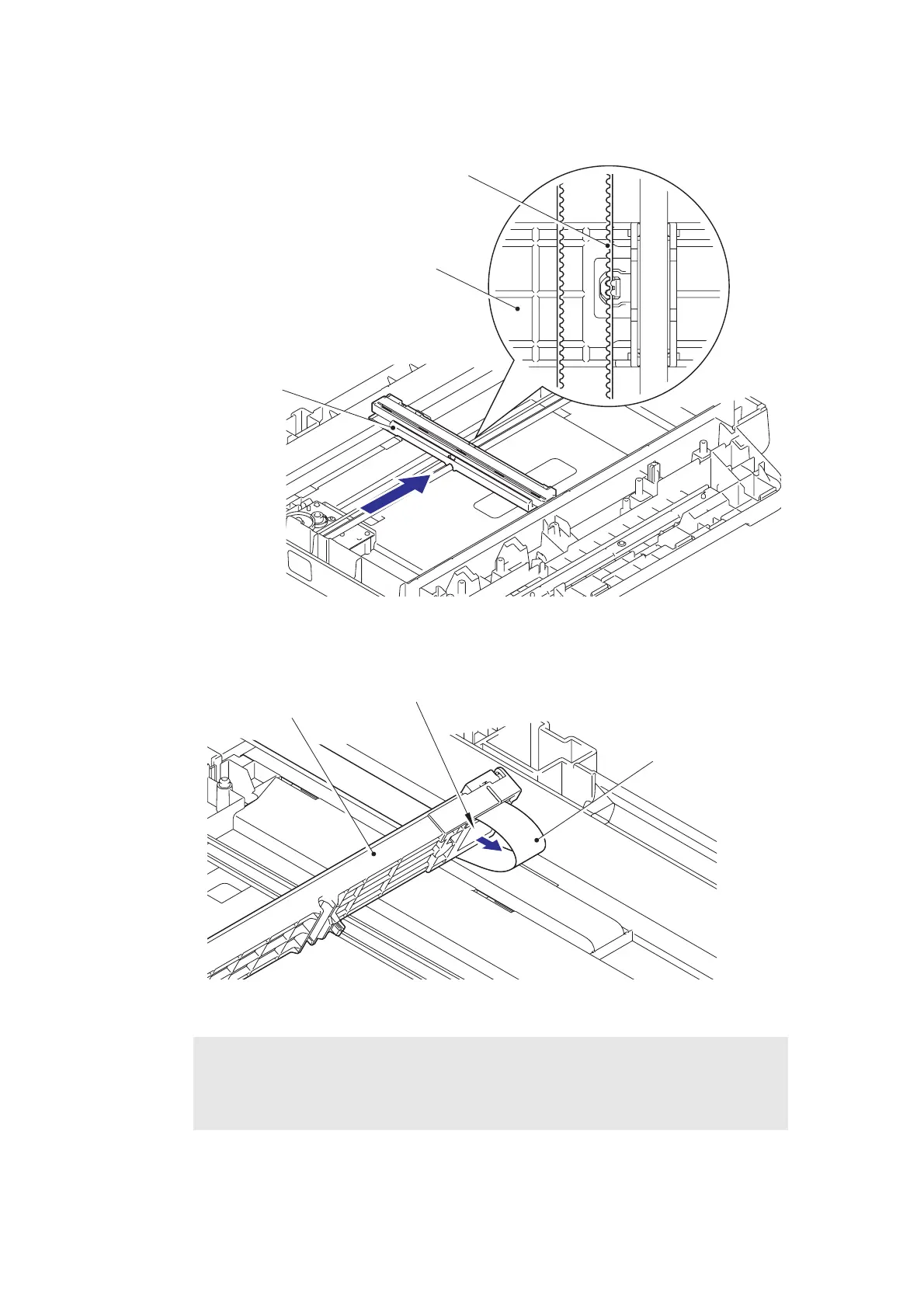

(4) Slowly move the CIS carriage in the direction of the arrow to the center, and remove the
CIS drive belt from the CIS carriage.
Fig. 3-84
(5) Remove the first side CIS flat cable from the CIS carriage.
Fig. 3-85
Note:
• The first side CIS flat cable is secured to the CIS carriage with double-sided tape.
When the first side CIS flat cable is removed from the tape even once, replace it
with new tape.
CIS drive belt
CIS carriage
CIS carriage
CIS carriage
Double-sided tape
First side CIS flat cable
To Next Page
