Brother MFC-8912DW User Manual

3-60
Confidential
9.11 Document scanner unit
(1) Disconnect the document scanner motor harness and the panel PCB harness, and
release these harnesses from the securing fixtures.

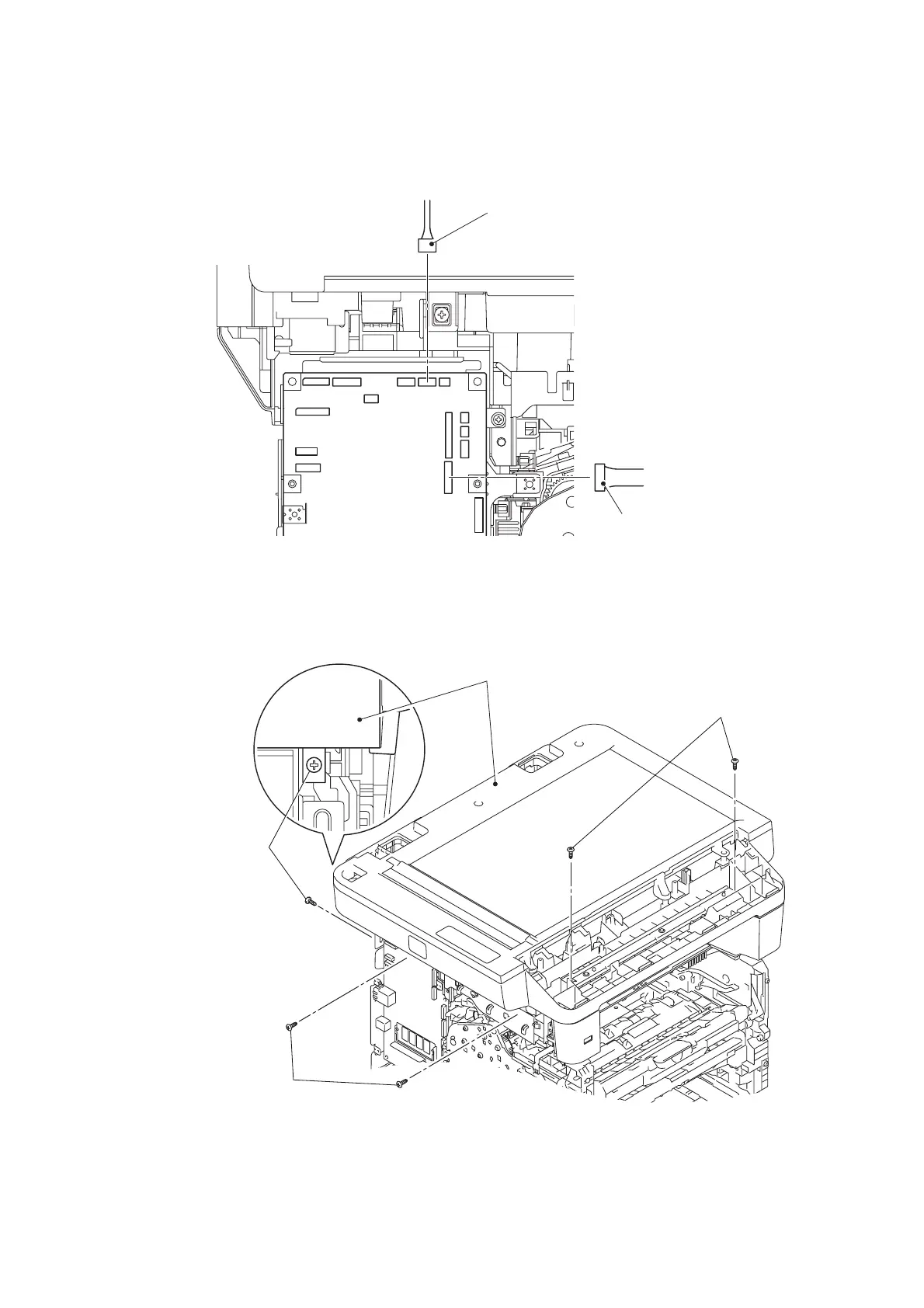

Fig. 3-79
Harness routing: Refer to “1.Main PCB ASSY” and “10.Panel PCB ASSY” .
(2) Remove the five taptite bind B M4x12 screws from the document scanner unit.
Fig. 3-80
Panel PCB harness
Document scanner motor harness
Taptite bind B M4x12
Document scanner unit
Taptite bind B M4x12
Taptite bind B M4x12
