Brother MFC-L2700DN Service Manual

2-2
Confidential
1.2 Checks before Commencing Troubleshooting
Check the following items before commencing repairs on the machine.
 Operating environment
(1) The machine is placed on a flat, stable surface.
(2) The machine is used in a clean environment where the temperature is 10°C (50°F) to
32.5°C (90.5°F), and the relative humidity is maintained between 20% and 80%.
(3) The machine is not exposed to direct sunlight, excessive heat, moisture, or dust.

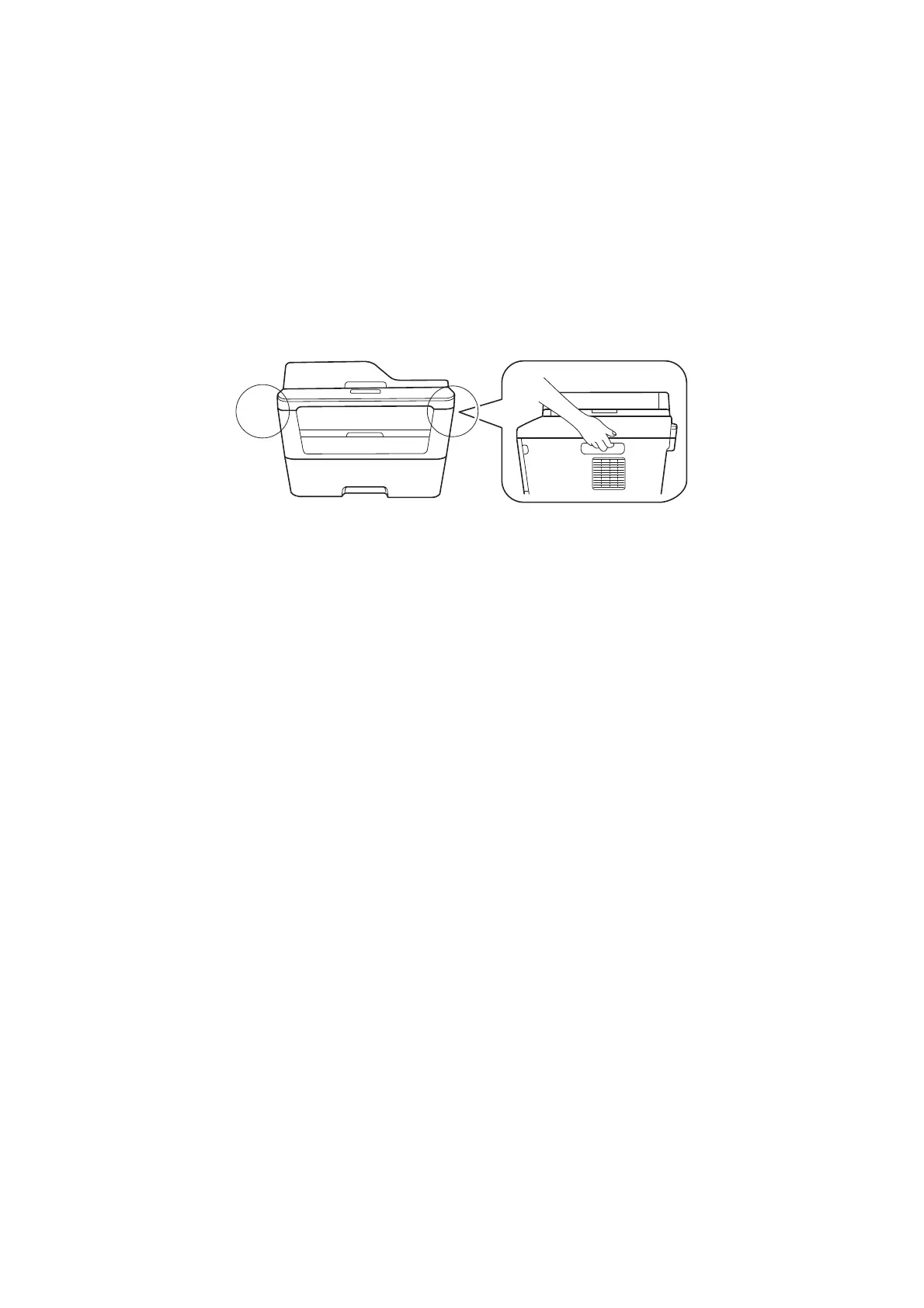

(4) Hold the machine level while moving it. Be sure to move or lift the machine with two or
more people.
Fig. 2-1
 Power supply
(1) Power described on the rating label attached on the machine is supplied.
Power fluctuation should be within ±10% of the rated voltage.
(2) The AC input power supply is within the regulated value.
(3) The cables and harnesses are connected correctly.
(4) The fuses are not blown.
 Paper
(1) The recommended type of paper is being used.
(2) The paper is not damp.
(3) Short-grained paper or acid paper is not used.
 Consumable parts
(1) The drum unit (including toner cartridge) is set correctly.

Brother MFC-L2700DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Print speed (black, normal quality, A4/US Letter)	24 ppm
Product color	Gray
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media weight	60 - 105 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	45 dB
Maximum copy resolution	600 x 600 DPI
Scanner type	Flatbed & ADF scanner
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Wi-Fi	-
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMP
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Package depth	517 mm
Package width	567 mm
Package height	435 mm
Package weight	14400 g
Sustainability certificates	Blue Angel, ENERGY STAR
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Total input capacity	250 sheets
Total output capacity	100 sheets
Auto document feeder (ADF) input capacity	35 sheets
Maximum duty cycle	- pages per month
Recommended duty cycle	250 - 2000 pages per month

Weight and Dimensions

Depth	398.5 mm
Width	409 mm
Height	316.5 mm
