Brother MFC-L2700DN Service Manual

3-22
Confidential

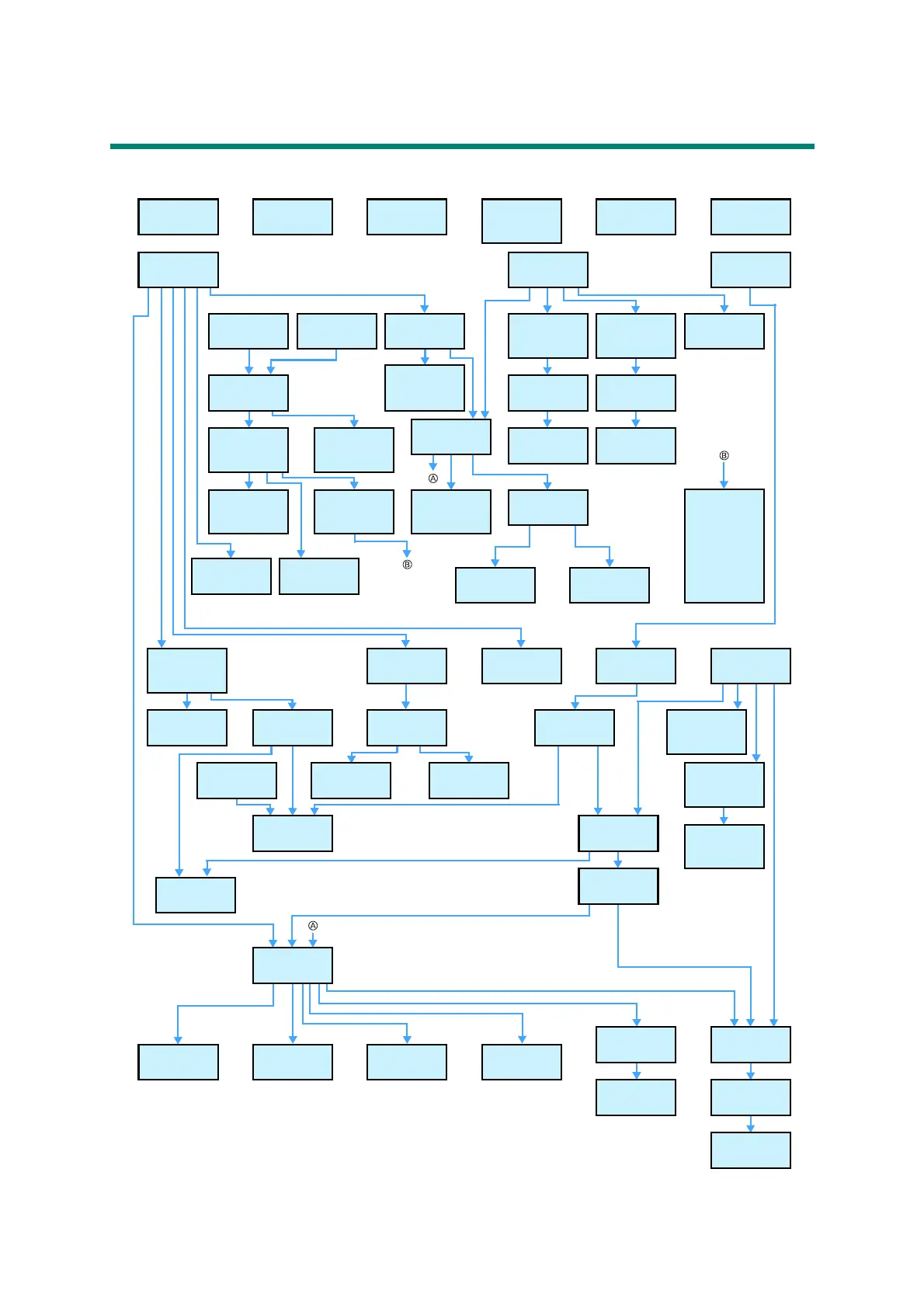

8. DISASSEMBLY FLOW CHART
Disassembly / Reassembly (second)
9.24 High-voltage
Power Supply PCB
ASSY
20/30
9.2 Cord Hook
10/10
9.1 Paper Tray
5/5
9.12.3 ADF Document
Support
5/5
9.9 Side Cover L
15/10
9.1 Duplex Tray
5/5
9.17 Lock Claw, Pull
Arm Guide
15/10
9.12.4 Gear Cover
10/5
9.12.2 Hinge ASSY L,
Hinge R, Hinge R
Support, Hinge Arm R
40/40
9.14.2 Panel PCB
ASSY, LCD
10/10
9.15.3 LCD
15/15
9.14.3 Touch Panel
ASSY
10/15
9.12.7 CIS Spacer, Second
Side CIS Unit (Duplex
scanning models only)
30/40
9.11 Document
Scanner Unit
20/20
9.9 Handset Holder
ASSY
20/20
9.18 Modem PCB ASSY
40/50
9.18 Speaker Cover
10/10
9.16 First Side CIS
Unit, First Side CIS Flat
Cable
40/60
9.12 ADF Unit (For
models with ADF)
40/30
9.27 Gasket
5/5
9.3 Back Cover
5/5
9.30 T1 Clutch
5/10
9.33 Motor Drive Sub
ASSY
20/35
9.29 Main PCB ASSY
30/40
9.33 Main Motor
20/25
9.36 Registration Front/
Rear Actuator Holder
ASSY
40/40
9.32 Main Frame L
ASSY
50/90
9.35 Eject Sensor PCB
ASSY
20/20
9.27 Wireless LAN
PCB (Wireless network
models only)
5/5
9.23 Fan
5/10
9.26 Laser Unit Flat
Cable
5/10
9.25 Filter
5/10
9.25 Air Duct
5/5
9.26 Laser Unit
15/20
9.6 Side Cover R
15/10
9.21 Fuser Unit
15/20
9.5 Support Flap
5/5
9.13 Document Cover
ASSY (For models
without ADF)
20/20
9.28 Roller Holder
ASSY
10/10
9.12.3 ADF Document
Output Support Flap
5/5
9.12.4 ADF Cover
ASSY
5/5
9.14 Panel Unit (For
models with touch
panel)
30/30
9.15.2 Panel PCB
ASSY
10/10
9.12.5 Document
Separate Roller ASSY
10/10
9.12.6 ADF Separation
Pad Holder ASSY
10/10
9.12.9 FFC Holder
ASSY, Second Side CIS
Flat Cable, ADF Motor
20/40
9.12.8 Document Feed
Roller ASSY 1
10/10
9.12.10 First Side
Document Scanning
Position Sensor PCB
ASSY, Second Side
Document Scanning
Position Sensor PCB
ASSY (Duplex
scanning models only),
ADF Cover/Document
Detection Sensor PCB
ASSY
60/60
9.19 Speaker Unit
5/5
9.30 Registration
Clutch
5/10
9.4 Outer Chute ASSY
5/5
9.22 Low-voltage
Power Supply PCB
ASSY
25/25
9.5 Front Cover ASSY
5/5
9.34 Fuser Gear 67R/
40R
5/5
9.7 Fuser Cover
5/5
9.20 Joint Cover ASSY
40/30
9.31 New Toner Sensor
PCB ASSY
10/15
9.24 HVPS Flat Cable
10/15
9.24 Flat Cable Sponge
5/5
9.10 Pull Arm L, Pull
Arm R, Pull Arm Spring
15/15
9.15 Panel Unit (For
models without touch
panel)
30/30
9.8 Inner Chute ASSY
10/10
