Brother RH-9820 Service Manual

6. ASSEMBLY
RH-9820
92

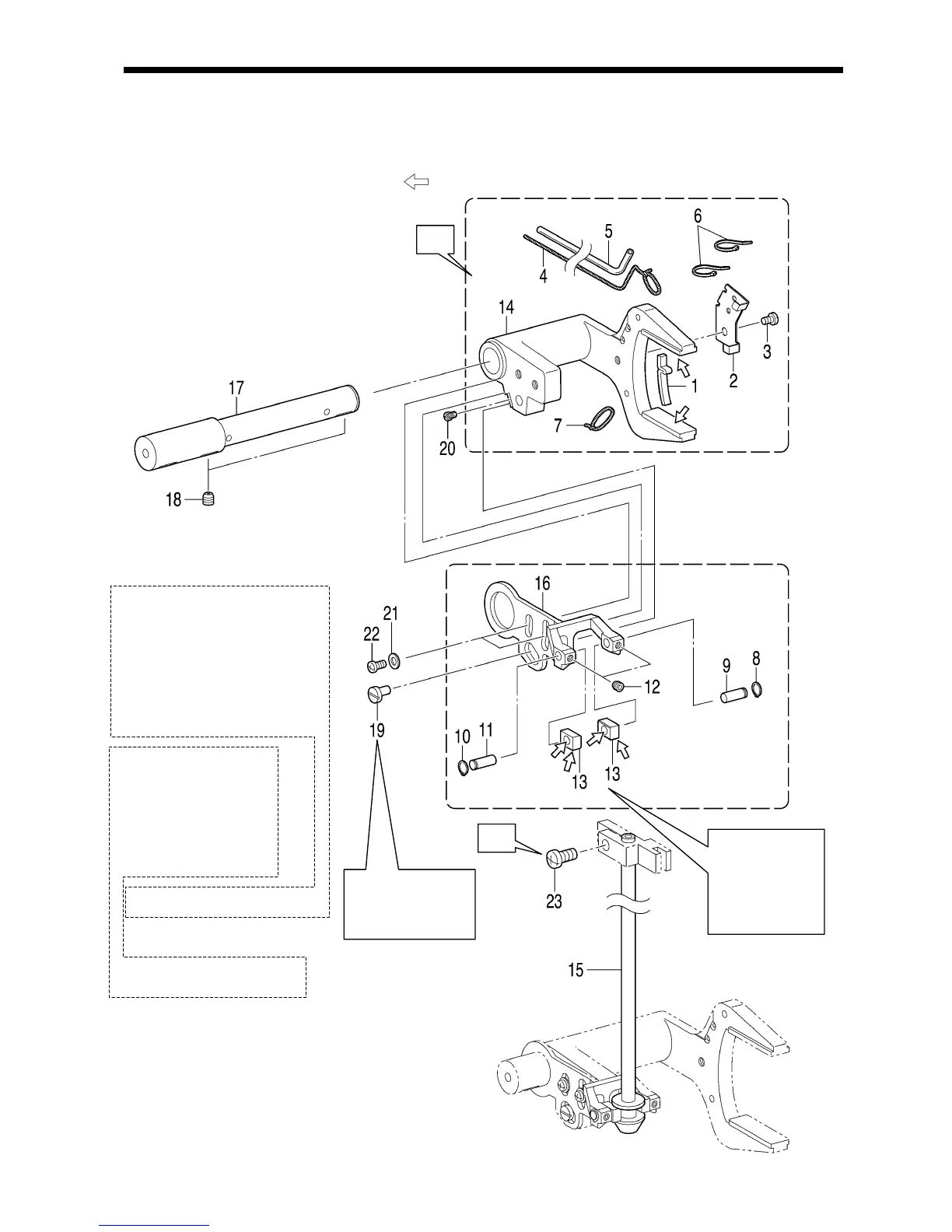

6-12. Spreader mechanism
* Refer to the detailed descriptions on the next page for details on A and B in the illustration.
* Apply the grease specified by Brother (MOLYKOTE LONGTERM W2 manufactured by Dow Corning
Corporation) in the places indicated by .
1. Felt
2. Spreader tube clamp
3. Screw
4. Wick
5. Oil tube
6. Fastening bands [2 pcs]
7. Wick
8. Retaining ring C
9. Shaft
10. Retaining ring C
11. Shaft
12. Set screws [2 pcs]
13. Slide blocks [2 pcs]
14. Spreader lever A
15. Spreader link shaft
16. Spreader lever B
17. Spreader lever shaft
18. Set screws [2 pcs]
19. Eccentric pin
20. Screw (Temporarily tighten)
21. Plain washers [2 pcs]
22. Screws [2 pcs] (Temporarily tighten)
23. Screw (Fully tighten)
A
The larger
bevelled
surface should
be on the
inside.
Refer to “7-10.
A
djusting the
spreader timing”.
1105B
B
