7-24-3. Adjusting the position of the thread trimmer lever bracket
The position of the needle must be adjusted so that it does not obstruct the upper movable knife when it is at the maximum
zigzag width for the outside sewing position.

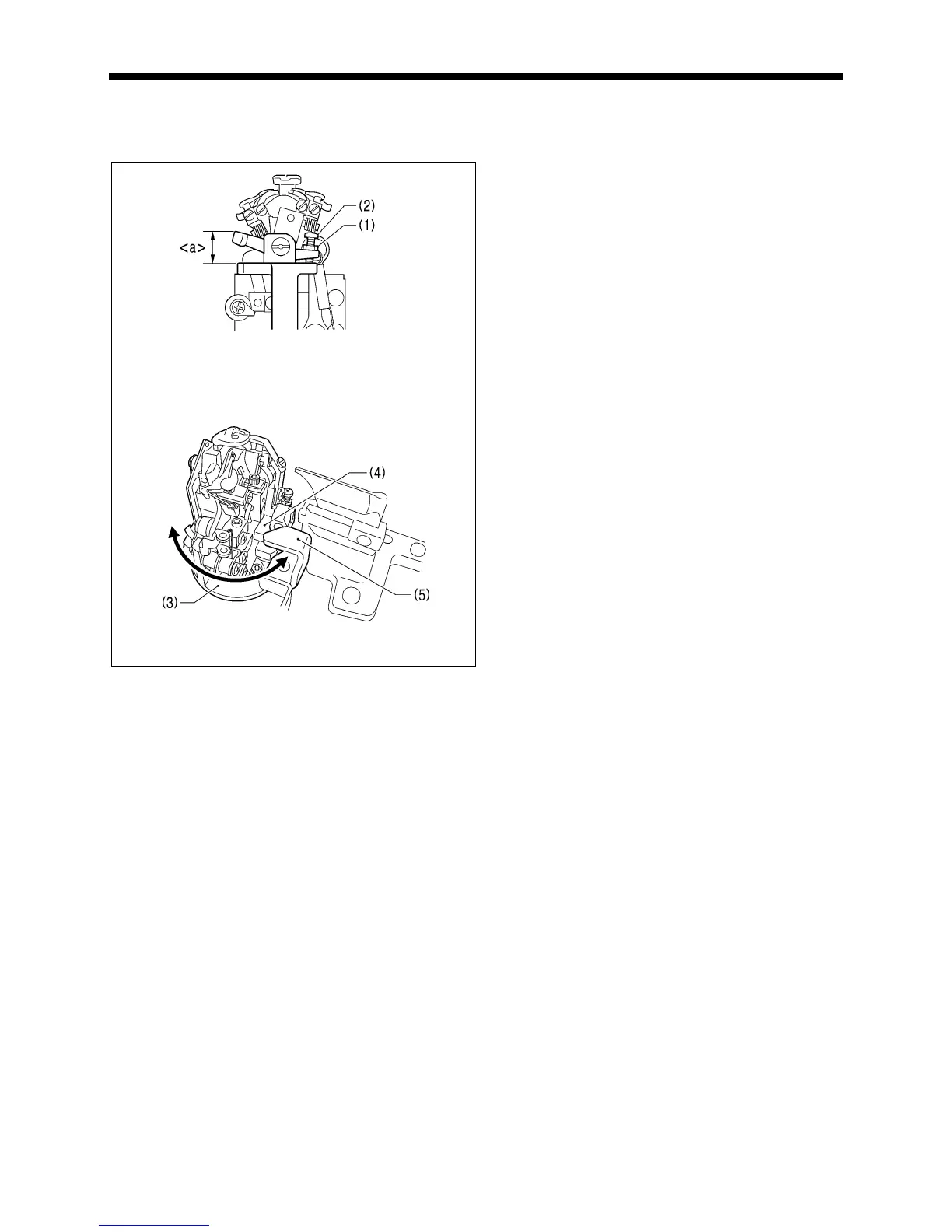

1. Loosen the nut (1).
2.
Tu
rn the screw (2) to adjust <a> in the illustration to 12
mm.
3. Turn the looper base (3) and check that the thread trimmer
lever bracket (4) moves underneath the thread trimmer
hammer (5) without obstructing any other parts.
4. Once adjustment is complete, securely tighten the nut (1).
