Brother RH-9820 Service Manual

6. ASSEMBLY
RH-9820
104

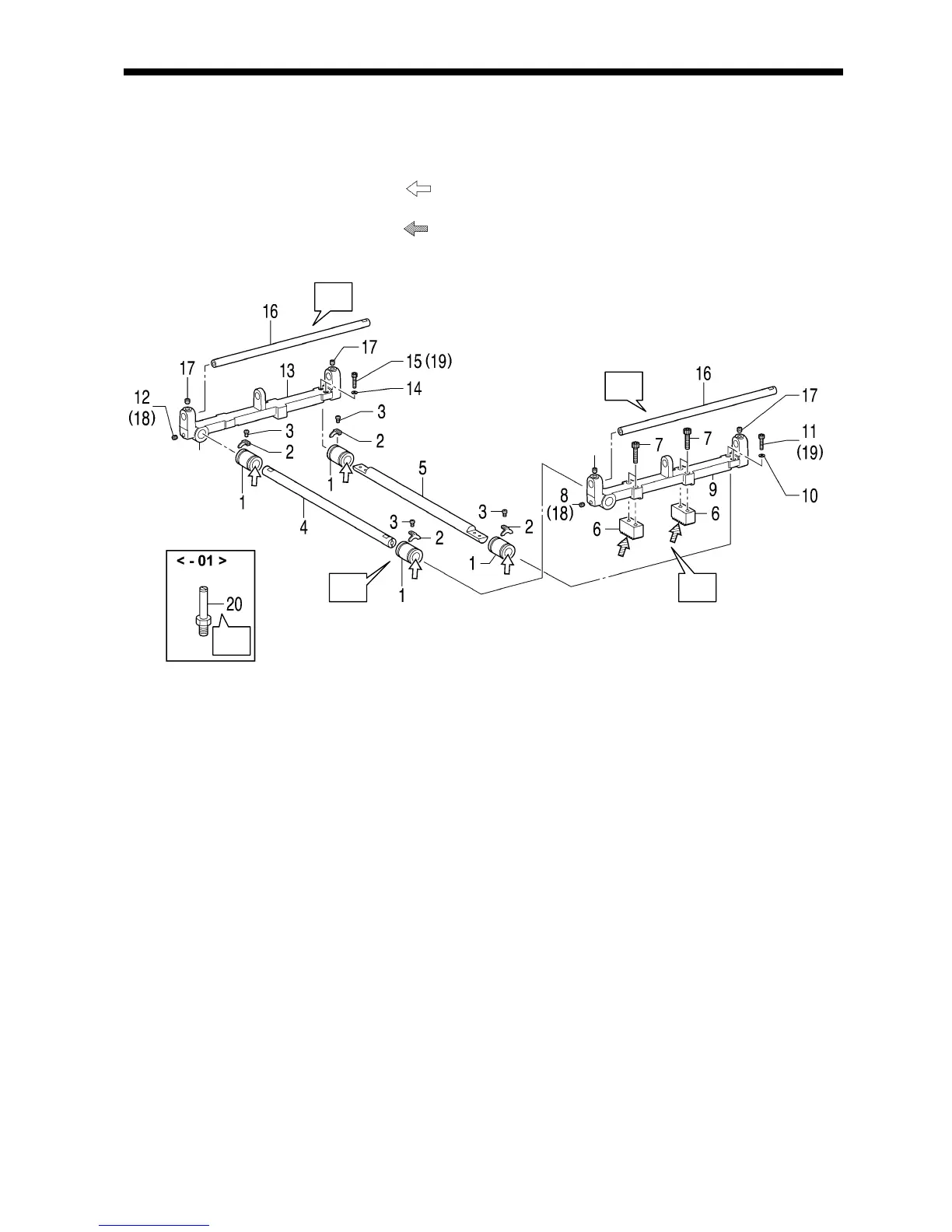

6-15-2. X feed shaft holder
* Refer to the detailed descriptions on pages 105 and 106 for details on A to D in the illustration.
* Apply the grease specified by Brother (MOLYKOTE LONGTERM W2 manufactured by Dow Corning
Corporation) in the places indicated by .
* Apply the grease specified by Brother (Shin Lube EJ manufactured by Nippon Steel Chemical
Corporation) in the places indicated by .
1. Ball bearings [4 pcs]
2. Ball bearing stoppers
[4 pcs]
3. Screws [4 pcs]
4. X feed guide shaft B
5. X feed guide shaft A
6. Gears [2 pcs]
7. Socket bolts [4 pcs]
8. Set screw
(Temporarily tighten)
9. X feed shaft holder N
10. Washers [2 pcs]
11. Socket bolts [2 pcs]
(Temporarily tighten)
12. Set screw
(Temporarily tighten)
13. X feed shaft holder S
14. Washers [2 pcs]
15. Socket bolts [2 pcs]
Install the feed base to the bed here.
16. Y feed guide shafts [2 pcs]
17. Set screws [4 pcs]
18. Set screws (8, 12) [2 pcs] (Fully tighten)
19. Set screws (11, 15) [4 pcs] (Fully tighten)
<-01 specifications only>
20. Cylinder screw
1003B
C
A
C
B
D
