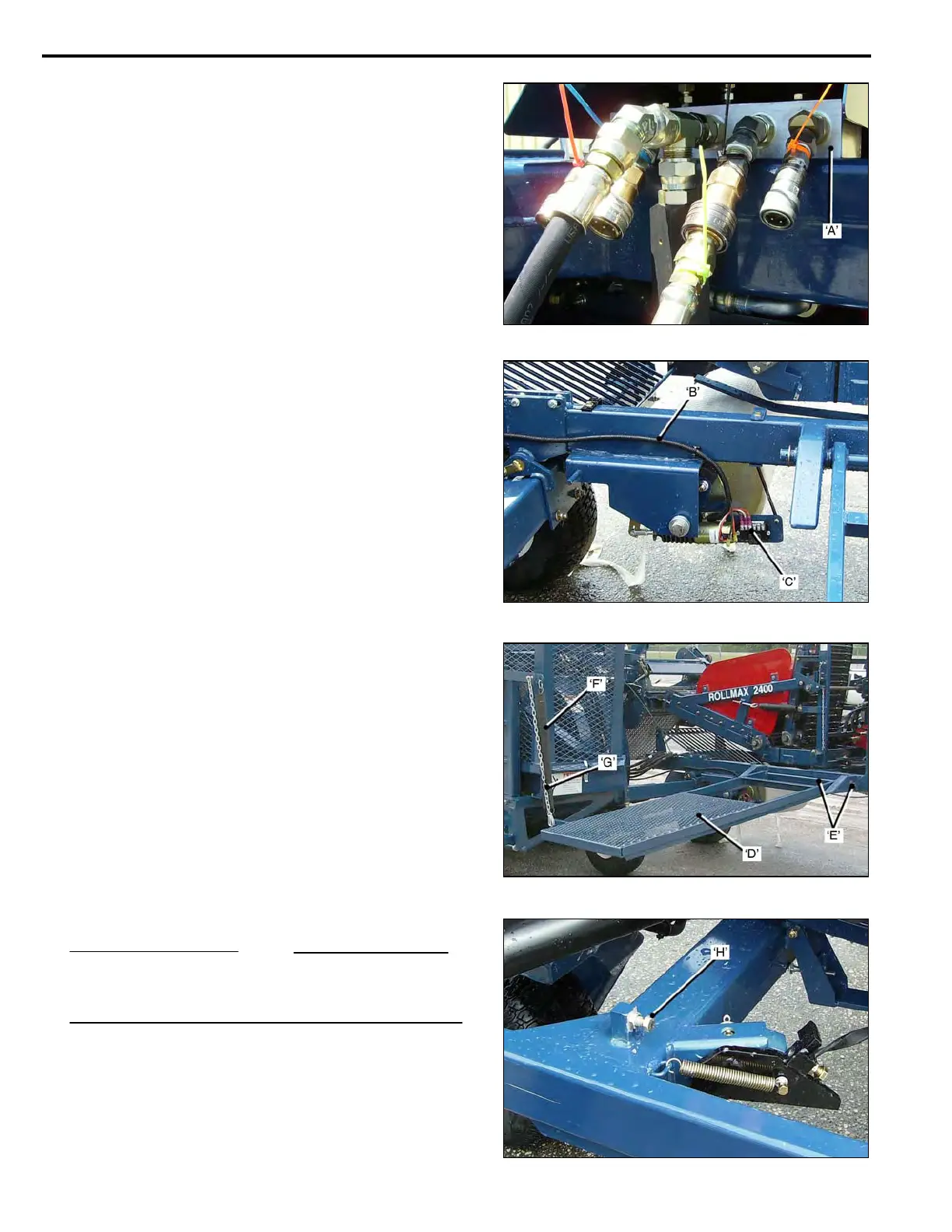

ASSEMBLY TO TRACTOR
• Connect the Hydraulic Hose ‘Quick Couplers’ from
the RollMax Unit, to Couplers on the Main Frame
Manifold ‘A’.
The Couplers are identified with colored ‘tie wraps’
to prevent incorrect connections.
• Attach the Harness ‘B’ from the tractor, to cable clips
on the frame.
• Connect the harness wires to the Net Wrap Dispenser
Brake Solenoid Module ‘C’.
• Attach the Unload Ramp ‘D’, to the RollMax Frame,
with the Pivot Tube ‘E’ and Hitch Clips.
• Attach the Ramp Spring ‘F’, (inside rubber sleeve),
to the Ramp, with the Spring Snap Hook.
• When in transport, attach the Transport Chain ‘G’, to
the Ramp, with the Spring Snap Hook.
• Adjust the Stop Bolt ‘H’, to ensure that the Dump
Conveyor is parallel to the Main Conveyor.
NOTE
The initial Dump Conveyor to Main Conveyor alignment
may have to be adjusted during operation, to ensure that
the Sod rolls are not ‘conical’.
2-04
