ASSEMBLY TO TRACTOR
SET-UP INSRTRUCTIONS cont..

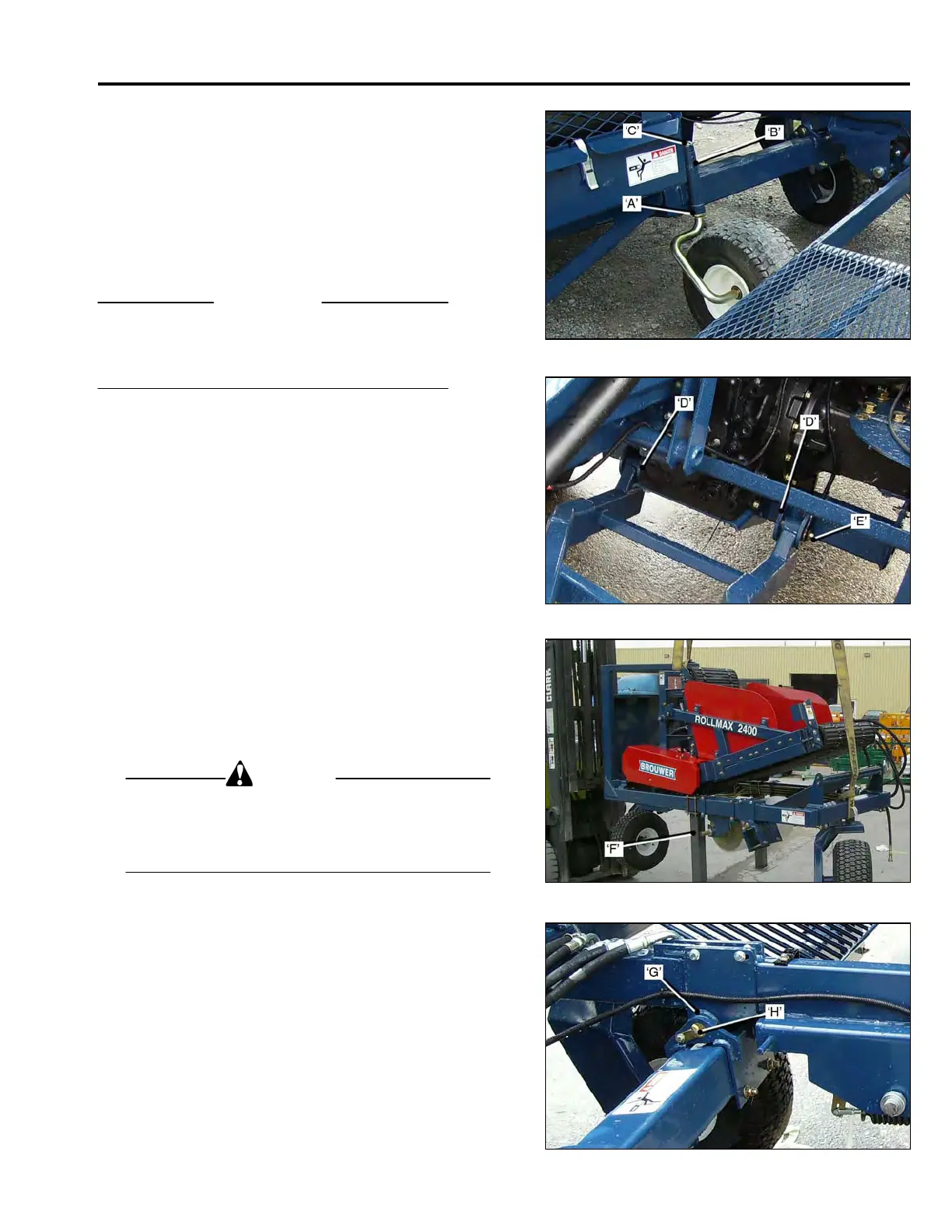

Install the Caster Wheel onto the F-Frame :
• Fit three Spacer Washers ‘A’, onto the Caster
Wheel Spindle.
• Fit the Caster Wheel Spindle into the Spindle
Housing ‘B’.
• Fit the Top Spacer and Hitch Pin ‘C’.
IMPORTANT
When the RollMax Unit has been installed onto the
F-Frame, check that the Caster Wheel is ‘lightly’
touching the ground. Adjust the quantity of Spacer
Washers ‘A’, to attain the correct contact.
Fit the F-Frame to the Main Frame :
• Locate the F-Frame in the Main Frame Mount
Brackets ‘D’.
• Insert the Pins ‘E’, fit Shim Washers to take-up
excess side play.
• Fit the Retainer Bolts.
Installing the RollMax Unit :
• Use a Crane or Forklift to lift the RollMax Unit off
the Shipping Supports ‘F’.
WARNING
Exercise care when lifting the RollMax Unit. Attach the
lift straps as shown to prevent the unit from tipping.
Place a C-Clamp at the fork end, to prevent the lift strap
from slipping off the fork.
• Carefully maneuver the RollMax Unit to fit the
Mounting Brackets ‘G’, into the F-Frame Brackets.
• Install the Pivot Pins ‘H’, and Retainer Bolts.
2-03
