ASSEMBLY TO TRACTOR
SET-UP INSTRUCTIONS. Cont.

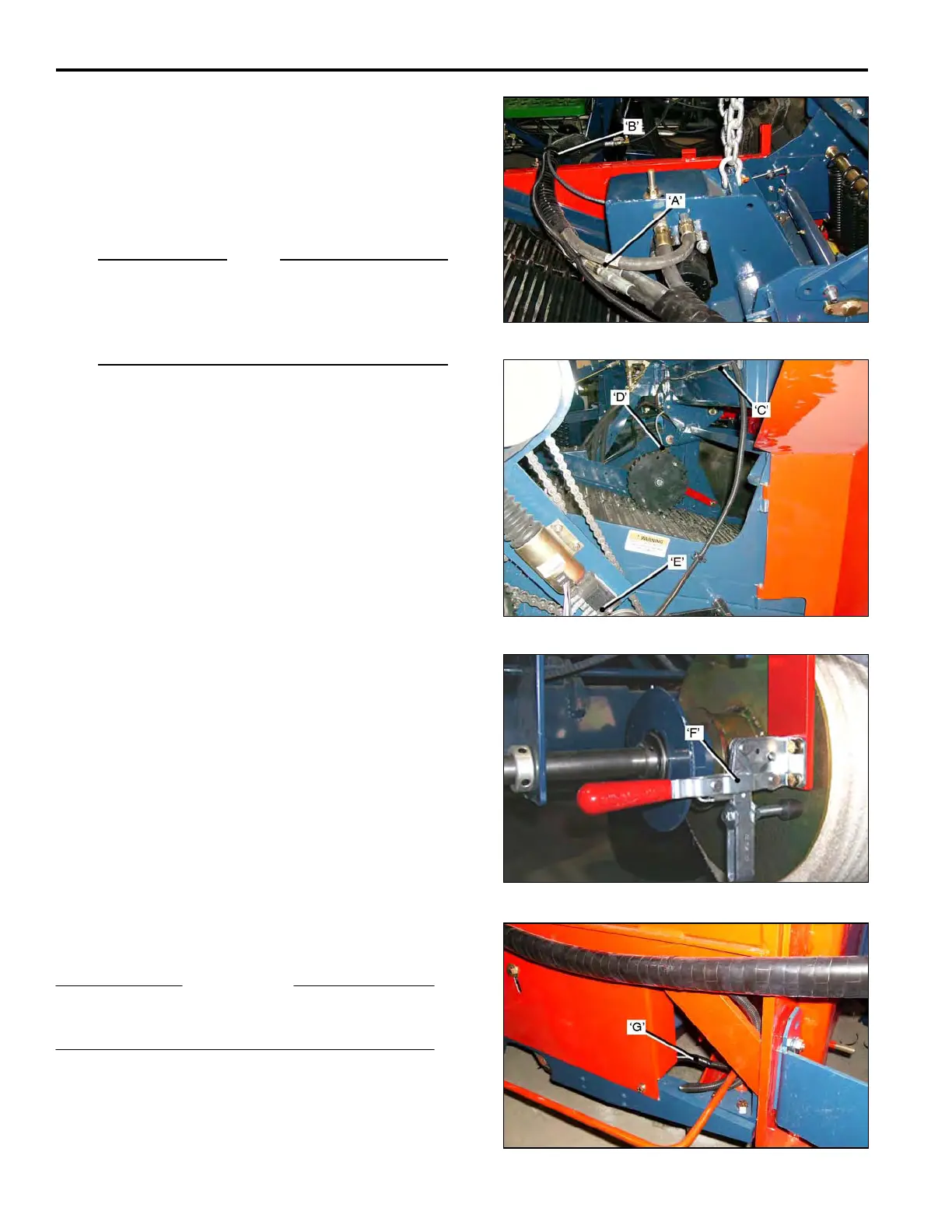

Connect the Hydraulic Hoses ‘A’ from the :
• Conveyor Motor.
• Cutter Motor
• Rotary Brush Attachment.(If fitted).
to the hoses from the Control Valves.
NOTE
To ensure that the Hydraulic Hoses are connected
correctly, the hose end fittings are color coded with
nylon ties.
Ensure that the hoses are attached to the frame with
Clamp ‘B’.
Attach the Wiring Harness,(from the tractor), to the
mounting clips on the Main Beam ‘C’. Use Nylon Ties to
attach the harness.
• Connect the Proximity Sensor Cable ‘D’, at the
Cut-Off Sensor Wheel.
• Fit the harness ‘Connectors’ to the Top Netting
Solenoid Terminal Block ‘E’.( If installed).
• Check that the Lower Net Drum ‘BRAKE’ ‘F’ , is
‘ON’ when transporting, and ‘OFF’ when dispensing
netting.
• Connect the Wiring Harness Plug to the Cut-Off
Solenoid Plug ‘G’.
Tape wrap the plug connection.
IMPORTANT
To prevent possible malfunctions, check that all electrical
connections are tight.
2-02
