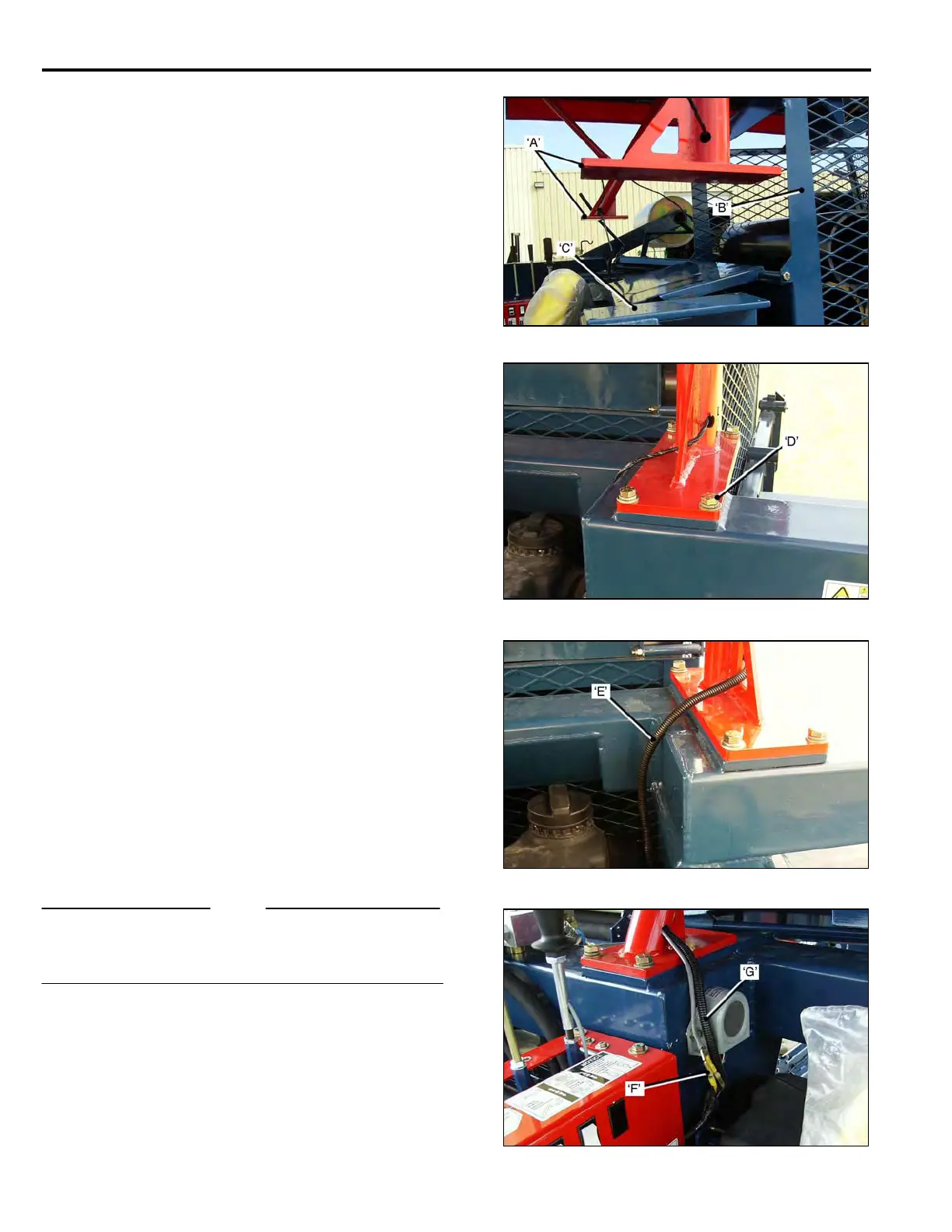

CANOPY FRAME INSTALLATION
• Carefully raise the forks, sufficient for the Canopy
Support Pads ‘A’, to clear the Tube Container ‘B’,.
• Slowly drive the forklift forward to position the
Support Pads ‘A’, above the Mounting Pads ‘C’.
• Lower the Canopy Support until the pads are ’just’
touching the mounting pads.
• Bolt the Canopy Support in place with eight ½ inch
x 1 1/14 Bolts, Washers and Lock-washers ‘D’.
Connecting Wiring Harness.
• Feed the left hand side Canopy Harness ‘E’ down
between the frame and fuel tank, and make the
connections to the corresponding Tractor Harness.
• On the right hand side, make the connections with
the ‘gray’ cable ‘F’, and its corresponding plugs.
• Feed the Canopy Harness ‘G’, down to make
connections to the corresponding Tractor Harness.
NOTE
When the electrical connections have been completed,
and the working lights tested, it is recommended that for
protection the connections are shrink wrapped or taped.
• Re-install the Unload Ramp.
2-10
