ADJUSTMENTS. Control Levers. Adjustable Stops.
Conveyor Lift Arm Lever.
To increase the Cutter Head ‘lift’ speed:
• Turn the Adjusting Nut ‘A’, toward the Spool Valve.
To decrease the Cutter Head ‘lift’ speed:
• Turn the Adjusting Nut ‘A’, away from the Spool
Valve.
To increase the Cutter Head ‘lower’ speed:
• Turn the Adjusting Nut ‘B’, away from the Spool
Valve.
To decrease the Cutter Head ‘lift’ speed:
• Turn the Adjusting Nut ‘B’, toward the Spool Valve.
Depth Control Lever.
To increase the Roller ‘lower’ speed: (Less control
when setting thinner sod).
• Turn the Adjusting Nut ‘C’, toward the Spool Valve.
To decrease the Roller ‘lower’ speed: (More control
when setting thinner sod).
• Turn the Adjusting Nut ’C’, away from the Spool
Valve.
To decrease the Roller ‘lift’ speed: (more control when
setting thicker sod).
• Turn the Adjusting Nut ‘D’, toward the spool valve.
To increase the Roller ‘lift’ speed:(Less control when
setting thicker sod).
• Turn the Adjusting Nut ‘D’, away from the Spool
Valve.

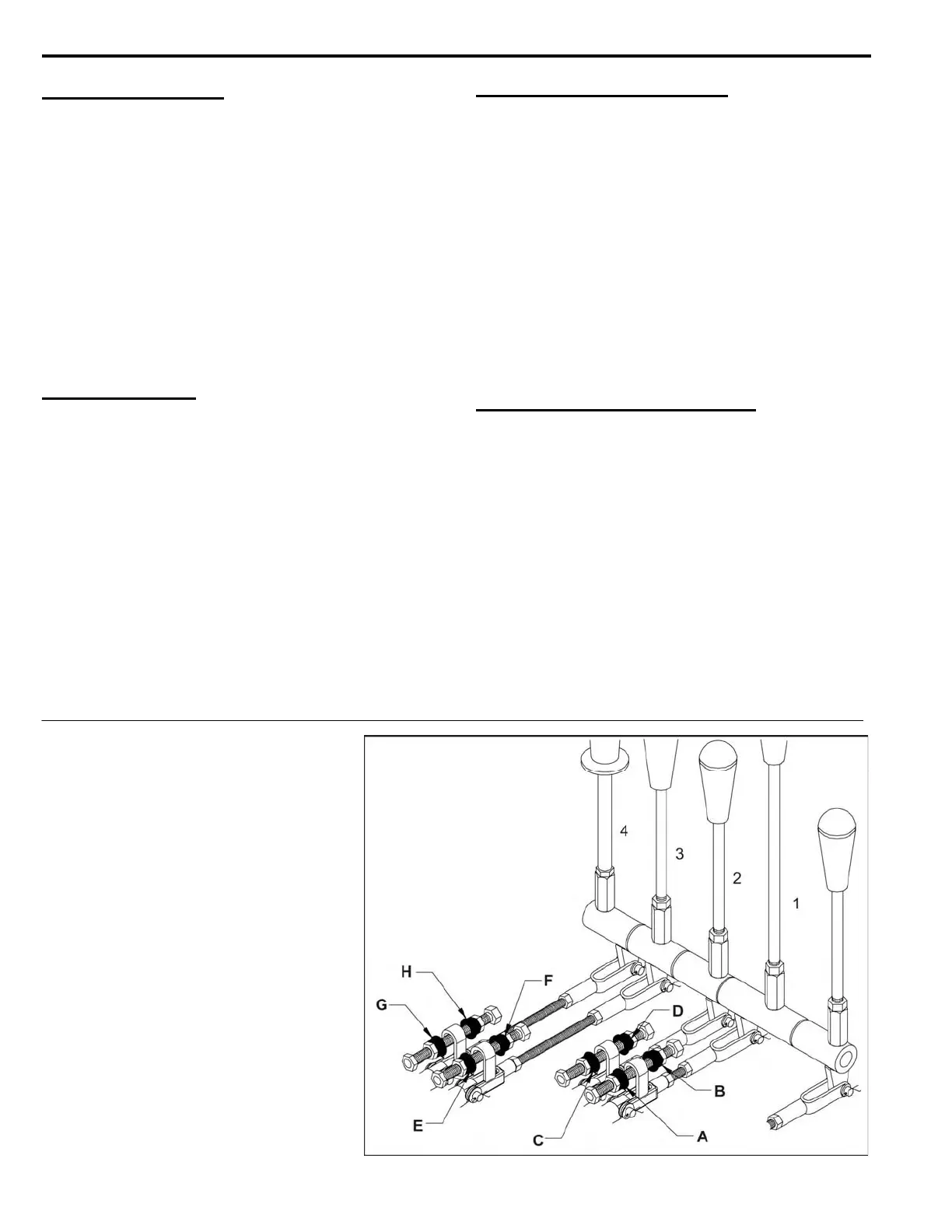

1. Conveyor Lift.
2. Depth Control.
3. Conveyor Manual Over-Ride.
4. Roll-Up Conveyor
3-18
Manual Conveyor ‘Over-ride’ Lever.
To run all Conveyors ‘faster’, during over-ride:
Turn Adjusting Nut ‘E’, toward the Spool Valve.
o run all Conveyors ‘slower’, during over-ride:
Turn Adjusting Nut ‘E’, away from the Spool Valve.
o run Roll-Up Conveyor ‘slower’ during over-ride:
Turn Adjusting Nut ‘F’, toward the Spool Valve
o run Roll-Up Conveyor ‘faster’, during over-ride:
Turn Adjusting Nut ‘F’, away from the Spool Valve.
o increase the Swing Out and Dump speed:
Turn Adjusting Nut ‘G’, toward the Spool Valve.
o decrease the Swing Out and Dump speed:
Turn Adjusting Nut ‘G’ away from the Spool Valve.
o slow the Roll-Up Conveyor ‘return and position’ :
Adjust Nut ‘H’, toward the Spool valve.
p the Roll-Up Conveyor ‘return and
osition’:
Adjust Nut ‘H’, away from the Spool Valve.
•
T
•
T
•
T
•
Roll-Up Conveyor – Swing and Dump.
T
•
T
•
T
•
To speed-u
p
•
