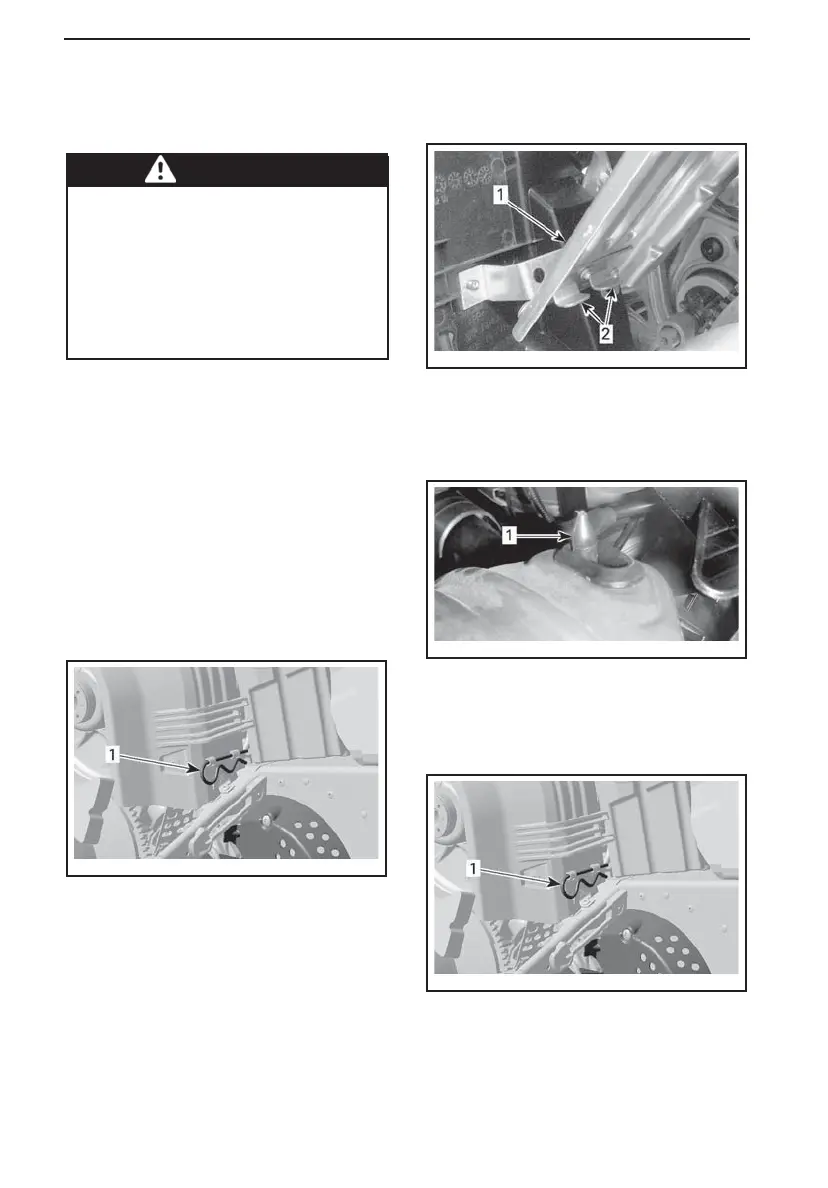

CONTROLS, INSTRUMENTS AND EQUIPMENT
24) Drive Belt Guard
Drive Belt Guard Removal
WARNING
NEVER operate engine:
– Without shields and belt guard
securely installed.
– With hood and/or side panels
opened or removed.
NEVER attempt to make adjust-
ments to moving parts while en-
gine is running.
NOTE: Drive belt guard is purposely
made slightly oversize to maintain ten-
sion on its pins and retainers prevent-
ing undue noise and vibration. It is im-
portant that this tension be maintained
when reinstalling.
Remove the tether cord cap from en-
gine cut-off switch.
Refer to
CONTROLS, INSTRUMENTS
AND EQUIPMENT
and open engine
compartment LH side panel.
Remove retaining pin.
mmo2008-003-063_a
TYPICAL
1. Retaining pin
Lift rear portion of drive belt guard then
release from front tabs.
Drive B elt Guard Installation
When reinstalling drive belt guard
,
position its cutaway toward front of
snowmobile.
Place belt guard front openings over
tabs.
mmo2009-004-035_a
1. Belt guard
2. Tabs
Position the grommet over the retain-
ing rod.
mmo2009-003-011_a
1. Retaining rod
Position rear portion of the belt guard
over the retainer and secure it using
the retaining pin.
mmo2008-003-063_a
1. Retaining pin
56
