CONTROLS, INSTRUMENTS AND EQUIPMENT
11) Gauge
WARNING
Never adjust or set functions on
the multifunction gauge while rid-
ing the vehicle, you could lose con-
trol.

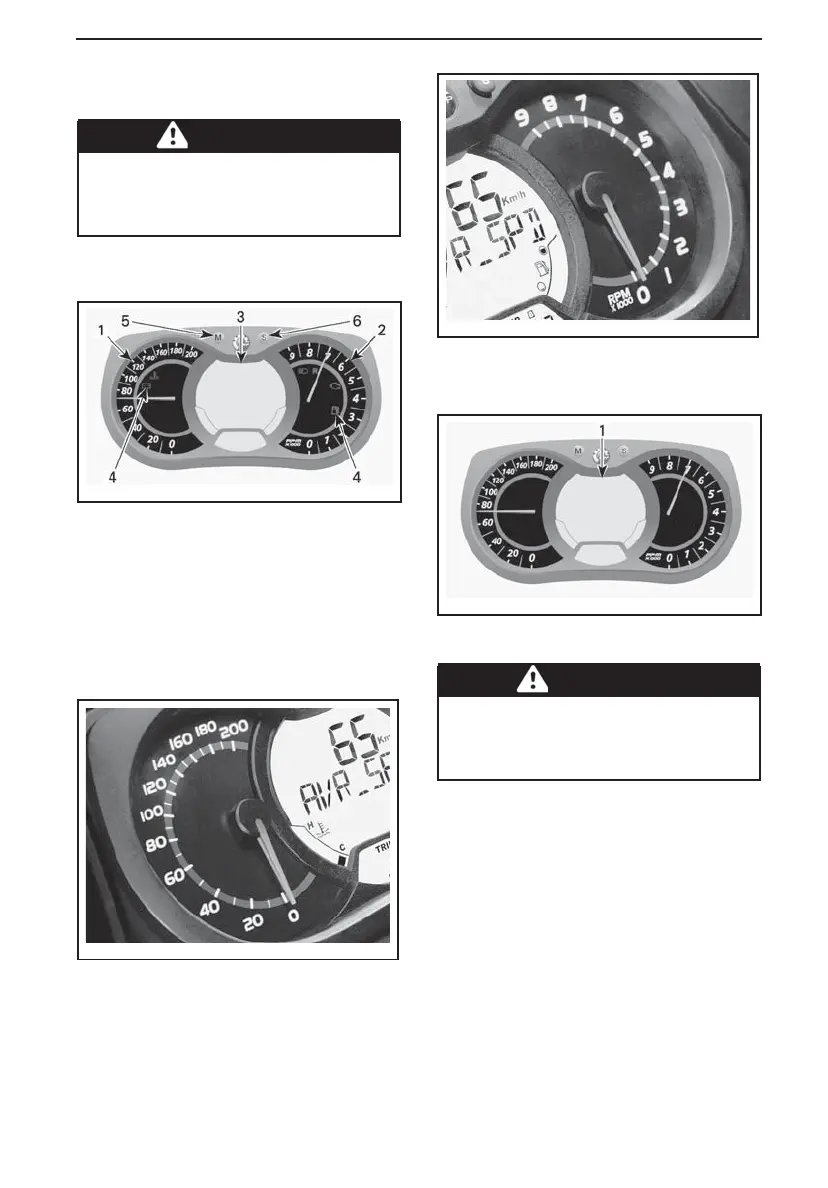

Gauge D escription
mmo2007-009-066_ab
MULTIFUNCTIO N ANALOG /DIGITAL GAUGE
1. Speedometer
2. Tachometer
3. Multifunction digital display
4. Pilot lamps
5. Mode button
6. Set button
1) Speedometer
Measures vehicle speed.
mmo2008-007-017
LH PORTION OF GAUGE
2) Tachometer (RPM)
Measures engine revolution per
minute (RPM). Multiply by 1000
to ob-
tain the actual revolutions.
mmo2008-007-018
RH PORTION OF GAUGE
3) Multifunction Digital Display
mmo2007-009-066_u
MULTIFUNCTIO N ANALOG /DIGITAL GAUGE
1. Multifunction display
WARNING
Never adjust or set functions on
the multifunction gauge while rid-
ing the vehicle, you could lose con-
trol.
The multifunction display is used to:
– Display the WELCOM E message
on power up
– Display the KEY recognition mes-
sage
– Provide vario us indicat ions as se-
lected by the operator
– Activating or changing various func-
tions or m odes of operation
– Display scrolling messages of func-
tion activation or system faults
– Display fault codes.
_______________
41
