CONTROLS, INSTRUMENTS AND EQUIPMENT

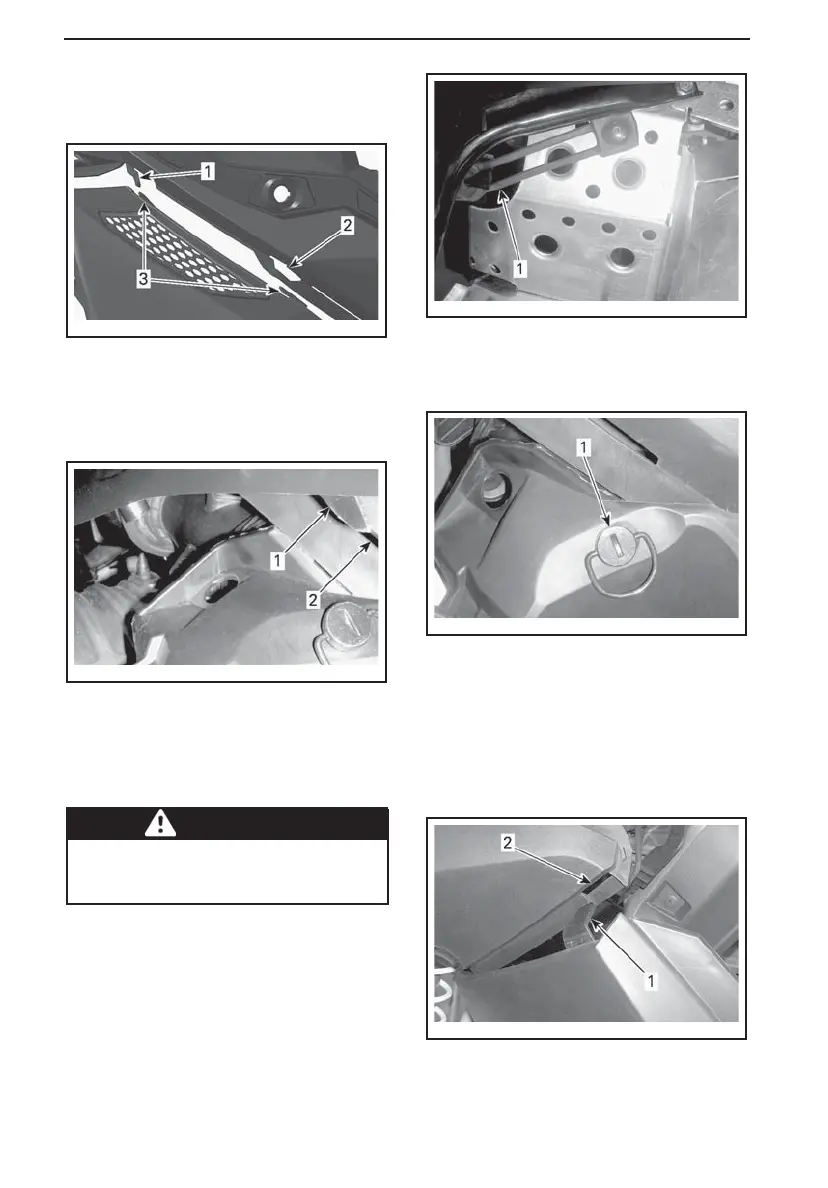

2. Hook the panel top center tabs to
the console.
mmo2011-006-100_a
1. Console hook
2. Console slot
3. Panel center tabs
3. Insert the rear tab into the console
slot.
mmo2009-004-041_a
1. Rear tab
2. Console slot
4. Hook rubber tie.
27) Lower Side Panels
WARNING
Never operate engine with side
panels opened or removed from
vehicle.
Lower Side Panel Opening
1. Remove upper side panel as
ex-
plained above.
2. Unhook the rubber tie.
mmo2009-004-044_a
1. Rubber tie
3. Tu rn the clip 1/4 turn counterclock-
wise to unlock.
mmo2009-004-045_a
1. Clip
4. Slightly lift the rear of side panel,
then open sideways.
Lower Side Panel Closing
1. Insert the panel tab into the bottom
pan slot.
mmo2011-006-101_a
1. Lower side panel tab
2. Bottom pan slot
