MAINTENANCE PROCEDURES

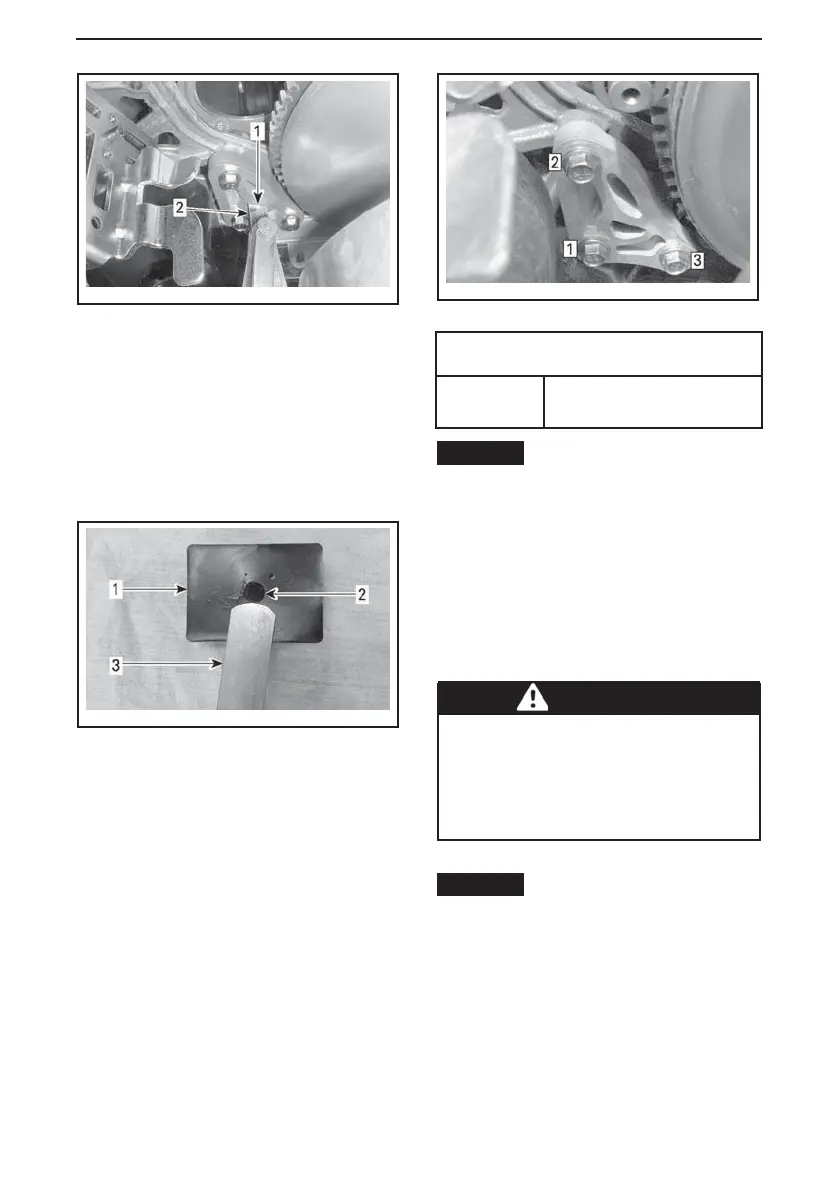

mmo2010-009-001_a
1. Opening
2. Feeler gauge
6. Place feeler gauge between engine
stopper and rubber stop block (on
engine).
NOTE: Do not insert the feeler gauge
too deep, as it will pass over the bump
at the surface of the rubber stop block
and alter adjustment. See illustra tion.
mmo2010-009-002_a
1. Rubber stop block
2. Bump
3. Feeler gauge
7. Tighten screws to the specified
torque, following the illustrated se-
quence. Take care not to pinch the
feeler gauge.
mmo2010-009-007_b
TIGHTENING SEQU EN CE
TIGHTENING TORQUE
Stopper
screws
10 N•m ± 2 N•m
(89 lbf•in ±18lbf•in)
NOTICE
Serious pulley damage
can occur if the engine stopper and
its screws are not properly installed.
Brake Fluid
Recommended Fluid
Use only DOT 4 brake fluid from a
sealed container. An opened container
may be contaminated or may have ab-
sorbed m oisture from the air.
WARNING
UseonlyDOT4brakefluidfroma
sealed container. To avoid serious
damage to the braking system, do
not use fluids other than the rec-
ommended one, nor mix different
fluids for topping up.
NOTICE
Brake fluid can damage
painted and plastic parts. Handle
with care. Rinse thoroughly in case
of spillage.
Brake Fluid Level
Place vehicle on a level surface.
Check brake fluid (DOT 4) in reservoir
for proper level. Add fluid (DOT 4) as
required.
_______________
87
To Next Page
