CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2007-009-044_b

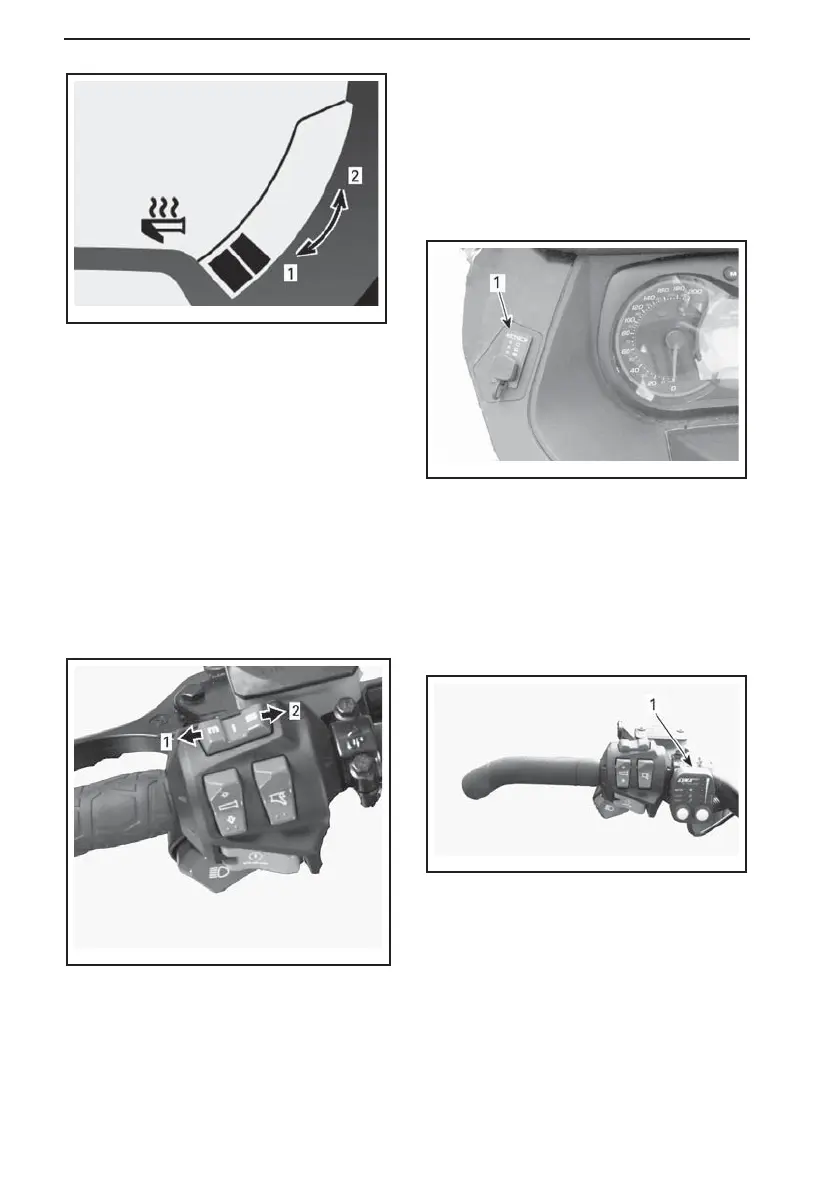

HEATING INTENSITY DISPLAY
1. Colder (Less heat)
2. Warmer (More heat)
Heated throttle lever will be in OFF po-
sition when there are no bars displayed
on the gauge.
Mode/Set Button
This button can be used instead of the
two buttons on top of the analog/d igital
gauge to facilitate gauge adjustments.
– When pressed left, it has the same
functions as the MODE (M ) button.
– When pressed right, it has the same
functions as the SET (S) button.
fmo2014-003-003_d
MULTIFUNC TION GAUG E
1. MODE function
2. SET function
9) Battery display /
Charging plug
Battery display / Ch arging plug is lo-
cated to the LH side of console.
The charging level is displayed with
LEDs.
fmo2016-003-001_b
1. Battery Display/Charging plug
10) Electronic Controlled
Suspension (ECS
2.1
)(If
Applicable)
The operator can adjust the comfort
and ride height by Electronic Con-
trolled Suspension (ECS
2.1
).
fmo2016-002-003_c
1. ECS
2.1
module
Refer to
REAR SUSPENSION ADJUST-
MENT
in the
TUNE YOUR RID E
sec-
tion
40
