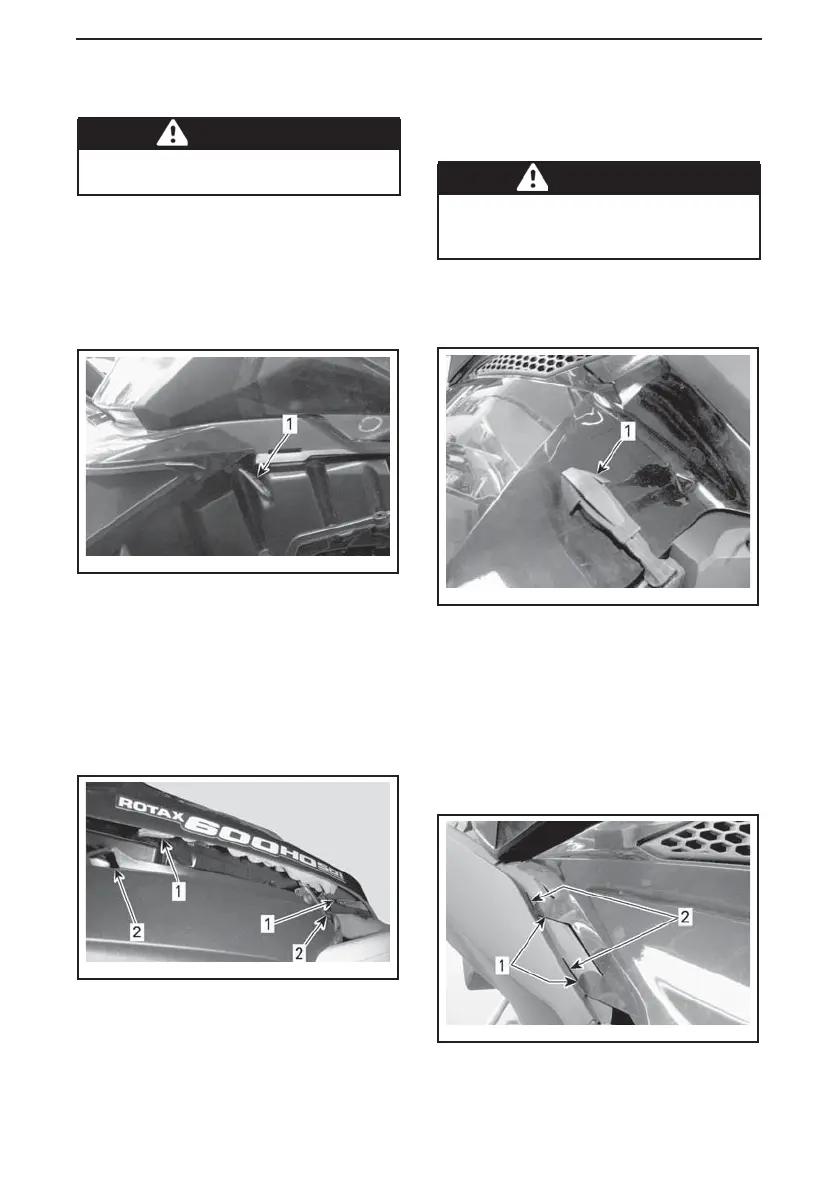

CONTROLS, INSTRUMENTS AND EQUIPMENT
25) Hood
WARNING
Never operate engine with hood
removed from vehicle.
Hood Removal
1. R emove upper side panels as ex-
plained below.
2. Unhook the rubber ties on both
sides.
mmo2009-004-038_a
1. Rubber tie
3. Slidehoodtowardsfronttofreethe
tabs from their slots.
Hood Installa tion
1. Engage the tabs located at front and
center of the hood into the bottom
pan slots.
mmo2009-004-039_a
TYPICAL
1. Tabs
2. Slots
2. Slide hood towards headlights until
it stops.
3. Hook the rubber ties.
26) Upper Side Panels
WARNING
Never operate engine with side
panels opened or removed from
vehicle.
Upper Side Panel Removal
1. Unhook the rubber tie.
mmo2009-004-040_a
1. Rubber tie
2. Lift the rear portion of panel to free
the plastic tab from the console.
3. Slide panel towards rear.
Upper S ide Panel Installation
1. Insert the panel lower tabs into the
bottom pan slots.
mmo2009-004-042_a
1. Panel lower tabs
2. Bottom pan slots
_______________
57
