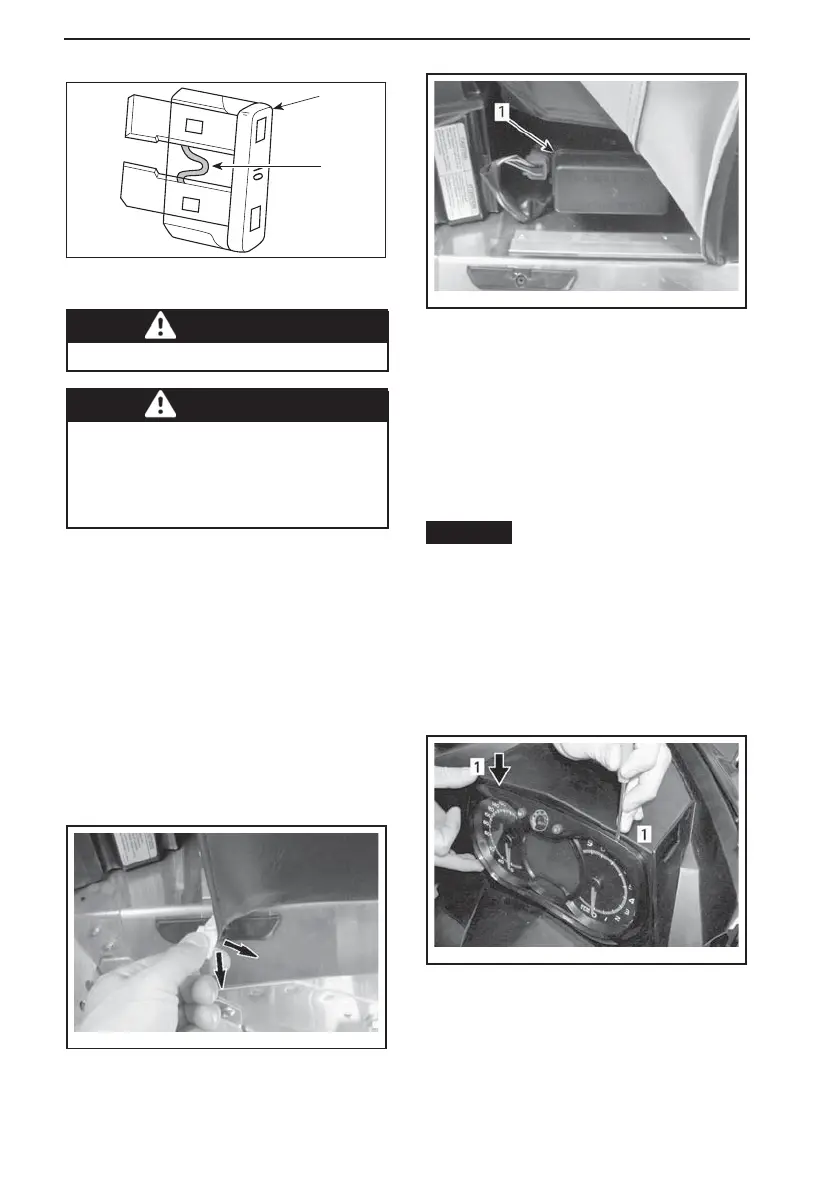

MAINTENANCE PROCEDURES
1
2
A15E0KA
1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of mal-
function should be determined
and corrected before restarting.
See an authorized Lynx dealer for
servicing.
Fuse Location
The fus e box is located behind the front
seat upholstery at the LH front lower
portion of seat.
Refer to the decal inside the fuse box
cover or the
SPECIFICATIONS
for fuse
identification.
To access the fuse box, carefully pull
seat upholstery out of the aluminum
extrusion by pulling the plastic strip
downwards and sideways at the same
time.
mmo2009-004-036_b
TYPICAL - PULL STRIP
mmo2009-004-037_a
1. Fuse box
Close upholstery by pushing the strip
back in the aluminium extrusion.
Lights
Always check light operation after bulb
replacement.
Headlights Bulb Replacement
NOTICE
Never touch glass portion
of an halogen bulb with bare fingers,
it shortens its operating life. If glass
is touched, clean it with isopropyl al-
cohol which will not leave a film on
the bulb.
1. By using a small screwdriver, re-
lease multifunction gauge locking
tabs.
mmo2007-009-061_a
1. Locking tab
2. Gently pull on multifunction gauge
and set aside.
98
